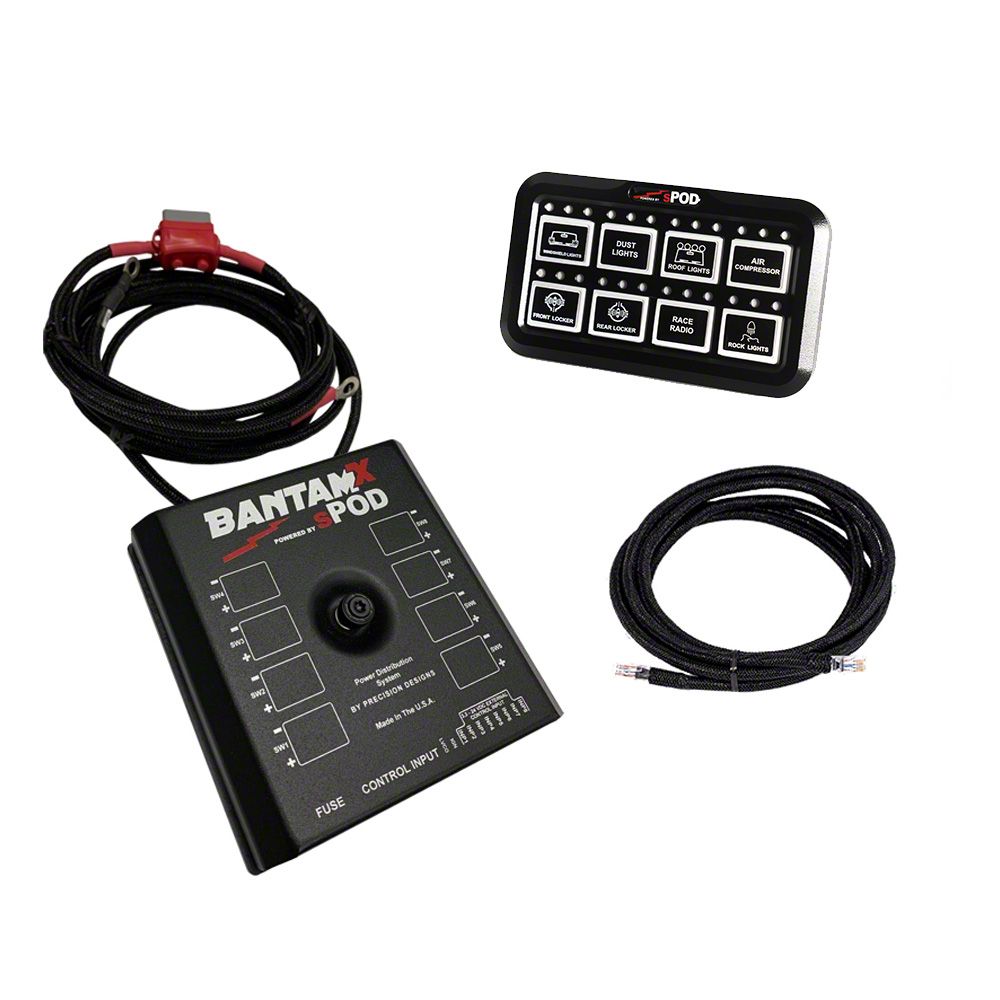

sPOD BantamX HD with 36-Inch Battery Cables (Universal; Some Adaptation May Be Required)
Item S173526
Our Price
$915.00
Military, Medical & First Responders
$45.75 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- _x000D_
- Fully Programmable, Digital Controlled System _x000D_
- 8 Circuits Rated At 30 Amps At 12.5 VDC Per Circuit _x000D_
- 16-Position Terminal Block For Easy Accessory Attachment _x000D_
- Two Controller Ports (RJ45) For Ethernet Cables _x000D_
- Integrated Low Voltage Cutoff Battery Protection With Optional Override _x000D_
- One ATM Mini-Style Fuse For LVCO Protection And Reset _x000D_
- Failsafe Self-Healing Fault Protection System From 1.5 To 30 Amps _x000D_
- Current-Sensing MOSFETs Controlled By A Microprocessor Without Fuses And Relays _x000D_
- 100 Amp In-Line Fuse Included _x000D_
- Nylon Braided Battery Cables With Hi-Strand Crosslinked Copper Wire And Silicone Jacket _x000D_
- Operates On 12VDC Or 24VDC _x000D_
- 8-Position Input Terminal Block For Output Control _x000D_
- Built-In Bluetooth Capabilities For Remote Control, Including Dimming, Strobe, And Switch Linking _x000D_
- Protection Against Overheating, Over-Current, Shorts, Reverse Polarity, And Field Collapse _x000D_
- Optional Ignition Control And Safety Lock-Out For Switches 1 And 2 _x000D_
- On-Demand Wireless Software Updates And Upgrades _x000D_
- HD Control Panel In Aluminum Billet Machined Housing With Silicone Tactile Switches _x000D_
- Silicone Buttons With Positive Touch Feedback _x000D_
- Compact Panel Dimensions: 2-7/8 W x 4-7/8 L x 1/2 Thick _x000D_
- Universal Back With Two Pressed-In 1/4-20 Studs For Flat Mounting _x000D_
- Standard Universal Articulating Mount Included _x000D_
- RJ45 Communication Jack For Ethernet Cable Connection _x000D_
- HD Panel Can Be Located Up To 25 Feet From Source _x000D_
- RGB Backlit Switches With Programmable Colors And Intensity _x000D_
- Backlight Adjustable Timer And Quick Shut-Off Feature _x000D_
- Panel Lock-Out Feature For Safety And Security _x000D_
- Legends Included For Switch Identification _x000D_
- Supports Additional HD Smart Controllers For Multiple Locations _x000D_
- Compatible With sPOD Mobile App For Programming And Control On iOS and Android _x000D_
- External Controller Compatibility With Third Party Devices Like Arduino And Raspberry Pi _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
Description
The BantamX will save hours of wiring & installation time! It is a small, 8-circuit (expandable) control system that provides a clean (one ethernet cable into the cab!) and safe way to power and control 12/24VDC accessories. Due to the small footprint of the BantamX, the placement options are endless! No cutting, fishing wires into the cab or tapping into the vehicle‘s electrical system. It’s the perfect over-all solution for all your aftermarket electrical accessories with options unmatched by anyone.
Fully programmable, digital controlled system
8 circuits rated at 30 amps at 12.5 VDC per circuit
16-position terminal block (easily attach accessories)
2 controller ports (RJ45) for Ethernet cables
Integrated low voltage cutoff (LVCO) battery protection w/ optional override
One ATM mini-style fuse for LVCO protection & reset
Failsafe self-healing fault protection system (from 1.5 to 30amps)
Current-sensing MOSFETs controlled by a microprocessor (no fuses & relays)
100amp in-line fuse
Nylon braided battery cables are hi-strand crosslinked copper wire with a silicone jacket
Operates on 12VDC or 24VDC
8-position input terminal block for controlling outputs
Built-in Bluetooth capabilities for remote control
Protection against: overheating, over-current, shorts, reverse polarity & field collapse
Ignition control and safety lock-out for switches 1 and 2 (optional)
On-demand wireless software updates/upgrades
Fully programmable, digital controlled system
8 circuits rated at 30 amps at 12.5 VDC per circuit
16-position terminal block (easily attach accessories)
2 controller ports (RJ45) for Ethernet cables
Integrated low voltage cutoff (LVCO) battery protection w/ optional override
One ATM mini-style fuse for LVCO protection & reset
Failsafe self-healing fault protection system (from 1.5 to 30amps)
Current-sensing MOSFETs controlled by a microprocessor (no fuses & relays)
100amp in-line fuse
Nylon braided battery cables are hi-strand crosslinked copper wire with a silicone jacket
Operates on 12VDC or 24VDC
8-position input terminal block for controlling outputs
Built-in Bluetooth capabilities for remote control
Protection against: overheating, over-current, shorts, reverse polarity & field collapse
Ignition control and safety lock-out for switches 1 and 2 (optional)
On-demand wireless software updates/upgrades
sPOD BXHDUNI36
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
