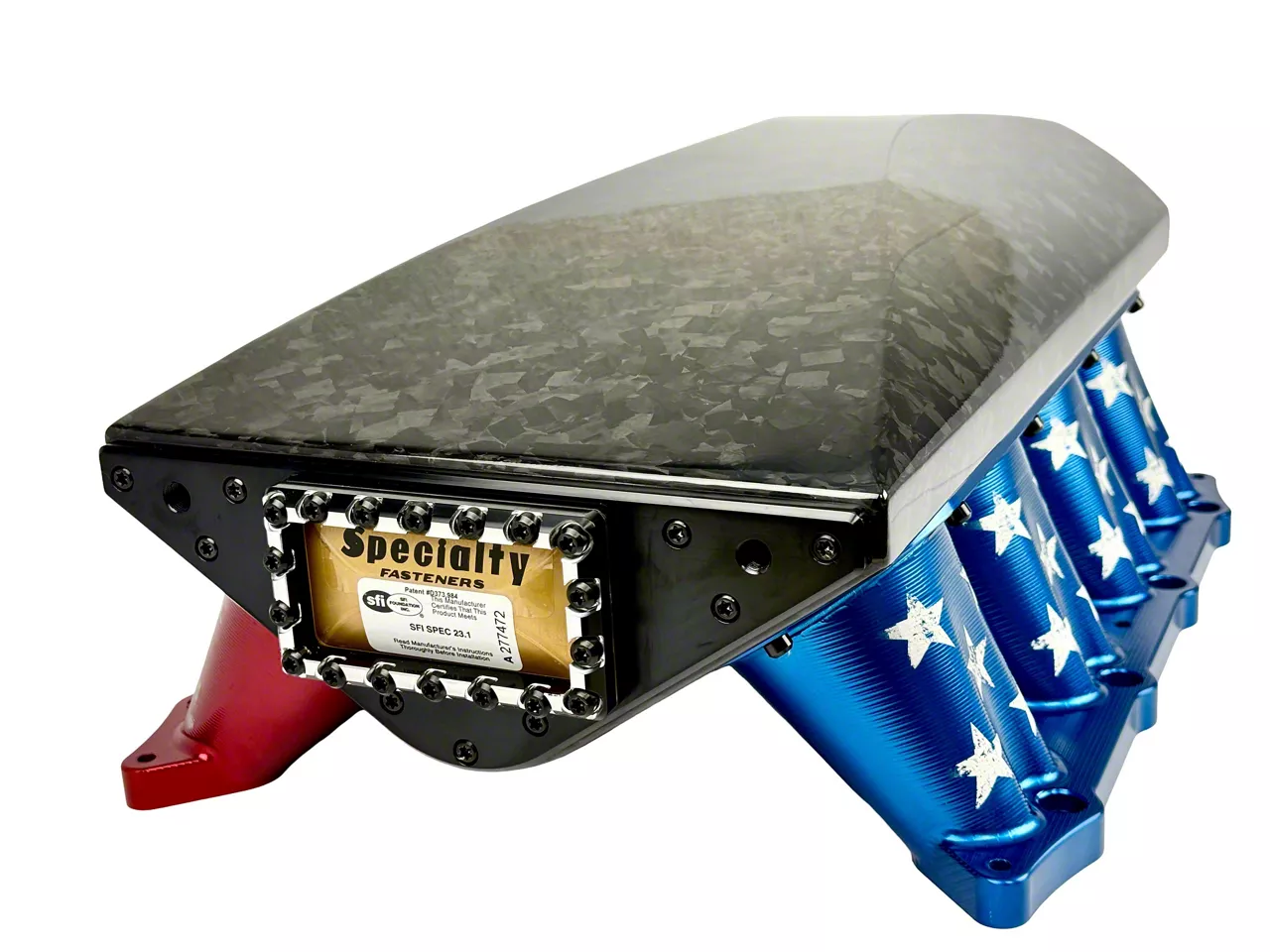

SPE Motorsport Intake Manifold with Stock Coyote Throttle Body Bolt Pattern; 3K Twill Carbon Fiber with Raw Billet Runner (11-20 5.0L F-150)Find parts that fit my vehicle

Item T654263
Product Image
New
Our Price

$4,000.00

Military, Medical & First Responders $200.00 Available in AT Cash Rewards.
Confirm Eligibility

Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Description, Q&A, Specs & Installation

      Description

      _x000D_ SPE Motorsport Carbon Fiber Intake Manifold- Fits 5.0L Coyote Engines (2011–2023)_x000D_

      _x000D_

      After two years of intense development, SPE Motorsport is proud to release the most advanced intake manifold available for the Coyote platform. This isn’t just another pretty carbon plenum it’s a purpose-built, modular system designed to outperform and outlast anything in its class.

      _x000D_

      Our mono-plenum design coupled with our patent pending tech eliminates the need for epoxy or bonded joints. Instead, every component is 100% bolt-together using precision-machined interfaces and custom Torx-drive titanium hardware. This allows for easy disassembly, future changes, and unmatched serviceability.

      _x000D_

      At just 15.5 pounds, it weighs much less than the competition:

      _x000D_
        _x000D_
      • _x000D_ Plazmaman: 27.5 lbs
        _x000D_
        • _x000D_
      • _x000D_ Sean’s Custom Alloy: 22.5 lbs_x000D_
        • _x000D_
      • TTR Carbon intake: 20 lbs

        • _x000D_
      _x000D_

      This is one of the only aftermarket intake manifolds rated to 130 PSI of operating pressure— built to handle serious boost. It’s topped off with a lifetime warranty and proudly engineered, tested, and manufactured in the USA.

      _x000D_

      _x000D_
      _x000D_

      _x000D_

      Key Specs:

      _x000D_
        _x000D_
      • _x000D_ Billet 5-axis CNC-machined intake runners
        _x000D_
        • _x000D_
      • _x000D_ Carbon fiber mono-plenum construction
        _x000D_
        • _x000D_
      • _x000D_ Built-in burst panel for overpressure safety
        _x000D_
        • _x000D_
      • _x000D_ Optimized runner and plenum volume for boosted applications
        _x000D_
        • _x000D_
      • _x000D_ 130 PSI certified operating pressure
        _x000D_
        • _x000D_
      • _x000D_ O-ring seals
        _x000D_
        • _x000D_
      • _x000D_ Custom Torx-drive titanium fasteners
        _x000D_
        • _x000D_
      • _x000D_ Multiple throttle body options:
        _x000D_
          _x000D_
        • _x000D_ Factory Coyote
          _x000D_
          • _x000D_
        • _x000D_ 2020+ GT500
          _x000D_
          • _x000D_
        • _x000D_ LS 102mm cable style_x000D_
          • _x000D_
        • More to come!
          • _x000D_
        _x000D_
        • _x000D_
      _x000D_

      FITS:

      _x000D_
        _x000D_
      • 2011-2023 Mustang
        • _x000D_
      • 2016-2020 Mustang GT350
        • _x000D_
      • 2020-2021 Mustang GT500
        • _x000D_
      • 2011-2020 F150
        • _x000D_
      _x000D_



      SPE Motorsport SPE-C100193

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Tech Specs

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My F-150

      • 5.0L V8 - 11, 12, 13, 14, 15, 16, 17, 18, 19, 20
