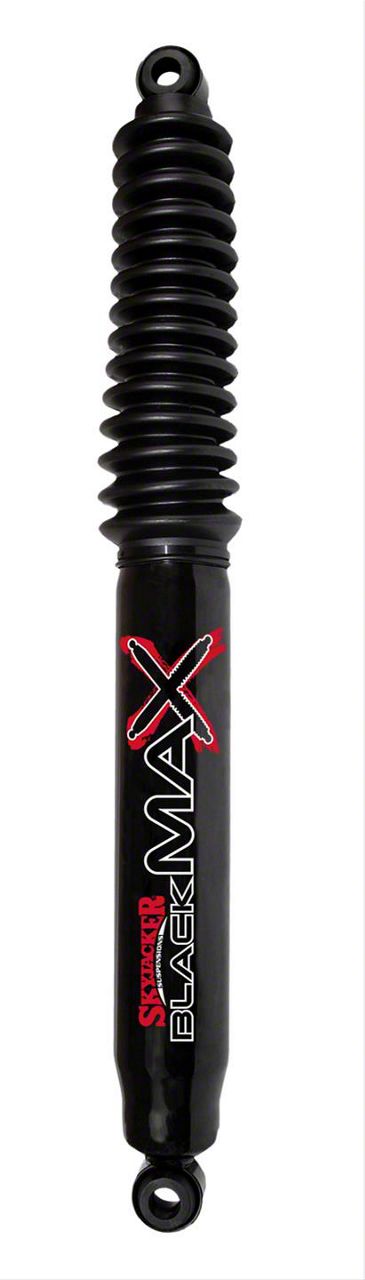

SkyJacker Black MAX Rear Shock Absorber for 3 to 6-Inch Lift (07-10 4WD Sierra 2500 HD)

Item HG7766
Shop Owners Save More! Sign up for our dealer program

    Product Information

    Features, Description, Reviews, Q&A, Specs & Installation

    Features & Specs

    • Black MAX Twin Tube Foam Cell Hydraulic Shock Absorber
    • Increased Fluid Capacity With Foam-Cell Technology For Oil Expansion Compensation
    • Foam-Cell Insert Compresses To Maintain Consistent Performance Throughout Operating Temperature Range
    • Foam-Cell Design Eliminates Air Inside Shock Allows Mounting In Any Direction
    • Arc-Welded End Mounts And Select Specific Valving
    • Weight 6.9 Lbs
    • Dimensions 24 × 3 × 3 In
    • Extended Length 29.83 In
    • Collapsed Length 17.36 In
    • Upper Mounting Code ES34B
    • Lower Mounting Code ES34B
    • Shock Type Advanced Foam Cell Hydraulic
    • Stroke 12.47 In
    • Shaft Diameter 14mm
    • Body Diameter 2.375 In
    • Shock Does Not Work With GM Auto Ride Equipped Models
    • Fits 07-10 4WD Sierra 2500 HD

    Description

    Shock Absorber Performance. The SkyJacker Black MAX Rear Shock Absorber is engineered to deliver consistent damping performance under demanding conditions. It effectively controls suspension movement, enhancing ride quality and vehicle handling, especially on lifted trucks.

    Construction and Appearance. This shock features an advanced twin tube design with foam cell technology that compensates for oil expansion, ensuring optimal function even when hot. It uses arc-welded end mounts for durability and is finished with a protective coating to resist wear and corrosion.

    Installation. Installation is suitable for vehicles using the specified mounting codes. Ensure the shock absorber is mounted according to manufacturer guidelines using existing mounting points. No reference to drilling requirements or warranty information is provided.

    Application. Designed specifically for 07-10 4WD Sierra 2500 HD models. Note that it is not compatible with GM Auto Ride equipped versions.

    SkyJacker B8536

    CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

    4.6

    Customer Reviews (109)

    Questions & Answers

    No questions about this product yet. Ask the First Question

    Will It Fit My Sierra 2500

    • 6.0L V8 - 07, 08, 09, 10
    • 6.6L V8 Duramax - 07, 08, 09, 10
