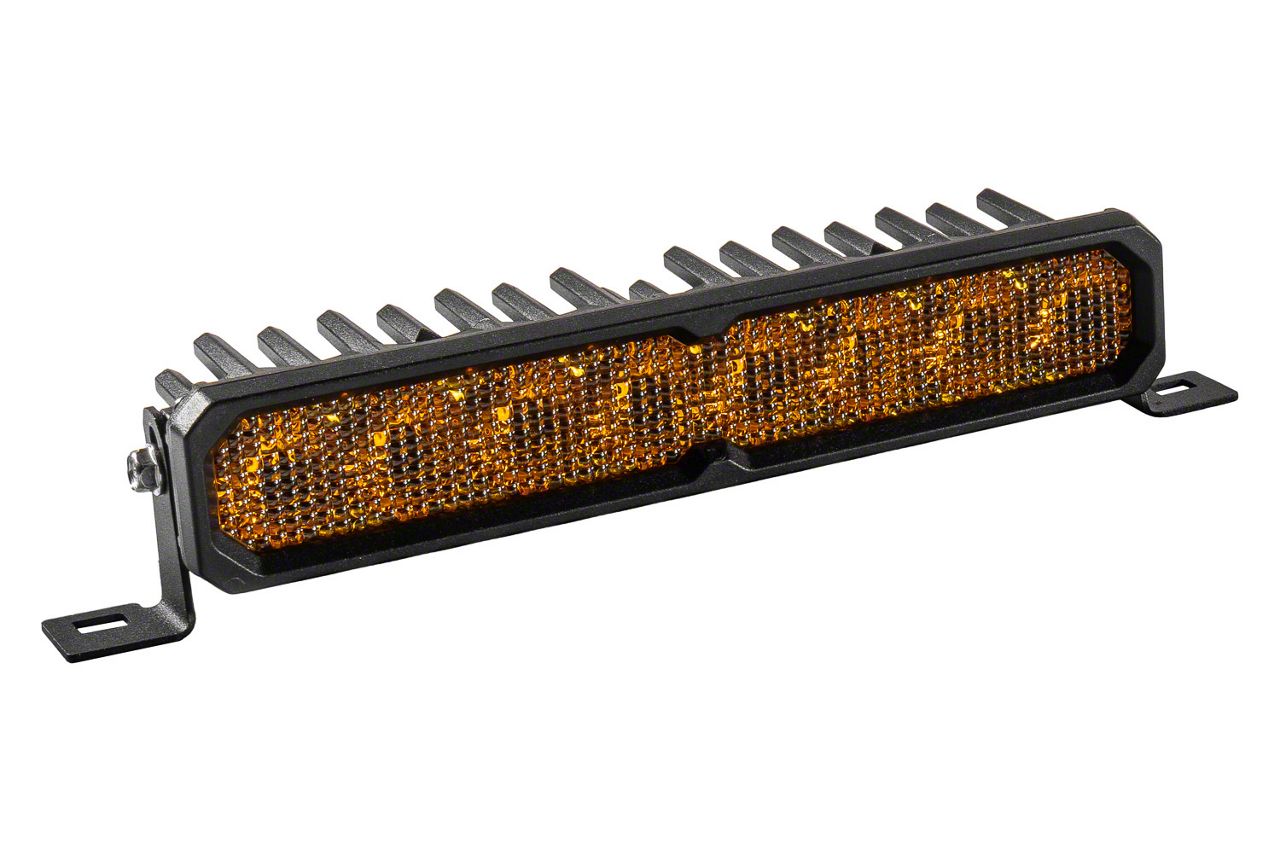

Diode Dynamics SS10 Max Single Row LED Light Bar with Amber Backlight; Yellow Flood (Universal; Some Adaptation May Be Required)
Item S220518
Our Price
$449.95
Military, Medical & First Responders
$22.50 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features & Specs
- _x000D_
- Patented Tir Optics For Maximum Efficiency And Output _x000D_
- Upgraded Beam Patterns Engineered For Real-World Performance _x000D_
- True Amber Backlight Provides Unique Accent Lighting _x000D_
- Available In Sport, Pro, And Max Power Levels _x000D_
- Durable Aluminum Housing With Astm-Standard Powdercoat Finish _x000D_
- Ip69k Waterproof Rating For Extreme Durability _x000D_
- Limited Lifetime Warranty Included _x000D_
- Made In Usa With Globally Sourced Materials _x000D_
- Color Temperature Of 3000k _x000D_
- Beam Angles Include Combo/Driving 60x30 Degrees, Sae Driving 20x12 Degrees, Flood 100x80 Degrees, And Spot 8x8 Degrees _x000D_
- Sport Power Level Uses 40 Watts, Pro Uses 51.5 Watts, Max Uses 61 Watts _x000D_
- Operating Voltage Range From 9 To 30 Volts _x000D_
- Current Draw At 12.8 Volts Ranges From 3.13 To 4.77 Amps Depending On Model _x000D_
- Polarity Specific Connection _x000D_
- Operating Temperature -40c To 85c (-40f To 185f) _x000D_
- Uses Osram Boost HX, Osram Ostar Projection Compact, Or Lumileds Automotive Grade Led Emitters _x000D_
- Deutch DT Input Connector _x000D_
- Constructed With Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets _x000D_
- Passive Cooling With Heatsink _x000D_
- Dimensions Are 2.01 Inches By 10.24 Inches By 2.37 Inches _x000D_
- Includes One LED Light Bar, One Wire Pigtail, Universal Bracket Set _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Light Bar Width | 10 to 19 Inch |
Description
High-Performance Illumination. The Diode Dynamics SS10 Max Single Row LED Light Bar with Amber Backlight; Yellow Flood is designed to deliver powerful and focused lighting for off-road and auxiliary automotive use. It provides superior visibility with optimized yellow light, ideal for cutting through fog, rain, or snow, ensuring safer driving conditions in adverse weather. This light bar combines advanced optics and LED technology to maximize usable light output with minimal glare.
_x000D__x000D_Construction and Appearance. Crafted with durable aluminum housing featuring an ASTM-standard powdercoat finish, this light bar is engineered to withstand harsh environments. It integrates a fully encapsulated design with polycarbonate lenses and stainless steel brackets, ensuring long-lasting reliability. The amber backlight enhances aesthetics and visibility while the overall structure is IP69K rated for waterproofing and high-pressure washing tolerance.
_x000D__x000D_Installation. Installation requires basic tools and can typically be completed within 30 to 60 minutes. Mounting uses included universal brackets with no major modifications or drilling needed in most cases, simplifying the setup process for most vehicles.
_x000D__x000D_Warranty. This product is backed by a limited lifetime warranty that covers defects and ensures lasting performance throughout its service life.
_x000D__x000D_Application. Designed as a universal fit, this light bar requires some adaptation to fit different vehicles and mounting situations depending on the specific setup.
Diode Dynamics DD8212
