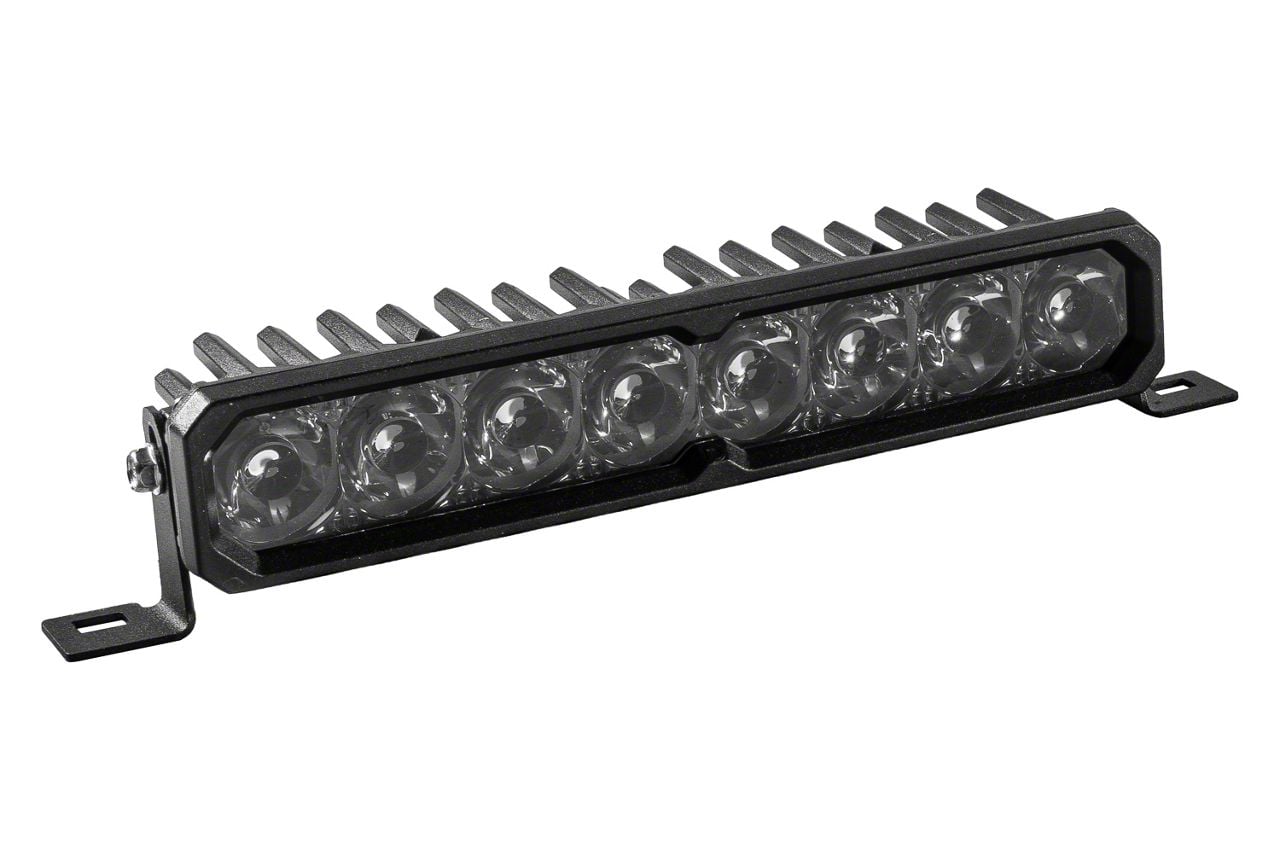

Diode Dynamics SS10 Max Single Row LED Light Bar with Amber Backlight; White Spot (Universal; Some Adaptation May Be Required)

Item S220519
Our Price

$449.95

Military, Medical & First Responders $22.50 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program

      Product Information

      Features, Description, Q&A

      Features & Specs

        _x000D_
      • Patented TIR Optics For Maximum Efficiency And Output
      • _x000D_
      • Upgraded Beam Patterns Engineered For Real-World Performance
      • _x000D_
      • Modern Welcome Sequence And Selectable Backlight With SmartSelect Technology
      • _x000D_
      • Available In Sport, Pro, And Max Power Levels
      • _x000D_
      • Durable Aluminum Housing With ASTM-Standard Powdercoat Finish
      • _x000D_
      • Built For Extreme Conditions With IP69K Waterproof Rating
      • _x000D_
      • Limited Lifetime Warranty
      • _x000D_
      • Made In USA With Globally Sourced Materials
      • _x000D_
      • Available Beam Patterns: Combo/Driving, SAE Driving, Flood, Spot
      • _x000D_
      • Color Temperature: 6000K White
      • _x000D_
      • Power Range: 40W (Sport) To 61W (Max)
      • _x000D_
      • Operating Voltage: 9-30V
      • _x000D_
      • Current Draw: Sport 3.13A, Pro 4.00A, Max 4.77A (At 12.8V)
      • _x000D_
      • Operating Temperature Range: -40C To 85C (-40F To 185F)
      • _x000D_
      • High-Quality LED Emitters: Osram Boost HX, Osram Ostar Projection Compact, Lumileds Automotive Grade
      • _x000D_
      • Connector Type: Deutsch DT Input
      • _x000D_
      • Materials Include Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets
      • _x000D_
      • Passive Cooling With Heatsink
      • _x000D_
      • Dimensions: 2.01" Height x 10.24" Width x 2.37" Depth
      • _x000D_
      • Includes One LED Light Bar, One Wire Pigtail, Universal Bracket Set
      • _x000D_
      • Fits Universal; Some Adaptation May Be Required
      • _x000D_

      Description

      Superior Lighting Performance. The Diode Dynamics SS10 Max Single Row LED Light Bar with Amber Backlight; White Spot is an advanced lighting solution designed for professional and enthusiast use. It provides exceptional illumination with highly focused beam patterns, ideal for off-road, rally, or auxiliary high beam applications where maximum visibility and precision are critical.

      _x000D__x000D_

      Construction and Appearance. This LED light bar features a robust aluminum housing finished with an ASTM-standard powdercoat to withstand harsh environmental conditions. The polycarbonate lens protects proprietary TIR optics that deliver maximum light output with reduced glare. The inclusion of a fully illuminated amber backlight adds both functional and aesthetic appeal.

      _x000D__x000D_

      Installation. Installation is straightforward and generally requires basic tools with no complex modifications or extensive drilling. The universal mounting brackets allow flexible placement for a wide range of vehicles.

      _x000D__x000D_

      Warranty. This product is backed by a limited lifetime warranty ensuring long-lasting reliability and customer confidence.

      _x000D__x000D_

      Application. Designed to fit universally, this light bar may require some adaptation depending on vehicle configuration and mounting preference.

      Diode Dynamics DD8213
