Find LED Light Bars for your Silverado 1500

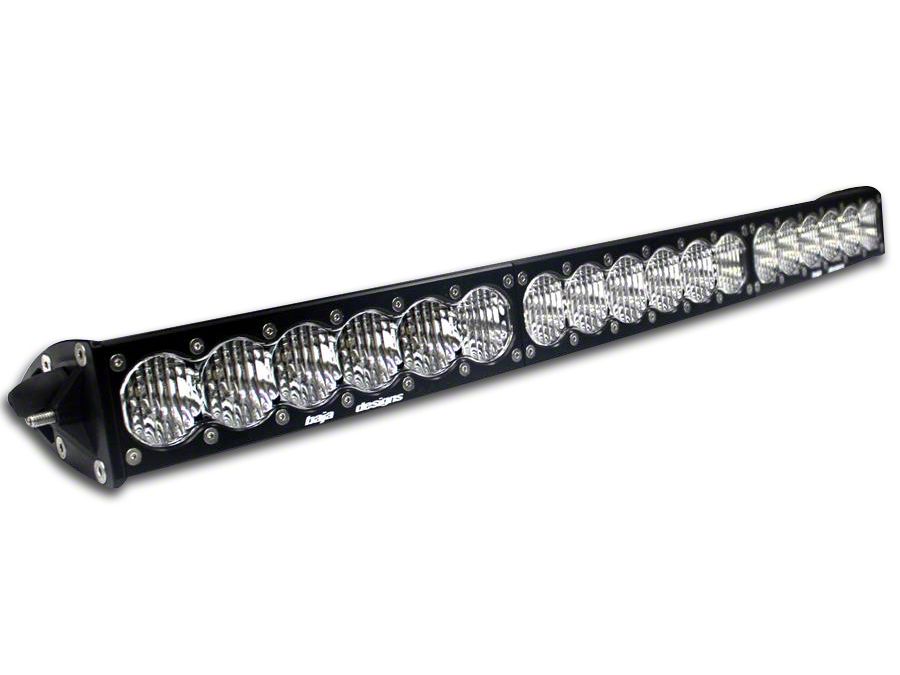

Baja Designs 30-Inch OnX6 Arc LED Light Bar; Wide Driving Beam (Universal; Some Adaptation May Be Required)

Item S105317
Product Image
162 Reviews of Baja Designs
Our Price

$1,338.95 each

Military, Medical & First Responders $66.95 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

      • Depth 4.29 Inches
      • Height 2.69 Inches
      • Length 30 Inches
      • Weight 11.45 Pounds
      • Amperage Rating 21.7 Amps High 17.1 Amps Low
      • Average Rated Life 49,930 Hours
      • Beam Pattern Wide Cornering
      • Bezel Material Billet Machined Aluminum
      • Brightness 32,070 Lumens High 25,610 Lumens Low
      • Description Arc Wide Cornering Clear
      • Housing Color Black
      • Housing Material Aircraft Grade Aluminum With Mil-Spec Hard Anodize
      • Lens Color Clear
      • Lens Material Hardcoated Polycarbonate
      • Light Quantity 1
      • Lighting Modes High Beam Low Beam
      • Lighting Quantity 18 LEDs
      • Lighting Technology LED
      • Lighting Type Forward Projecting
      • Mounting Hardware Description Mounting Brackets
      • Mounting Hardware Included Yes
      • Mounting Hardware Material Stainless Steel
      • Overvoltage Protection Built-In
      • Product Type OnX6 Plus 30 Inch Arc LED Light Bar
      • Wattage 278 Watts High 222 Watts Low
      • Wiring Harness Description Hi-Low Dongle
      • Wiring Harness Included No
      • Standards Compliance Durability Exceeds Mil-Std810G Mil-Spec Testing
      • Standards Compliance Impact Resistance IK10 Compliant Mechanical Impact Testing
      • Standards Compliance Water Resistance IP69K Waterproof Up To 9 Feet Pressure Washable
      • Fits Universal Some Adaptation May Be Required

      Description

      Premium Wide Cornering LED Light Bar. The Baja Designs 30-Inch OnX6 Arc LED Light Bar features a wide driving beam engineered to provide enhanced peripheral illumination ideal for navigating tight or winding roads and trails. It delivers a powerful forward-projected light with a broad spread, significantly improving visibility and safety across various driving conditions.

      Construction and Appearance. Crafted from aircraft grade aluminum and finished with Mil-Spec hard anodize, this light bar offers exceptional corrosion resistance and durability. It includes a billet machined aluminum bezel and a hardcoated polycarbonate clear lens, designed to combine strength with optical clarity while maintaining a sleek black appearance.

      Installation. Installation is straightforward with included stainless steel mounting brackets and hardware. The design supports a universal fit adaptable to a wide range of vehicle applications and does not require drilling for setup.

      Warranty. This product is backed by a limited lifetime warranty, ensuring comprehensive protection on your purchase.

      Application. Suitable for universal applications; some adaptation may be required.

      Baja Designs 523004

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 2 Hours

      Difficulty Level:

      Simple installation for anyone.

      Installation Guides

      What's in the Box

      • (1) 30” Arc Series LED Light Bar
      • Mounting Brackets
      4.7

      Reviews of Baja Designs Lights Products (162)

      Questions & Answers

      No questions about this product yet. Ask the First Question
