      Product Information

      Features, Description, Q&A

      Features

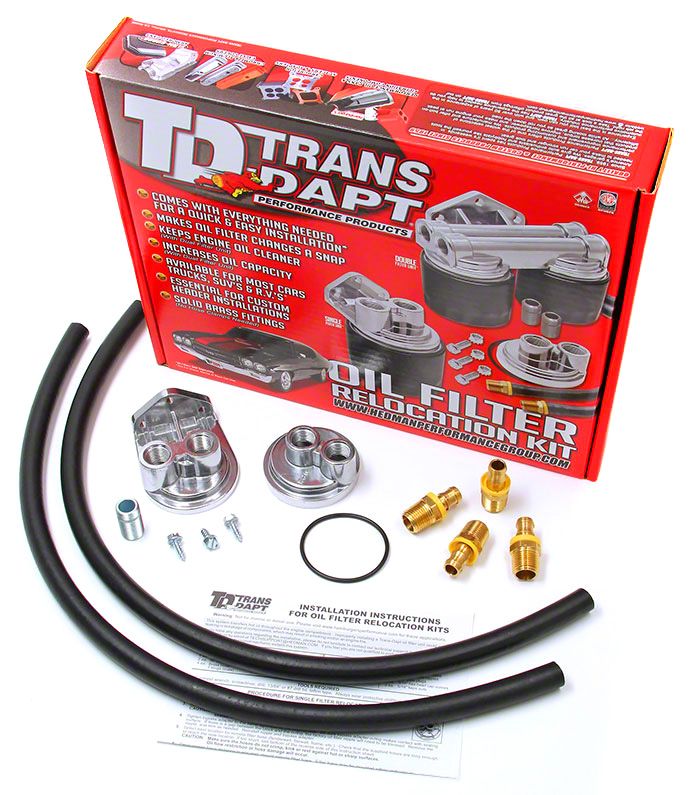

      • Contents Oil Filter Bypass Adapter, Remote Single Oil Filter Base, 2- 30 In. Pre-Assembled Hoses With Fittings, Mounting Hardware & Instructions
      • Filter Bypass Style Standard Port Filter Bypass
      • Filter Nipple Thread Size 13/16 In.-16
      • Vehicle Oil Filter Nipple Size 13/16 In.-16
      • Vehicle Oil Filter Flange ID 3-3/16 In.
      • Vehicle Oil Filter Flange OD 3-7/16 In.
      • Important Not For Diesel, Marine Or Race Use
      • Notes Single Oil Filter Relocation System; 3-3/16 In. I.D. And 3-7/16 In. O.D. Bypass Flange W/ 13/16 In.-16 Threads
      • Kit Type Single Filter Kits
      • Oil Filter Compatibility Fram PH8A Or Equivalent
      • Port Size 1/2 In. NPT
      • Materials Cast Aluminum
      • Port Style Vertical
      • Product Details Fits Engine Blocks Designed To Accept Oil Filters With A 13/16 In.-16 Thread And 3-5/16 In. Diameter Sealing O-Ring
      • Additional Details Uses Trans-Dapt #1156 Compact Oil Filter, Fram PH8A, Or Equivalent Filter
      • Material Cast Aluminum
      • Remote Base Filter Size Fram PH8A Or Equivalent
      • Fitting Material Brass
      • Fitting Type Hose Barb
      • Fitting Quantity 4
      • Hose Connection Type Push Lock
      • Hose OD 3/4 In.
      • Hose Length 30 In.
      • Package Contents Oil Filter Bypass Adapter, Remote Oil Filter Base, 2 Hoses, 4 Fittings, 4 Hose Ferrules Mounting Hardware
      • Bolt Hole Quantity 3
      • Fitting Finish Raw
      • Fitting Thread 1/2 In. NPT
      • Hose Bust Pressure 1200 Psi
      • Hose ID 1/2 In.
      • Hose Material Flame Resistant Nitrile/Rubber
      • Hose Temperature Range -40 F To +212 F
      • Hose Thickness 0.125 In.
      • Hose Type Reinforced 1 Fiber Band
      • Mount Material Cast Aluminum
      • Performance Yes
      • Race Only No
      • Single Or Dual Filter Single
      • O.E. Replacement No
      • Fits 01-19 6.6L Duramax Sierra 2500 HD

      Description

      Single Oil Filter Relocation. The Single Oil Filter Relocation Kit; 13/16-Inch x -16 Threads is designed to move the oil filter for easier access and improved maintenance on compatible engines. It enables a remote filter setup that is more convenient for oil changes and inspection, particularly in applications with limited engine bay space.

      Construction and Appearance. Crafted from durable cast aluminum, this kit features brass fittings and flame resistant nitrile rubber hoses. The components are built to withstand high pressure and temperatures while presenting a raw finish suited for performance applications.

      Installation. Installation is straightforward and requires no drilling, utilizing existing mounting points. The pre-assembled hoses and included hardware simplify setup for professional or experienced automotive enthusiasts.

      Application. Specifically fits the 01-19 6.6L Duramax Sierra 2500 HD, designed for gasoline-powered engines with specific filter thread and flange dimensions.

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Sierra 2500

      • 6.6L V8 Duramax - 01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19
