How to Install Rough Country 54 in. Curved LED Light Bar Upper Windshield Mount Brackets (04-14 All) on your Ford F-150

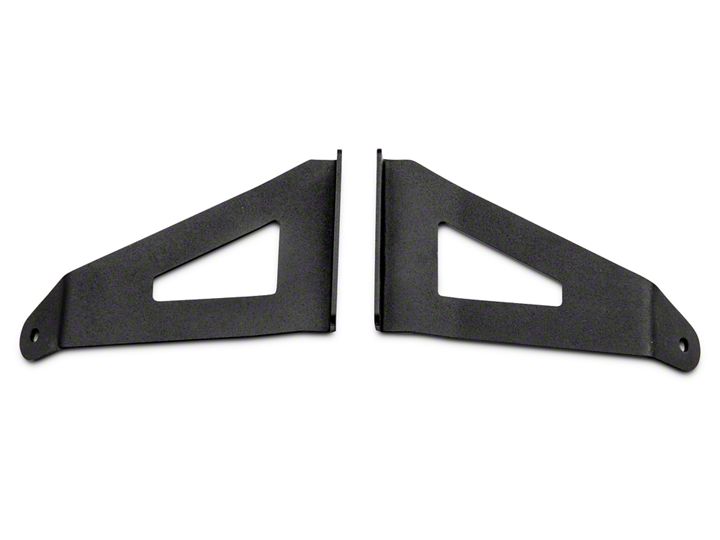

Driver Bracket (1)
Passenger Bracket (1)
Gaskets (2)
3/16” Rivets (7)

1. Install the gaskets on the back side of the light brackets. Open the driver door and measure 4.5” from the top of the windshield. Mark the position of the light bracket. See Photo 1.
2. Next hold the light bracket in position and drill the three holes through the sheet metal with a 3/16” drill bit as shown in Photo 2. *Note* May want to place a piece of tape on the drill bit 1/2” from the end for a depth gage. Drill-ing to far will damage the outside painted surface of the A-pillar.

3. Use the supplied 3/16” rivets to secure the light brackets. See Photo 3. Repeat steps on the driver side.
4. Install the Led Light with the supplied instructions. See Photo 4.
