Installation Time
(approx) a Day
Difficulty Level:
Mechanical expertise or professional installation required.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details
ReadyLIFT 6-Inch MAX Suspension Lift Kit with Falcon 3.3 Struts and Shocks (19-24 4WD RAM 1500 w/o Air Ride, Excluding TRX)Find parts that fit my vehicle
Item R175432
Our Price
$5,249.95 kit
Military, Medical & First Responders
$262.50 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- All-New 6” MAX3.3 Suspension Systems Deliver Unmatched Performance, Control, And Capability
- Specifically Engineered With Falcon 3.3 Series Struts And Shocks
- 3.3 Fast Adjust Dampers Provide Wide Range Of Adjustability With Two Separate Knobs To Tune To Preference
- 3-Position Fast Adjust Knob Offers Soft, Custom, And Firm Compression Settings
- Soft Mode Allows Partial Bypass Of Main Piston For Softer Ride
- 8-Position Micro Adjust Dial Enables Refined Damping Adjustments
- Reservoir Design Increases Nitrogen To Oil Ratio For Consistent Damping Over Wide Temperature Ranges
- DOM Tube Steel Upper Control Arms With Proprietary Heavy-Duty High-Angle Ball Joint
- Heavy-Duty Fabricated Steel Components Using 3/16” And 1/4” Steel Plate
- Full-Coverage Differential Skid Plate Made From 3/16” Steel Plate
- Hard Anodized Large Bore 6061-T6 Aluminum Shock Body For Impact And Corrosion Resistance
- Increased Oil Volume For Consistent Performance
- Volume Optimized Damping (VOD) With Digressive Linear Piston For Reduced Body Roll And Bottom Out
- Red Line High VI Shock Oil Ensures Consistent Performance From -50°F To 450°F
- Tire Size Compatibility: 37x12.50R20 With 20x9” 0 Offset Wheel
- Max Tire With Trimming 37x12.50” With 20x10” -18 Offset Wheel
- Not Compatible With Adjustable Models Equipped With Air Suspension Or Ram TRX
- Does Not Fit Ram 1500 With Factory 22” Wheels Or 18” Wheels
- Kit Includes Front And Rear Cross Members, Driver And Passenger Knuckles, Rear Coil Springs, Hardware Pack, Component Kit, Falcon 3.3 Coilovers Front Left And Right, Falcon 3.3 Dampers Rear Left And Right, And Upper Control Arm Kit
- Installation Requires Alignment, Headlamp Aim, And Possible ADAS Recalibration
- Estimated Installation Time Approximately 12 Hours
- Fits 19-24 4WD RAM 1500 W/O Air Ride, Excluding TRX. Not Compatible With Factory 22” Wheels Due To Larger Wheel Bearing Assembly Requirement
| Brand | ReadyLIFT |
| Lift Height | 6.00 Inch |
| Lift Kit Type | Suspension Lift |
| Lift Kit Max Tire Size | 37 Inch |
| Brand of Shocks | Teraflex |
| Rear Lift Type | Coilover |
| Shock Style | Reservoir |
Description
Performance Suspension Upgrade. The ReadyLIFT 6-Inch MAX Suspension Lift Kit with Falcon 3.3 Struts and Shocks delivers superior lift, control, and enhanced capability for off-road and on-road driving. This system improves ride quality and handling by allowing customizable damping adjustments to match specific terrain and driver preferences, providing a tailored driving experience.
Construction and Appearance. Built with hard anodized large bore 6061-T6 aluminum shock bodies for superior impact resistance and corrosion protection, this kit features heavy-duty fabricated steel components and DOM tube steel upper control arms with proprietary high-angle ball joints. A full-coverage differential skid plate is included to protect key drivetrain components, enhancing durability under harsh conditions.
Installation. Installation of this suspension system is moderately complex and recommended to be performed by a certified mechanic. The process typically requires approximately 12 hours and includes necessary vehicle alignment, headlamp aiming, and possible ADAS recalibration to ensure proper function and safety.
Application. Designed specifically for 19-24 4WD RAM 1500 models without air suspension, excluding the TRX variant. Not compatible with vehicles equipped with factory 22" or 18" wheels due to bearing and knuckle assembly differences.
ReadyLIFT 42-19640
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

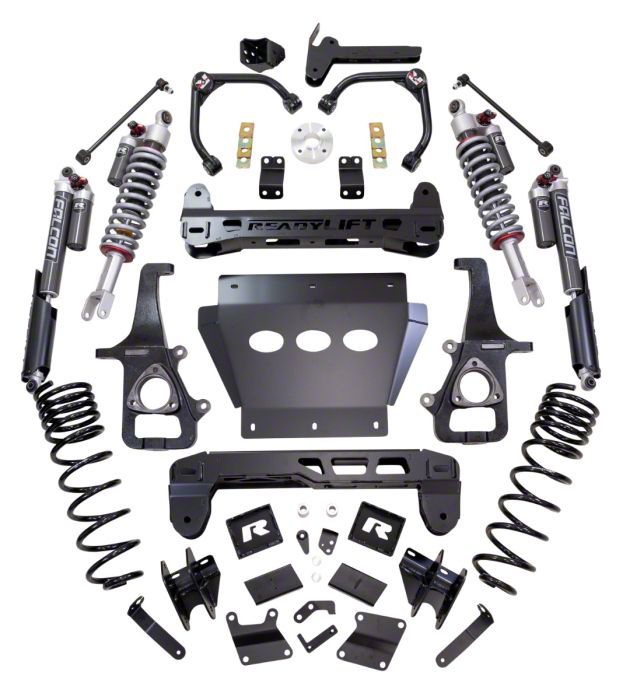

What's in the Box
- Front Cross Member
- Driver Knuckle
- Passenger Knuckle
- Rear Cross Member
- Rear Coil Spring
- Hardware Pack
- Component Kit
- Falcon 3.3 Coil-Over Front Driver and Passenger Side
- Falcon 3.3 Damper Rear Driver and Passenger Side
- RAM 1500 UCA Kit
