Find Shocks & Struts for your Sierra 2500

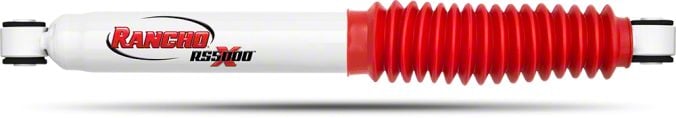

Rancho RS5000X Rear Shock for 5-Inch Lift (07-10 Sierra 2500 HD)Find parts that fit my vehicle

Item HG28739
Product Image
281 Reviews
Our Price

$70.30

Military, Medical & First Responders $3.52 Available in AT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • New
        • _x000D_
      • White Color
        • _x000D_
      • Telescopic Type
        • _x000D_
      • No Mounting Hardware Included
        • _x000D_
      • 31.97 Inches Extended Length
        • _x000D_
      • 13.28 Inches Shock Stroke
        • _x000D_
      • Loop Bushing And Sleeve Mount - 14MM Sleeve ID X 1.11/16 Inches Sleeve OAL For Both Upper And Lower Mount
        • _x000D_
      • Boot Included
        • _x000D_
      • Gas Charged
        • _x000D_
      • 2.25 Inches Body Diameter
        • _x000D_
      • 18.69 Inches Compressed Length
        • _x000D_
      • No Coil Over Springs Included
        • _x000D_
      • Painted Finish
        • _x000D_
      • Nitrocarburized Shaft Material
        • _x000D_
      • Center Of Loop Shock Absorber Rod End Measuring Point
        • _x000D_
      • Center Of Loop Shock Absorber Body End Measuring Point
        • _x000D_
      • Steel Body Material
        • _x000D_
      • 0.622 Inches Rod Diameter
        • _x000D_
      • White Body Color
        • _x000D_
      • Steel Cylinder Material
        • _x000D_
      • 2.25 Inches Cylinder Outside Diameter
        • _x000D_
      • Twin Tube Internal Construction Type
        • _x000D_
      • Performance Grade Type
        • _x000D_
      • No Spring Included
        • _x000D_
      • White Cylinder Color
        • _x000D_
      • No Adjustable Damping
        • _x000D_
      • No Adjustable Rebound
        • _x000D_
      • Dust Shield Included
        • _x000D_
      • Rubber Dust Shield Material
        • _x000D_
      • No Internal Rebound Spring
        • _x000D_
      • No Remote Reservoir
        • _x000D_
      • No Air Adjustable
        • _x000D_
      • No Bladder(s) Included
        • _x000D_
      • No Bladder Heavy Duty Crimping Rings Included
        • _x000D_
      • No Strut Mount Insulator(s) Included
        • _x000D_
      • No Bladder Sleeve(s) Included
        • _x000D_
      • No Coil Spring Insulator(s) Included
        • _x000D_
      • No Includes Bump Stop
        • _x000D_
      • 2.99 Inches Dust Shield Diameter
        • _x000D_
      • LS92 Upper Mount Code
        • _x000D_
      • LS92 Lower Mount Code
        • _x000D_
      • No Hydraulic Lockout
        • _x000D_
      • 1.37795 Inches Shock Absorber Bore Size
        • _x000D_
      • Yes Internal Rebound Bumper
        • _x000D_
      • Progressive Valving Type
        • _x000D_
      • No Adjustable Compression
        • _x000D_
      • No Adjustable Ride Height
        • _x000D_
      • No Self-Leveling
        • _x000D_
      • Passive Suspension
        • _x000D_
      • Painted Cylinder Finish
        • _x000D_
      • 0 Inches Maximum Ride Height Lowering Distance
        • _x000D_
      • 0 Inches Maximum Ride Height Raising Distance
        • _x000D_
      • No Parts Pack(s)
        • _x000D_
      • No Spring Isolators Included
        • _x000D_
      • No Spring Seat Included
        • _x000D_
      • Red Dust Shield Color
        • _x000D_
      • No Air Ride Suspension
        • _x000D_
      • Fits 07-10 Sierra 2500 HD Without Electronic Adjustable Suspension With Rear Raised Height 5.0 To 6.0 Inches
        • _x000D_

      Description

      Elevated Performance Suspension. The Rancho RS5000X Rear Shock for 5-Inch Lift is engineered to enhance handling and ride quality for lifted trucks. It delivers superior control and smoothness on rough terrains and paved roads alike, making it ideal for off-road enthusiasts and daily drivers seeking improved suspension performance.

      _x000D_

      Construction and Appearance. This shock absorber features a robust 16mm nitro-carburized piston rod designed to resist wear and corrosion. The twin-tube body is painted white for durability and includes a polyvinyl protective boot. Its steel body and cylinder provide structural integrity while the progressive valving system is custom-tuned for consistent damping.

      _x000D_

      Installation. Installation is straightforward with no drilling required, suitable for experienced DIYers or professional fitment. The design fits directly onto existing mounts for a seamless upgrade without modification.

      _x000D_

      Warranty. This product is backed by a limited lifetime warranty for reliability and customer confidence.

      _x000D_

      Application. Specifically designed for the 2007 to 2010 Sierra 2500 HD models without electronic adjustable suspension, and intended for vehicles with a rear lift height of 5 to 6 inches.

      Rancho RS55056
