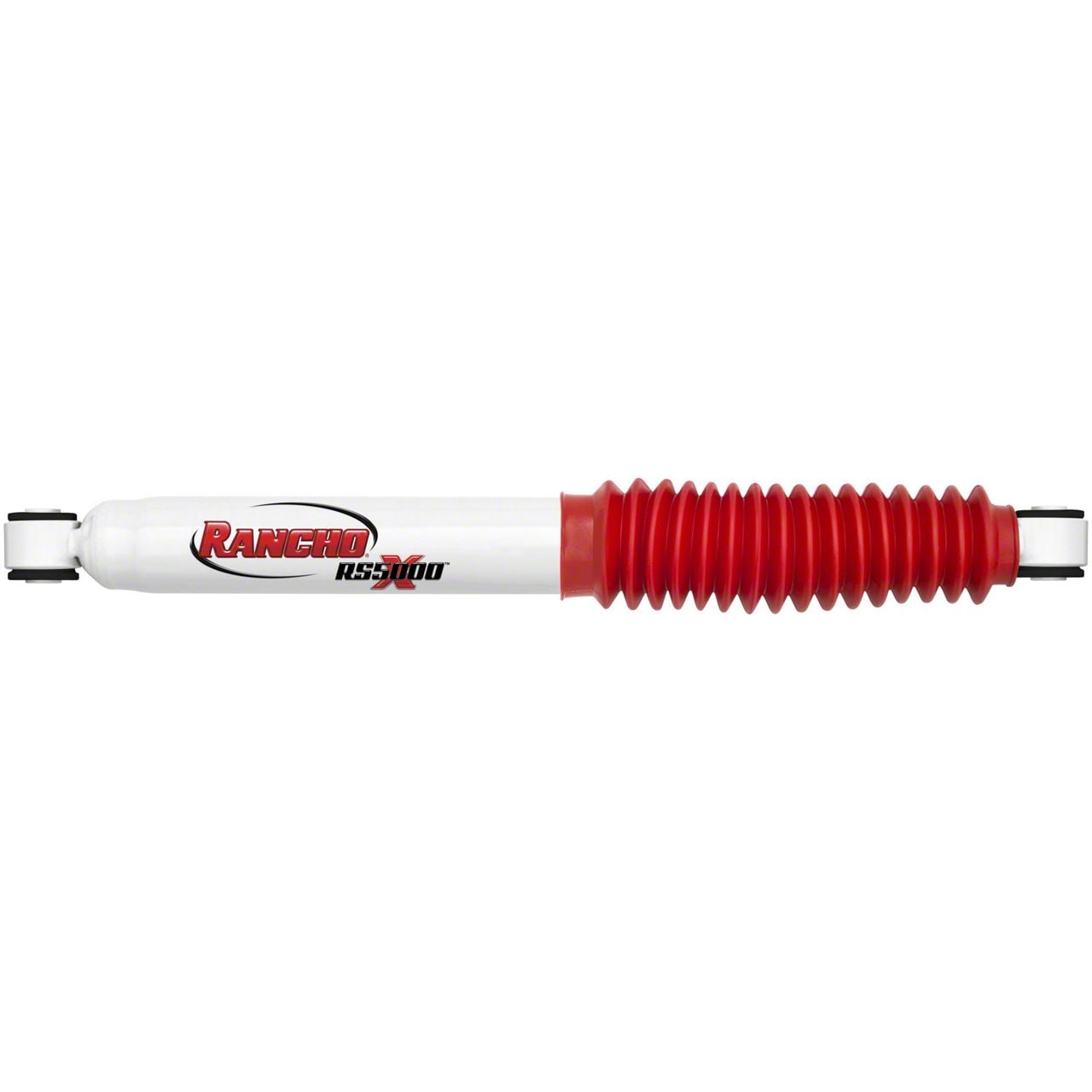

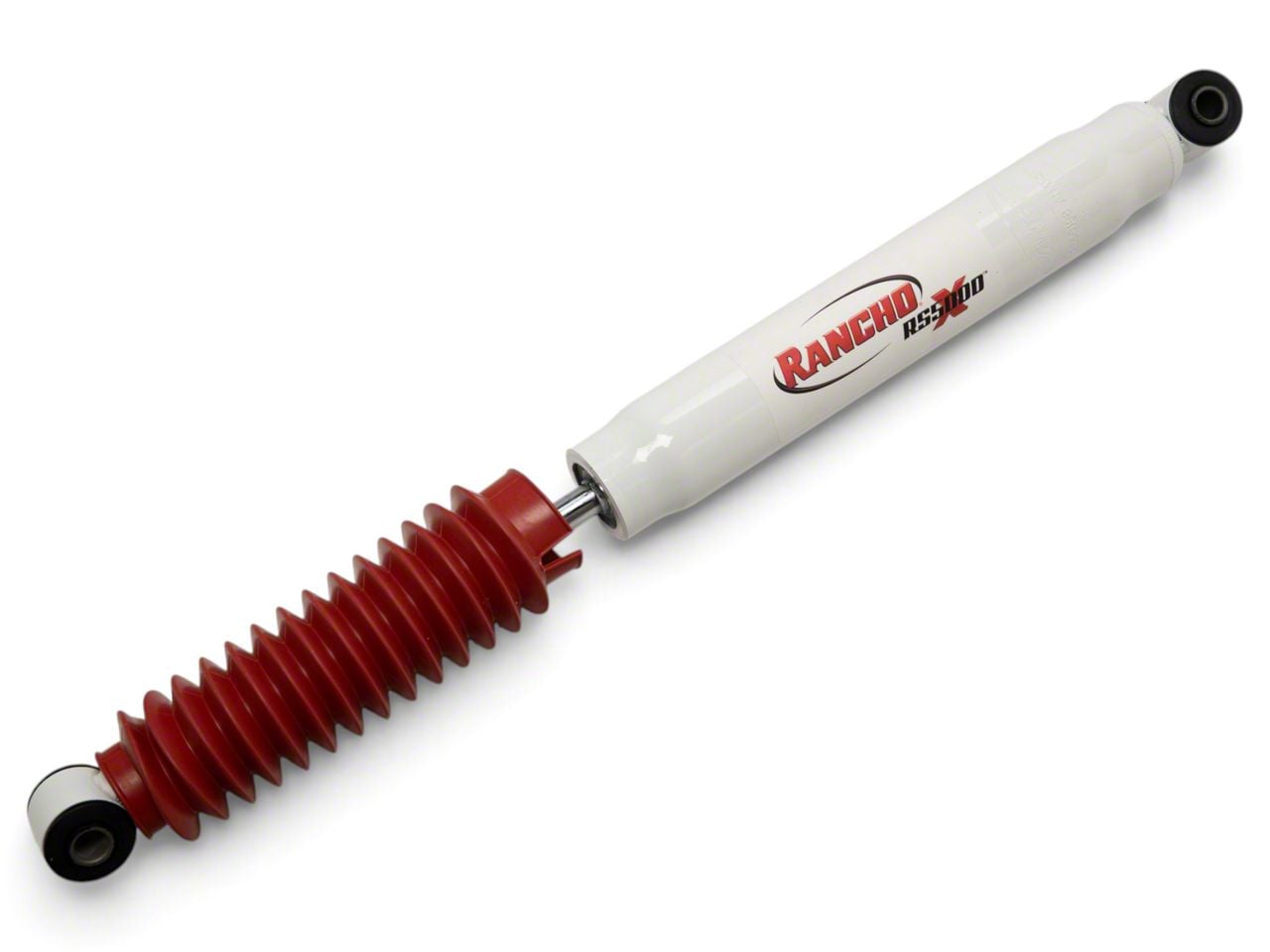

Rancho RS5000X Rear Shock for 2-Inch Lift (94-96 4WD RAM 2500)Find parts that fit my vehicle
Item HR48475
Our Price
$70.30
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- Featuring Unique Exclusive Valving System
- Advanced Compression Functionality
- Improved Overall On And Off Road Handling And Performance
- Cross Tuned Technology With Exclusive Rebound Valving System
- Minimizes Rough Ride With Progressive Engagement Valving Custom Tuned Per Vehicle
- Strong Durable Construction With 16mm Nitro-Carburized Piston Rod
- Double-Welded Loops At Stress Areas
- 35mm Sintered Iron Piston For Enhanced Structural Integrity
- Polyvinyl Protective Boot Included
- Handles Extreme Temperatures From -40 To 248°F
- Large Twin-Tube Body With All-Weather Fluid For Cooler Operation
- Polyurethane Rebound Bumper And Rubber Bushings Reduce Harshness
- Fluon-Banded Piston Enhances Responsiveness To Road Conditions
- Pressure Nitrogen Gas At 150 PSI To Reduce Damping Fade And Foaming
- Custom-Tuned Compression Control Valve To Maintain Shock Motion Control
- Low-Friction Self-Lubricating Seal Improves Rebound And Compression
- Application-Specific Piston For Better Shock Motion Control
- Painted Finish
- Loop Bushing And Sleeve Mount With 9/16" Sleeve ID And 1 5/8" Sleeve OAL
- Twin Tube Internal Construction With Progressive Valving Type
- Steel Body And Cylinder With Nitrocarburized Shaft
- Gas Charged
- Boot Included
- Passive Suspension
- Shock Stroke Of 9.9 Inches And Body Diameter Of 2.25 Inches
- Extended Length Of 25.59 Inches And Compressed Length Of 15.69 Inches
- Travel Length Of 9.9 Inches
- Shock Absorber Rod Diameter Of 0.622 Inches
- Boot Diameter Of 2.99 Inches
- Upper Mount Code LS47 And Lower Mount Code LS47
- Includes Dust Shield Made Of Rubber
- Does Not Include Adjustable Damping Or Ride Height Features
- Fits 94-96 4WD RAM 2500 With 2 Inch Rear Raised Height And Rancho Suspension System
| Brand | Rancho |
| Shock Type | Non-Adjustable |
| Shock Lift Height | 0 to 2-Inch Lift |
Description
Superior Suspension Performance. The Rancho RS5000X Rear Shock for 2-Inch Lift delivers enhanced on-road and off-road handling by utilizing exclusive valving technology for improved shock absorption and vehicle control. Designed to reduce harsh impacts and provide a smoother ride, this shock absorber is ideal for lifted 4WD trucks requiring reliable suspension performance.
Construction and Appearance. Crafted with a durable steel body and a nitrocarburized piston rod, this shock features a twin-tube design filled with all-weather fluid for consistent operation across extreme temperatures. The shock is finished with a painted coating and includes a polyvinyl protective boot, polyurethane rebound bumper, and rubber bushings that protect internal components and contribute to a refined ride.
Installation. Installation is straightforward for experienced users, requiring no drilling or major modifications. It is designed to fit directly onto existing mounting points associated with the specified vehicle setup.
Warranty. Comes with a limited lifetime warranty, providing confidence in its long-term durability and performance.
Application. Specifically engineered to fit the 1994-1996 4WD Dodge Ram 2500 equipped with a 2-inch rear lift and Rancho suspension system, ensuring compatibility and optimal performance for this configuration.
Rancho RS55198
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
4.7
Customer Reviews (291)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Ram 2500
- 5.2L V8 - 94, 95, 96
- 5.9L I6 - 94, 95, 96
- 5.9L V8 - 94, 95, 96
- 8.0L V10 - 94, 95, 96
