Find Shocks & Struts for your Ram 2500

Rancho RS5000X Front Shock for 2-Inch Lift (94-96 4WD RAM 2500 w/ 7,700 lb. GVW)Find parts that fit my vehicle

Item HR48490
Product Image
281 Reviews
Our Price

$70.30 each

Military, Medical & First Responders $3.52 Available in AT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Featuring a Unique, Exclusive Valving System and Advanced Compression Functionality
        • _x000D_
      • Delivers Improved Overall On- and Off-Road Handling and Performance
        • _x000D_
      • Cross Tuned Technology with Exclusive Rebound Valving System
        • _x000D_
      • Advanced Compression Phase to Improve Overall Handling
        • _x000D_
      • Minimizes Rough Ride with Exclusive Progressive Engagement Valving
        • _x000D_
      • Custom-Tuned for Each Vehicle to Reduce Initial Impacts at Low Speeds
        • _x000D_
      • Strong and Durable 16mm Nitro-Carburized Piston Rod to Resist Scuffs and Corrosion
        • _x000D_
      • Double-Welded Loops at Stress Areas for Added Strength
        • _x000D_
      • 35mm Sintered Iron Piston for Enhanced Structural Integrity
        • _x000D_
      • Polyvinyl Protective Boot Included
        • _x000D_
      • Large Twin-Tube Body Filled with All-Weather Fluid for Cooler Operation
        • _x000D_
      • Capable of Withstanding Internal Temperatures from -40 to 248°F
        • _x000D_
      • Polyurethane Rebound Bumper and Rubber Bushings for Absorbing Ride Harshness
        • _x000D_
      • Fluon-Banded Piston Enhances Responsiveness to Changing Road Conditions
        • _x000D_
      • Nitrogen Gas Pressurized to 150 PSI to Reduce Damping Performance Fade and Foaming
        • _x000D_
      • Compression Control Valve Custom-Tuned for Each Vehicle to Regulate Fluid Transfer and Absorb Impacts
        • _x000D_
      • Low-Friction Self-Lubricating Seal Retains Gas and Oil for Quicker Rebound and Smoother Compression
        • _x000D_
      • Application-Specific Piston Delivers Heightened Control of Shock Motion
        • _x000D_
      • Painted Finish
        • _x000D_
      • Loop Bushing Mounts with 5/8" Bushing ID and 1 5/16" Bushing OAL
        • _x000D_
      • Twin-Tube Internal Construction with Progressive Valving Type
        • _x000D_
      • Includes Mounting Hardware and Polyvinyl Boot
        • _x000D_
      • Measuring Points Are Center of Loop for Both Rod and Body Ends
        • _x000D_
      • Body and Cylinder Material Made of Steel
        • _x000D_
      • Rod Diameter of 0.622 Inches (15.8 mm)
        • _x000D_
      • Body Diameter of 2.252 Inches (57.2 mm)
        • _x000D_
      • Shock Stroke of 8.28 Inches (210.3 mm)
        • _x000D_
      • Extended Length of 22.04 Inches (559.8 mm)
        • _x000D_
      • Compressed Length of 13.76 Inches (349.5 mm)
        • _x000D_
      • No Coil Over Springs, Adjustable Damping, Bearings, or Remote Reservoir
        • _x000D_
      • Fits 94-96 4WD RAM 2500 with 7,700 lb. GVW
        • _x000D_

      Description

      Advanced Suspension Technology. The Rancho RS5000X Front Shock for 2-Inch Lift enhances vehicle performance by providing superior handling both on-road and off-road. It features an advanced compression system that adapts to varied driving conditions, reducing rough rides and improving vehicle control for a smoother driving experience.

      _x000D__x000D_

      Construction and Appearance. Constructed with durable materials such as a 16mm nitro-carburized piston rod and a 35mm sintered iron piston, this shock absorber is designed for long-lasting performance. The twin-tube body filled with all-weather fluid supports operation in extreme temperature ranges and is finished with a painted coating for corrosion resistance and aesthetic appeal.

      _x000D__x000D_

      Installation. Installation is straightforward and requires no drilling, making it accessible for experienced DIYers and professionals alike. Mounting hardware is included to facilitate a secure fit.

      _x000D__x000D_

      Warranty. Comes with a limited lifetime warranty, ensuring confidence in the product’s durability and long-term performance.

      _x000D__x000D_

      Application. Specifically designed to fit 94-96 4WD RAM 2500 trucks with a 7,700 lb. Gross Vehicle Weight rating without any exclusions noted for this fitment.

      Rancho RS55008

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 3 Hours

      Difficulty Level:

      Light to Moderate mechanical skill required.

      Installation Guides

        No guide available for this part yet.

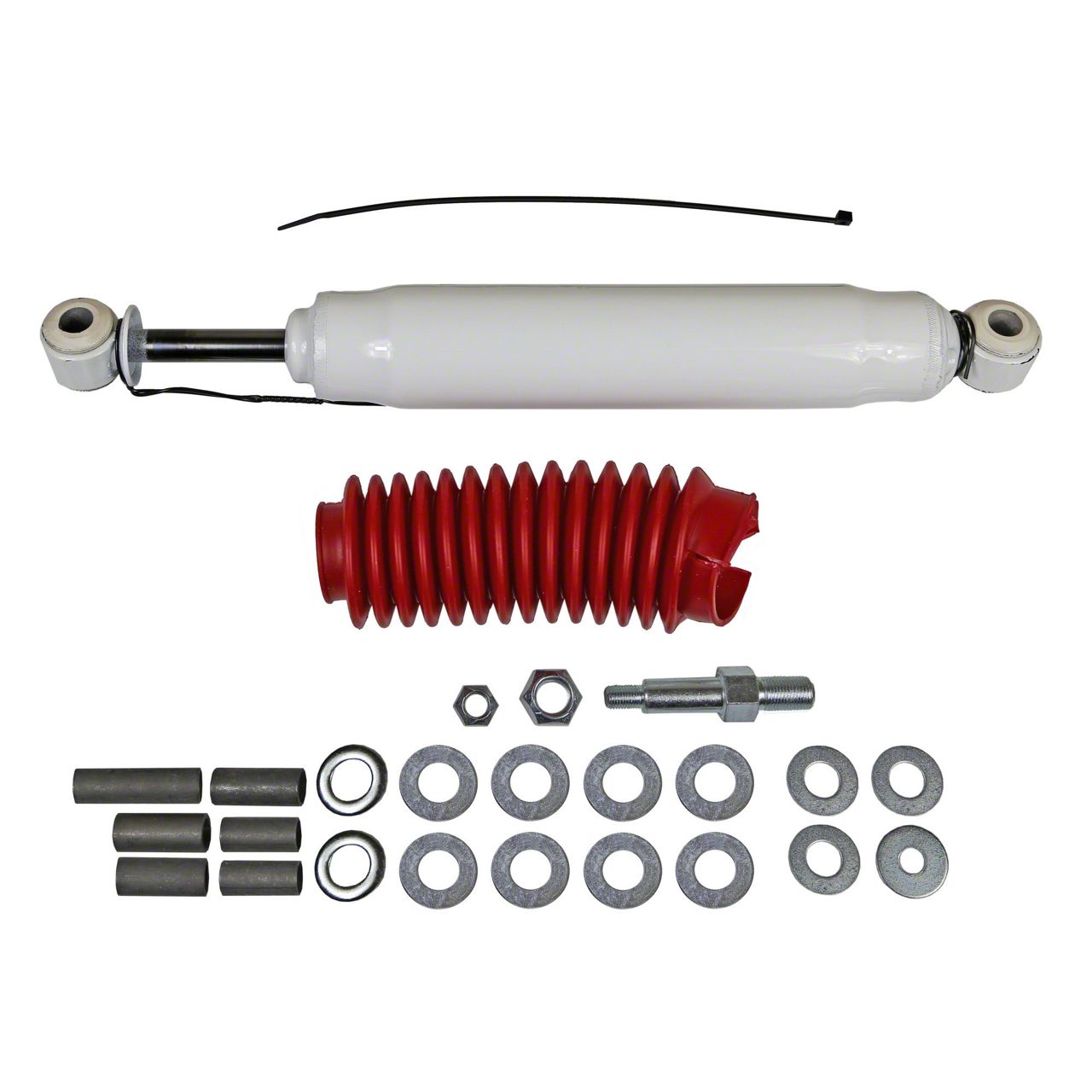

      What's in the Box

      • (1) RS5000X Front Shock Absorber
      • (1) Protective Shock Boot
      • Mounting Hardware

      4.7

      Customer Reviews (281)

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Ram 2500

      • 5.2L V8 - 94, 95, 96
      • 5.9L I6 - 94, 95, 96
      • 5.9L V8 - 94, 95, 96
      • 8.0L V10 - 94, 95, 96
