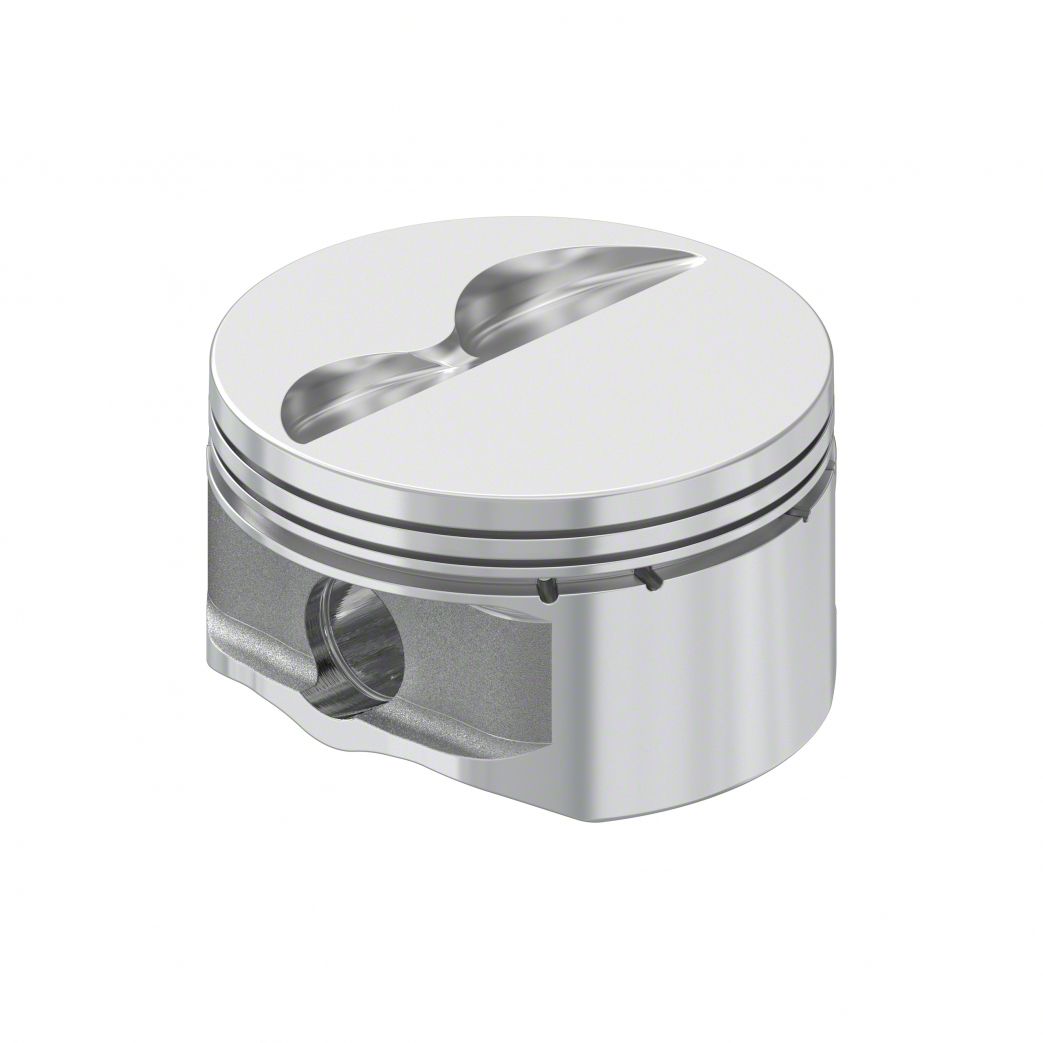

RaceTec Pistons Flat Top Piston; 3.631-Inch Bore, 3.650-Inch Stroke, 5.933-Inch Rod Length, 1.166-Inch Compression Height; Set of 8 (11-27 5.0L F-150)

Find parts that fit my vehicle Item T623993
Shop Owners Save More! Sign up for our dealer program

    Product Information

    Features, Description, Q&A, Specs & Installation

    Features

    • Engine Family: Modular 5.0 Coyote 4 Valve
    • Displacement: 302 ci / 4.9 L
    • Bore: 3.631 Inch / 92.23 mm
    • Stroke: 3.65 Inch / 92.71 mm
    • Rod Length: 5.933 Inch
    • Compression Height: 1.166 Inch
    • Crown Volume: -3 cc (small valve relief)
    • Compression Ratio: 11.9:1 @ 57 cc chamber
    • Material: 2618 Forged Alloy
    • Weight: 366 grams
    • Pin Diameter: 0.866 Inch
    • Oil Rails: Not included
    • Ring Package: Top Ring 1.5 mm, 2nd Ring 1.5 mm, Oil Ring Height 3.0 mm
    • Piston Style: Flat Top with minimal valve relief
    • Fits model years 2011 through 2027 5.0L F-150 Modular engines

    Description

    Flat Top Piston Set. The RaceTec Pistons Flat Top Piston set (set of 8) features a 3.631-inch bore, 3.650-inch stroke, 5.933-inch rod length, and 1.166-inch compression height, engineered specifically for high-performance Modular 5.0 "Coyote" 4 Valve engines. This piston set helps improve combustion efficiency and engine durability, making it ideal for enthusiasts upgrading or rebuilding their 5.0L F-150 engines. It is designed to optimize engine compression and power output.

    Construction and Appearance. Manufactured from durable 2618 forged alloy, these pistons offer superior strength and heat resistance for demanding applications. They feature a flat top design with a small -3 cc crown volume for valve relief and a compression ratio of 11.9:1 at a 57 cc chamber, ensuring optimized performance. The pistons are precisely machined and finished to maximize durability and longevity.

    Installation. Installing this piston set requires moderate mechanical skill typical of engine rebuilds. No additional drilling or machining modifications are required, as these pistons are intended as a direct performance upgrade for compatible engines. Proper attention to bore condition, clearances, and ring fitting as per standard engine build practices is necessary.

    Application. This piston set fits 2011 through 2027 5.0L F-150 Modular engines featuring the 4 valve "Coyote" design. Compatibility is ensured across these model years without noted exclusions or special conditions.

    RaceTec Pistons 1001415

    CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

    Install Details & What's in the Box

    Installation Info

    Installation Time

    (approx) 1 Hour

    Difficulty Level:

    Simple installation for anyone.

    Installation Guides

      No guide available for this part yet.

    What's in the Box

    • (8) Flat Top Pistons

    Tech Specs

    Questions & Answers

    No questions about this product yet. Ask the First Question

    Will It Fit My F-150

    • 5.0L V8 - 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27
