Review & Install Video
What's going on, guys? Adam here with AmericanMuscle.com, and today I'm bringing you my detailed review of the Putco Stainless Steel Crossrails, fitting all 2015 and newer F-150s. If you're the owner of a 2015 or newer F-150, and you're looking for a safe and secure way to tie down the cargo in the bed of your truck, you might be looking for a set of locker rails, such as these crossrails from Putco. So locker rails are basically the long, usually metal tubes on each side of your truck's bed, used to tie down your cargo or equipment being hauled in your truck for safe travels. Now this particular option from Putco is the crossrail, meaning that it's got a couple of slots on each side of the end castings, making it a unique option when shopping for locker rails.
These crossrails from Putco were manufactured right here in the US out of never rust, stainless steel tubing for durability and finished in a polished finish for long lasting corrosion resistance. Now the tie down ends on the crossrails are rated to hold up to a thousand pounds in cargo, which makes this option from Putco one of the highest rated weight supports on the market. Now the prices can range anywhere from the low $200s to the high $400s, and this particular option comes in at the higher end about $450. Now, of course, this is one of the higher, more expensive options, but you have to consider, you're getting a lot of bang for your buck, considering the weight support in the crossrail tie downs.
I do wanna point out, before we jump into it, that there will be a little bit of drilling required. But you're not drilling into the aluminum bedding. You're just drilling into the plastic covers on the top and sides of the beds. Now this way, it'll avoid any corrosion with the metals, and you don't have to worry about that headache. So the tools you'll need for this installation will vary depending on your bed size. If you're rocking a 6.5 ft bed, then you wanna have a 1/4" hex wrench, torque wrench, a pocket gap removal tool, and we'd recommend safety glasses just to be safe. Now if you have a 5.5 ft bed, you will require a little bit more work, and you will need a couple extra tools. You wanna have all of that, plus a 3/8" router bit, a router tool with base, a 1/4" shank chuck, and a drill with 1/2" bits. And we'd also recommend some hearing protection just to be on the safe side. So you guys with the 6.5 ft beds, you can skip ahead of the drilling part, and go straight for the hardware assembly because the pocket holes on the sides of your bed just have covers on them, whereas the 5.5 ft beds need a drill to gain access to them.
So for you 5.5 ft truck bed guys, you wanna start by drilling a hole in the center of the hidden stake pocket, which is 4" down from the front end and 1 1/14" from the inside of the truck. So you'll set and tighten the router bit 3/8" from the router base to the end of the router bit cutter. You'll turn it on, and insert it into the 1/2" hole you just drilled, and slowly guide it down until the bearings touch one of the edges of the pocket hole. So from there, you'll guide it out counterclockwise, until the pocket is fully exposed. Now at this point, you 6.5 ft guys can jump back in alongside the 5.5s because all the rest will be the same. You can start by assembling the black plastic bushings on the end of the locker and rail castings, and assemble the hardware onto that in the correct order. So you'll place the washer over the bolt, the bolt through the castings, then through the plastic gasket and then finally through the capture nut. You'll place this whole assembly into the pocket hole at an angle.
So from here, you'll pull all the tubing together onto the end castings and place them into the rear pocket holes. You wanna make sure you pull up on the end castings, so that they catch the inner body and don't come out. Rotate the plastic gasket until the arrow is facing toward the front of the truck. From here, you can tighten down the bolt on the locker and castings to make it snug against the rail caps. Repeat this process for both sides of the vehicle until everything is in place, and then torque down the bolts to 11 foot-pounds. So obviously, the install can be a bit tricky and tedious at times. But given the right tools, you can definitely get this done in about an hour or two, in your driveway. I'd give this install a 1 out of 3 wrenches on the difficulty meter because if you follow the directions properly, you can have this done in your driveway with no issues at all.
So just to quickly wrap things up, guys, if you're looking for a locker and rails to fit your 2015 or newer F-150, to tie down and support the weight of your cargo in the bed of your truck, then you might be interested in the Putco Stainless Steel Crossrails right here at AmericanMuscle.com

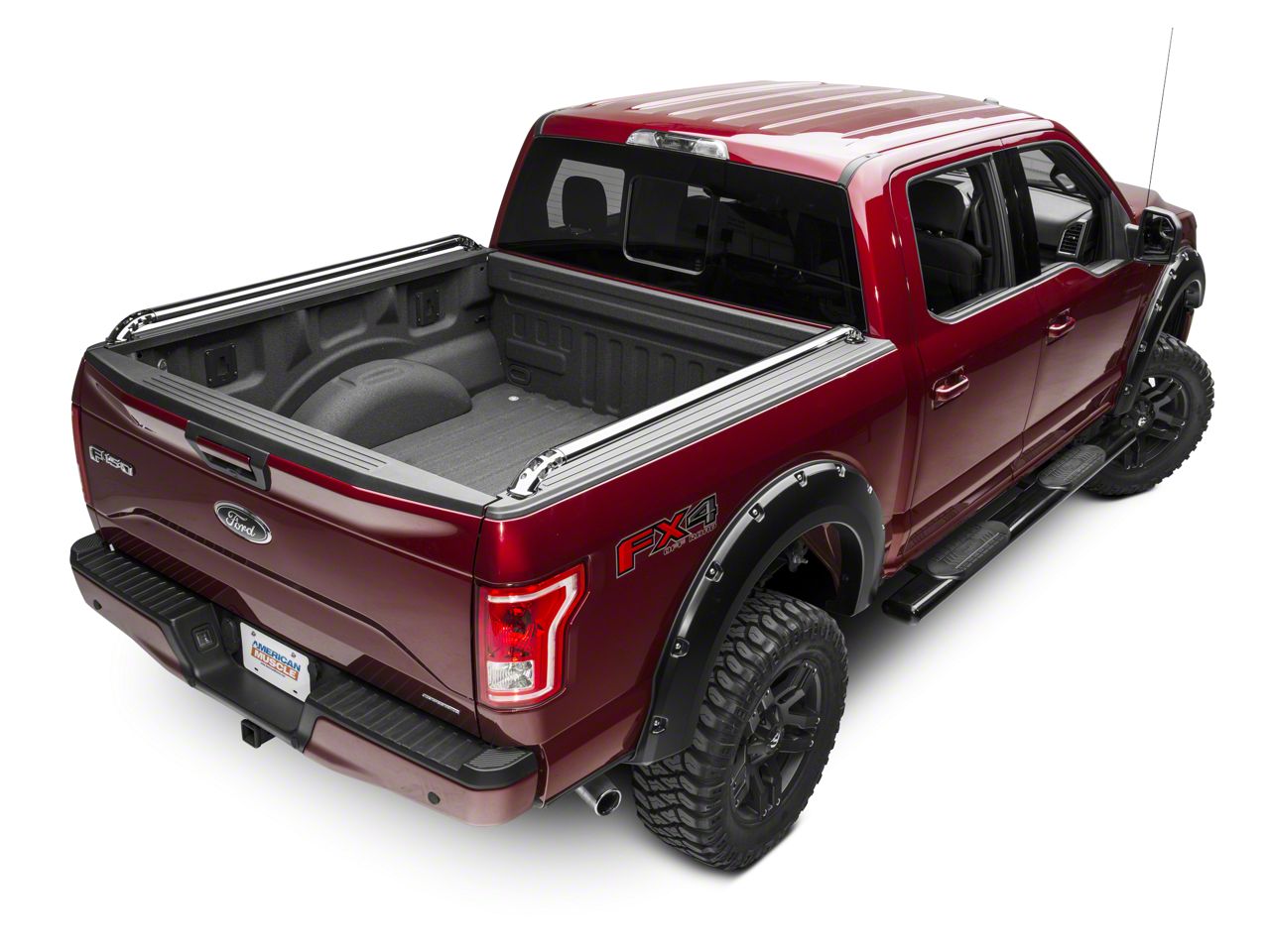

Putco knows that not every load is the same and some require more securing than others. Their Stainless Steel Crossrail Locker Side Rails make short work of uneven loading or cargo which requires more effort, thanks to a unique design. Each rail is equipped with tie down ends featuring multiple cutouts. They'll help you achieve the perfect angle on securing your cargo, as well as help minimize the struggle that comes with using multiple straps or bungees. Each Bed Rail is finished in a bright polished finish that is perfectly paired with aftermarket side steps to create clean lines and impressive style.
These Crossrails are crafted from durable NeveRust™ stainless steel. The tie down mounts feature a solid, die cast construction for superior strength and a firm hold. Each Bed Rail is completed in a mirror bright finish to ensure reliable corrosion resistance for long lasting use through rain, sleet and snow.
These Bed Rails are a direct bolt on for 6.5 ft. and 8 ft. beds using the factory stake pockets. All of the necessary installation hardware is included to ensure a quick and painless upgrade. Models equipped with 5.5 ft. beds will require additional drilling into the factory plastic rail caps for installation. Putco provides a clear and concise install guide to make the process simple so you can get back on the road faster.
The Putco Crossrail Locker Side Rails are designed for installation on 2015-2019 Ford F-150 pickup truck models.
CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- What's in the Box
- (4) Locker End Castings
- (2) Stainless Steel Tubes
- (4) Plastic Gaskets
- Installation Info
Installation Time: (approx) 1 Hour
Difficulty Level:Simple installation for anyone
- Will it fit my F-150?
- 2.7L V6 EcoBoost - 15, 16, 17, 18, 19
- 3.0L V6 Power-Stroke - 18, 19
- 3.3L V6 - 18, 19
- 3.5L V6 - 15, 16, 17
- 3.5L V6 EcoBoost - 15, 16, 17, 18, 19
- 3.5L V6 EcoBoost Limited - 19
- 3.5L V6 EcoBoost Raptor - 17, 18, 19
- 5.0L V8 - 15, 16, 17, 18, 19
