How to Install Putco 15 in. Mini Tailgate Light Bar - Clear (97-17 All) on your Ford F-150

Installation Time

10 minutes

Tools Required
  • Eye Protection
  • Electrical tape (if needed)
  • Screwdriver (Phillips)
American Muscle
Shop Parts in this Guide

KIT CONTENTS


LED TAILGATE LIGHT BAR WIRING AND INSTALLATION

1. Pre-installation preparation.

Verify the kit contents (check against parts listing). Remove any protective wrapping from the light strips or bolt kit.

2. Attach LED tailgate light bar to vehicle.

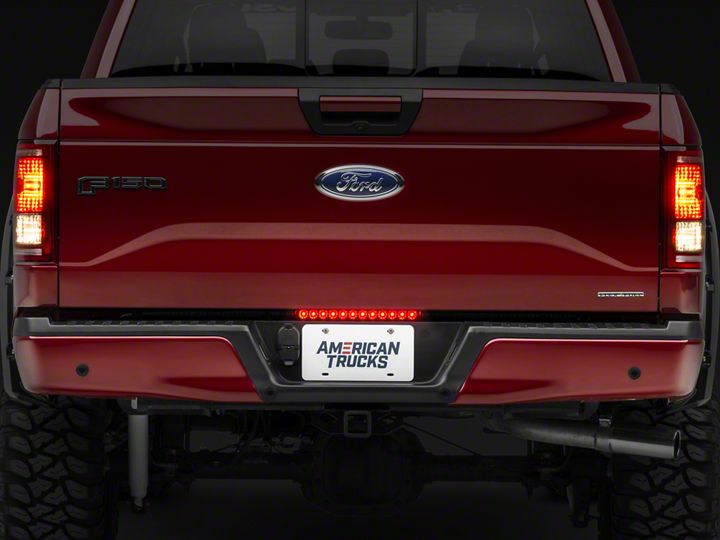

Place the light bar above the license plate and center between tailgate and license plate. Note: Make sure the word "TOP" on the tailgate light bar is on pointing upward. Mark mounting holes with a marker. Secure the light bar to the vehicle.

3. Wire LED tailgate light bar into electrical system.

Use the included color-coded wiring harness and splice each wire to the appropriate wire on your vehicle's tail lamps. Be sure to cover each splice with electrical tape or other electric product. ​
