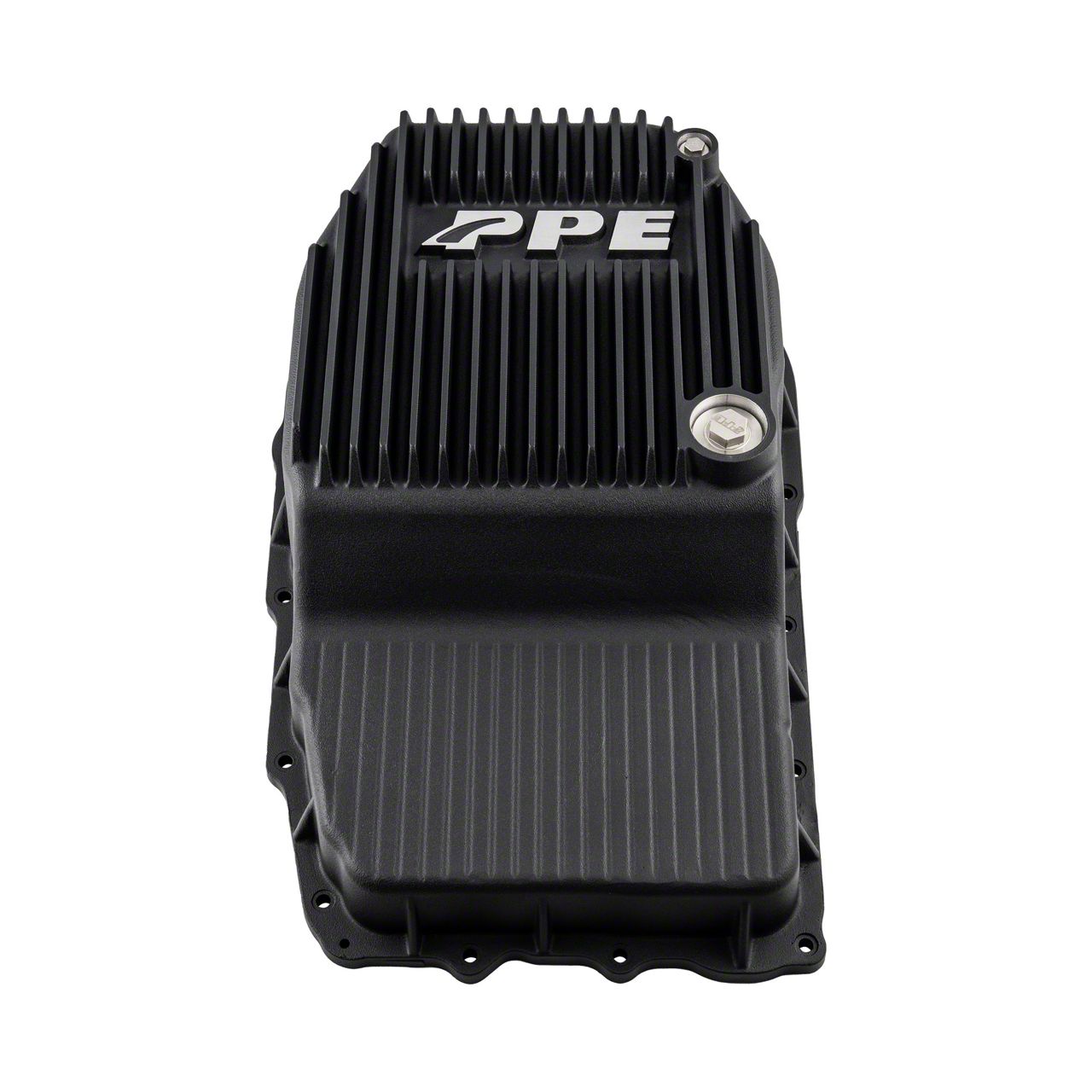

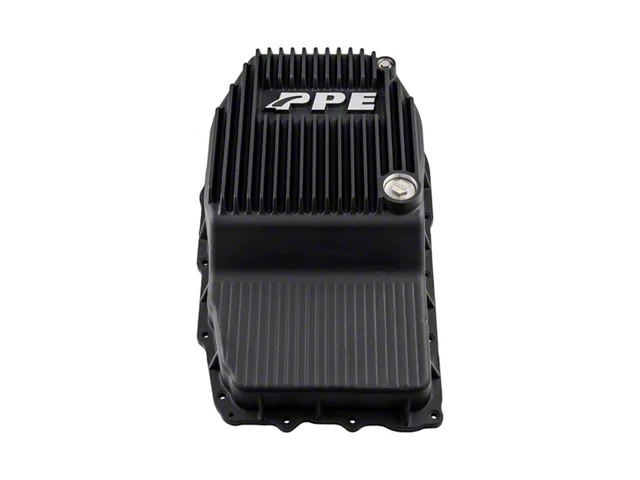

PPE Heavy-Duty Deep Cast Aluminum Transmission Pan; Black (19-26 Silverado 1500 w/ 8-Speed Automatic Transmission)Find parts that fit my vehicle

The GM 8-speed transmission has faced several issues, including excessive vibration and harsh or delayed shifts. Many of these problems can stem from low or inconsistent transmission fluid pressures. Transmission fluid pressure is closely tied to fluid temperature: as temperature rises, fluid viscosity decreases, requiring the oil pump to work harder to maintain the desired pressure.

However, if the transmission fluid viscosity becomes too low due to overheating, the pump and valve body may struggle to maintain sufficient pressure. This is why AC-Delco developed the Dexron HP ATF - its stable viscosity profile helps minimize pressure fluctuations caused by temperature changes.

The PPE 8L45/8L90 Deep Cast Aluminum Pan does the same thing - managing the transmission heat and keeping the transmission fluid viscosity in a desirable range. Cast from high-grade A356.0-T6 aluminum alloy, it offers 3.9 quarts of additional fluid capacity, ensuring long-lasting heat management and performance.

The deep external cooling fins maximize the heat-wicking surface area, effectively dissipating heat to keep your transmission cool under pressure. These fins also add strength to the bottom of the pan and enhance impact resistance.

The built-in baffles at the bottom of the pan increase contact between the fluid and the cast-aluminum surfaces, enhancing heat transfer. These baffles also reduce fluid sloshing, ensuring consistent fluid pickup and stable transmission performance. Together with the longitudinal external fins, they form a stiff, cross-bracing structure, distributing loads better and increasing impact resistance.

This kit also comes with three CNC machined aluminum filter supports and a fluid level check standpipe. The drain plug and the fluid level check plug are both equipped with a powerful, high-temperature-rated neodymium magnet that captures ferrous metal particles, providing additional protection for your transmission.

Keep your GM 8-speed transmission running longer, healthier, and cooler with PPE.

Replacement filter available for purchase separately SKU 128058500.

OEM equivalent P/N for reference: GM 24045041, GM 24278775, GM 24045038.
Features:

_x000D_
• 19-25 GM 8L45/8L80/8L90 Heavy-Duty Cast Aluminum Transmission Pan-Black
_x000D_
• Premium A356.0-T6 heat-treated cast aluminum alloy - a high-strength, thermally conductive material
_x000D_
• Precision-cast using permanent steel molds for a smooth, consistent finish and high dimensional accuracy
_x000D_
• Increases fluid capacity by 3.9 quarts for higher thermal capacity
_x000D_
• Tall 3/4-inch external fins improve heat dissipation, lower transmission fluid temperature, and increase impact resistance
_x000D_
• Deep 7/8-inch internal baffles enhance heat absorption and minimize fluid sloshing
_x000D_
• External fins and internal baffles work together to form an ultra-strong Cross-Bracing structure
_x000D_
• Cast-in gussets for additional transmission housing flange support and increased rigidity
_x000D_
• 304 Stainless steel service plugs with built-in high temperature rated neodymium magnet and Viton O-ring
_x000D_
• Included standpipe ensures accurate fluid level checks during the filling process
_x000D_
• Equipped with a 1/8-inch NPT port with pre-installed NPT plug
_x000D_
• Integrated filter supports ensure proper filter placement
_x000D_
• Compatible with OEM gasket and filter
_x000D_
• Patent Pending
_x000D_
• Limited Lifetime Warranty
