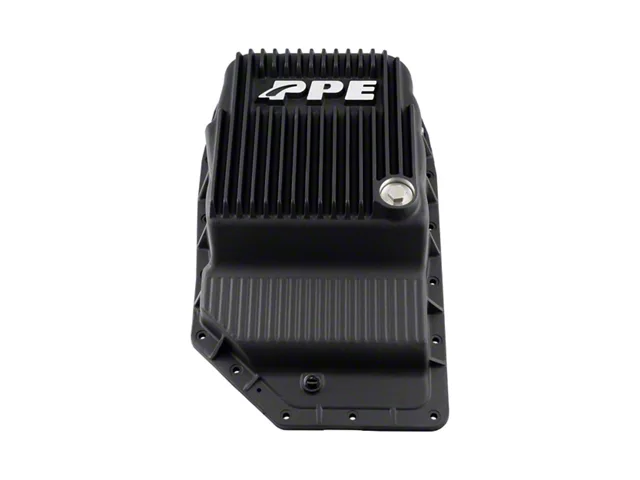

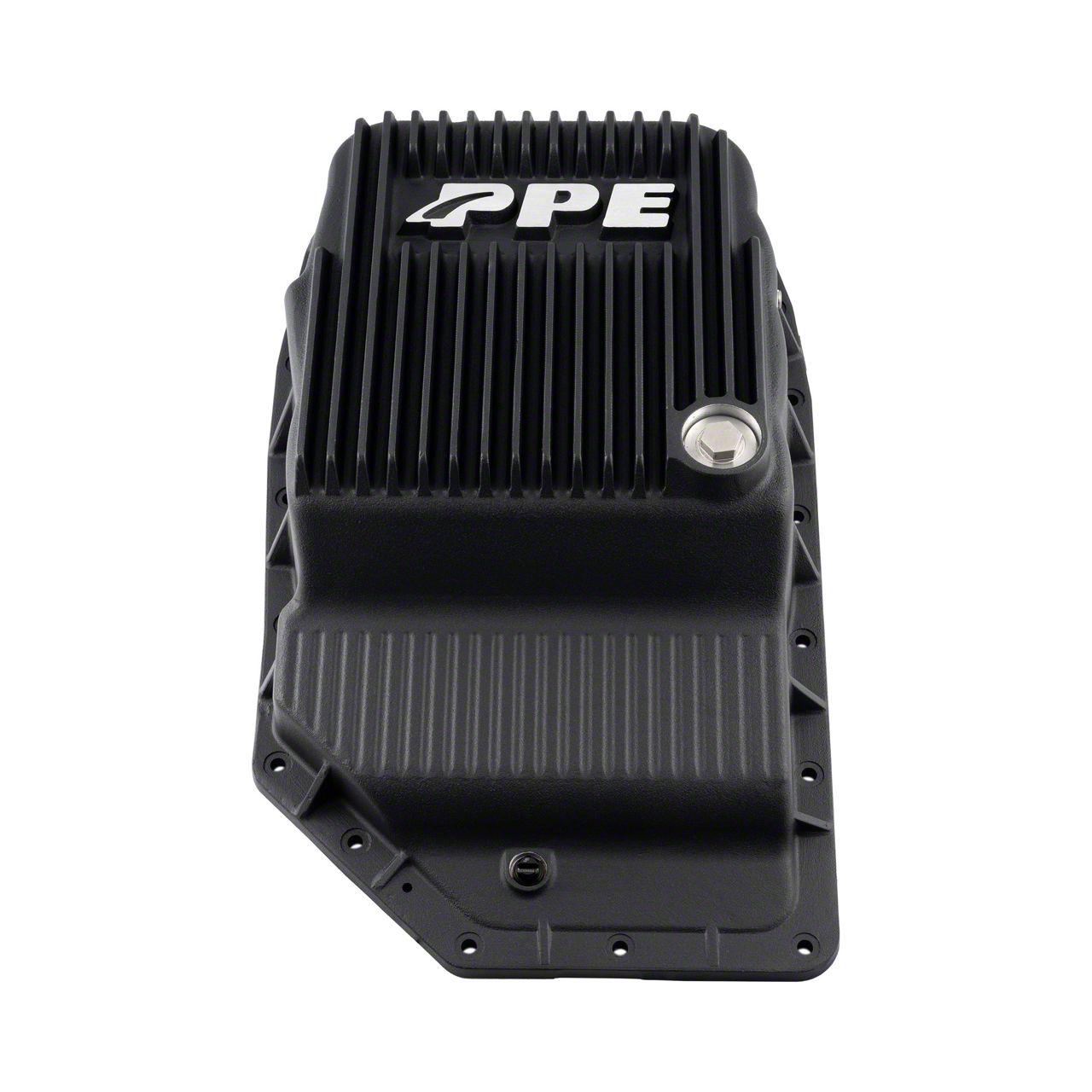

PPE Heavy-Duty Deep Cast Aluminum Transmission Pan; Black (07-23 Sierra 2500 HD w/ 6L90 Automatic Transmission)Find parts that fit my vehicle

Excessive heat kills transmission life. As temperature rises, transmission fluid viscosity decreases, weakening the lubricating film that protects gears and bearings. This could cause premature wear and potential failure.

Cast from high-grade A356.0-T6 aluminum alloy, the PPE transmission pan offers 1.5 quarts of additional fluid capacity, ensuring long-lasting heat management and performance.

The deep external cooling fins maximize the heat-wicking surface area, effectively dissipating heat to keep your transmission cool under pressure. These fins also add strength to the bottom of the pan and enhance impact resistance.

The built-in baffles at the bottom of the pan increase contact between the fluid and the cast-aluminum surfaces, enhancing heat transfer. These baffles also reduce fluid sloshing, ensuring consistent fluid pickup and stable transmission performance. Together with the longitudinal external fins, they form a stiff, cross-bracing structure, distributing loads better and increasing impact resistance.

The drain plug is equipped with a powerful, high-temperature-rated neodymium magnet that captures ferrous metal particles, providing additional protection for your transmission. The built-in filter supports ensure proper filter placement. The fluid level check port ensures proper fluid level during each filling process. Installation hardware, rubber gasket and transmission filter are included.

Keep your 6-speed transmission running longer, healthier, and cooler with PPE.

Check your vehicle for clearance issues with the exhaust, drive shaft, and frame cross members. For filter replacement, use PPE Transmission Filter SKU 128058900.

_x000D_
• OEM Equivalent Pan P/N: GM 24226851, GM 24248164, GM 24297102
_x000D_
• OEM Equivalent Filter P/N: GM 24258269
_x000D_
• OEM Equivalent Gasket P/N: GM 24226850
_x000D_

Features:

_x000D_
• 07-23 GM 6L90 Heavy-Duty Cast Aluminum Transmission Pan Black
_x000D_
• Premium A356.0-T6 heat-treated cast aluminum alloy - a high-strength, thermally conductive material
_x000D_
• Precision-cast using permanent steel molds for a smooth, consistent finish and high dimensional accuracy
_x000D_
• Increases fluid capacity by 1.5 quarts for higher thermal capacity
_x000D_
• Tall 3/4-inch external fins improve heat dissipation, lower transmission fluid temperature, and increase impact resistance
_x000D_
• Half-inch Internal baffles enhance heat absorption and minimize fluid sloshing
_x000D_
• External fins and internal baffles work together to form an ultra-strong Cross-Bracing structure
_x000D_
• Cast-in gussets for additional transmission housing flange support and increased rigidity
_x000D_
• 304 Stainless steel drain plug with built-in high temperature rated neodymium magnet and Viton O-ring
_x000D_
• Fluid level check plug included for easy services
_x000D_
• Equipped with a 1/8-inch NPT port with pre-installed NPT plug
_x000D_
• Integrated filter supports ensure proper filter placement
_x000D_
• New transmission filter and gasket included
_x000D_
