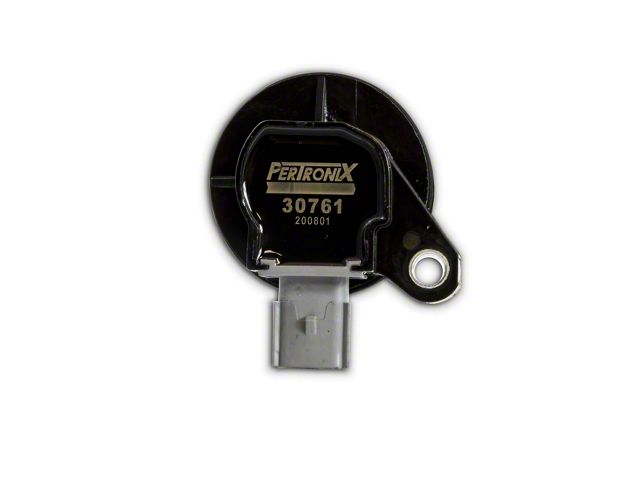

PerTronix 2-Pin Flame-Thrower Coil; Single (11-12 3.5L EcoBoost F-150)Find parts that fit my vehicle

Item T580841
Product Image
Limited Time
4 Reviews of PerTronix
Our Price

$57.60

Coupon
Apply 10% Discount
One coupon per order | Details
Military, Medical & First Responders $2.88 Available in AT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features

      • 30,000 Volts Direct OEM Replacement
      • Optimized Coil Design Yields At Least 15% More Energy For The Spark Than Standard OEM Coils
      • Delivers Consistent Spark Energy Throughout The RPM Range With No Degradation Up To 11,000 Engine RPMs
      • Plated Copper Terminals For Enhanced Current Conduction
      • Moisture Resistant Construction Ensures Long Life In Harsh Environments
      • High-Temperature Boot Maintains Seal And Shape
      • Epoxy Molded For Resistance To Shock And Vibration
      • Limited 90-Day Warranty
      • Maximum Voltage: 30,000 Volts
      • Primary Resistance: 0.5 Ohms
      • Voltage: 12 Volts
      • Coil Type: Coil Pack
      • Color: Black
      • Finish: Matte
      • Ignition Type: Computer Controlled
      • Coil Shape: Matches Factory Design
      • Mounting Position: Factory
      • Mounting Bracket: Integrated and Included
      • Mounting Hardware: Not Included
      • Ballast Resistor: Not Included
      • Coil Wire Attachment: Coil-On-Plug
      • Coil Wire Included: No
      • Mount Type: Factory
      • Requires External Resistor: No
      • Coil Internal Construction: Epoxy Molded
      • Primary Inductance: 2.2 mH
      • Secondary Resistance: 9,000 Ohms
      • Turns Ratio: 85:1
      • Grade Type: Stock Replacement
      • Fits 2011-2012 3.5L EcoBoost Ford F-150

      Description

      High-Performance Ignition Coil. The PerTronix 2-Pin Flame-Thrower Coil; Single is a direct OEM replacement engineered to deliver enhanced spark energy for reliable engine ignition. It produces 30,000 volts and maintains consistent spark strength across the full RPM range up to 11,000 RPM, essential for optimal combustion and engine performance.

      Construction and Appearance. Featuring epoxy-molded internal construction, this coil resists moisture, shock, and vibration for increased durability in demanding environments. It has a matte black finish and plated copper terminals that enhance current conduction, ensuring long-lasting reliable operation.

      Installation. Installation is straightforward with a factory-matching shape and mounting position that requires no drilling. The coil mounts securely using an integrated bracket and connects via coil-on-plug wiring.

      Warranty. This product includes a limited 90-day warranty covering defects in material and workmanship.

      Application. Specifically designed to fit the 2011-2012 Ford F-150 with the 3.5L EcoBoost V6 engine.

      PerTronix 30761

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      4.3

      Reviews of PerTronix Ignition Products (4)

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My F-150

      • 3.5L V6 EcoBoost - 11, 12
