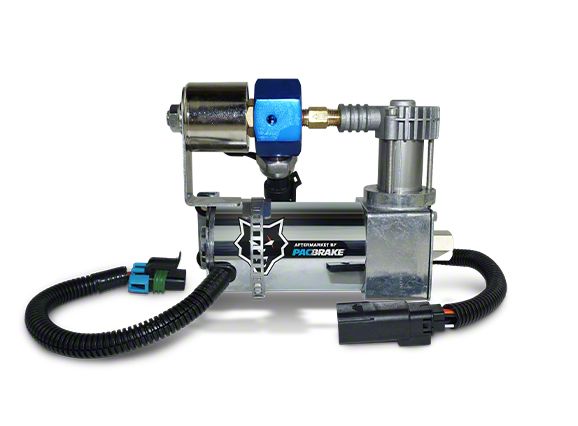

Pacbrake Single Channel Wireless Air Spring Control with SD 90 Series Compressor

Description. Pacbrake Wireless Air Spring Control with SD 90 Series CompressorHP10472 WIRELESS CONTROLS FEATURESMilitary grade solenoidsDesigned to withstand extreme environmentsWaterproof and debris resistantDemand a Pacbrake IP67 rated controllerDon't experience the irreparable debris clogs of other leading products!Our compressor has accessible components that allow easy serviceability and replacement of partsSmarter AppAn easy to use app that reads real time pressure feedback within each air spring and provides more of the data you need. The app has 3 built-in memory presets so you can quickly achieve your desired air spring pressure.Faster FillsUp to 10% faster than the leading competitionQuick and Easy InstallPre-installed push-to-connect air fittings and pre-assembled wiring connectors reduce installation timePacbrake Wireless Controls are a universal fit – They fit the frame of any vehicle, work with any air spring on the market. They can also be easily installed with common mechanic tools under 1 hour - no lines or wires to the cab and no drilling required!The kit comes with everything required for install:Air compressor, controller, solenoid block, pressure sensors and harnesses

Free Phone app (For use with Android 4.3+ or Apple iOS 10.3+ mobile device)

Air lines, pressure connectors mounting hardware

HP10472 Pacbrake Wireless Controls come with 2 year warranty.*

Product Specifications:

MAX WORKING PRESSURE / DUTY CYCLE

827.4 kPa [120 psi], 9% @ 689.5 kPa [100 psi]

MAX CONTINUOUS RUN TIME

5 Minutes ON / 55 Minutes OFF

RATED FLOW

29 L/min [1.02 CFM] @ 0 kPa [0 psi]

INGRESS PROTECTION

IP54 Compressor, IP67 Electric Connectors

WEIGHT

1.09 kg [2.41 lbs]

AMBIENT OPERATING TEMPERATURE RANGE

-40ºC to +70ºC [-40ºF to +158ºF]

NOMINAL SUPPLY VOLTAGE — 12 VDC

MAX CURRENT DRAW

11 Amps
