Find Light Bars & Off-Road Lighting for your Sierra 2500

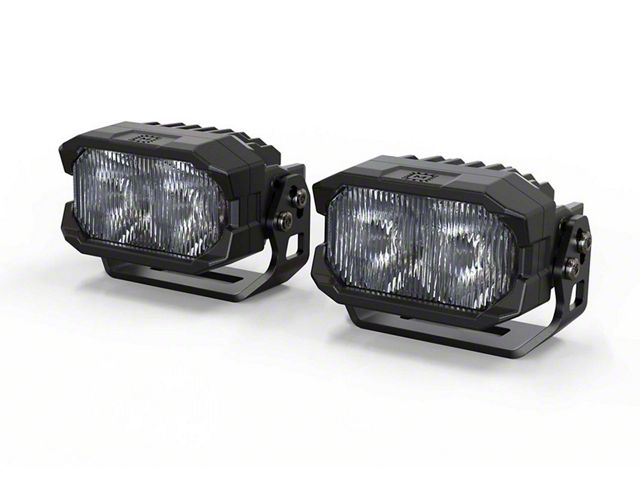

Morimoto 2Banger LED Pod Lights; HXB White SAE Beam (Universal; Some Adaptation May Be Required)
Item HG26460
Our Price
$389.00
Military, Medical & First Responders
$19.45 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Meticulously engineered and tested in the USA _x000D_
- Equipped with HXB wide beam pattern for optimal ground illumination _x000D_
- Dual-axis control for width and active hotspot intensity projection _x000D_
- Meets latest SAE F regulation for road-legal fog light use _x000D_
- Offers exceptional off-road capability while remaining on-road compliant _x000D_
- Optimized for visibility in rain, snow, and fog _x000D_
- Wide beam pattern provides broad coverage left and right _x000D_
- Utilizes ultra high performance Osram HX Boost LEDs _x000D_
- Designed to IP69K weather resistance standards _x000D_
- Available in white or yellow output variants _x000D_
- Includes multiple mounting options: pedestal, flush, tube, or hanging _x000D_
- Designed, engineered, and tested in Atlanta, GA _x000D_
- Comes with pair of LED pods and mounting brackets _x000D_
- Includes stainless steel hardware for mounting _x000D_
- Uses Makrolon PC lens and powder-coated die cast aluminum housing _x000D_
- Integrated Deutsch DT 2-pin power connection _x000D_
- Dimensions: 81.0mm width, 49.8mm height (63.5mm with bracket), 59.2mm depth _x000D_
- White output intensity: 12,700 Cd (127 Lux at 10m) _x000D_
- Yellow output intensity: 8,400 Cd (84 Lux at 10m) _x000D_
- Power consumption: 24.0W stabilized _x000D_
- Current draw: 1.78A at 13.5V DC _x000D_
- Peak luminosity: 2,000 lumens _x000D_
- Color temperature: 2700K yellow or 5700K white _x000D_
- All components proprietary with LucidShape optical optimization _x000D_
- Thermal management using copper direct thermal path PCB _x000D_
- Electroplated then powder coated housing to prevent flaking _x000D_
- Gasket system and breather valves ensuring IP69K weather sealing _x000D_
- Wide beam compliant with SAE F 20 standards _x000D_
- Optional wiring harnesses and mounting kits available _x000D_
- Lifetime limited warranty provided by manufacturer _x000D_
- Fits universal; some adaptation may be required _x000D_
| Brand | Morimoto |
| Bulb Type | LED |
| Light Shape | Oval |
| Light Size | 3 to 3.75 Inch |
Description
High Performance Lighting. The Morimoto 2Banger LED Pod Lights with HXB White SAE Beam deliver superior illumination designed specifically for optimal ground coverage directly ahead of the vehicle. Ideal for off-road adventures and adverse weather conditions, these pods provide enhanced visibility while maintaining compliance with road safety regulations.
_x000D__x000D_Construction and Appearance. These LED pods feature a robust die-cast aluminum housing with a powder-coated finish and an optically clear Makrolon polycarbonate lens. They incorporate a copper direct thermal path PCB for excellent heat dissipation, ensuring durable and reliable long-term performance in harsh environments.
_x000D__x000D_Installation. Installation is straightforward with universal mounting brackets included, requiring minimal drilling or modifications. The integrated Deutsch DT 2-pin connectors simplify wiring integration, with optional heavy-duty harnesses available.
_x000D__x000D_Warranty. This product includes a lifetime limited warranty supported by the manufacturer.
_x000D__x000D_Application. Fits universal applications; however, some adaptation may be required depending on the mounting surface and vehicle configuration.
