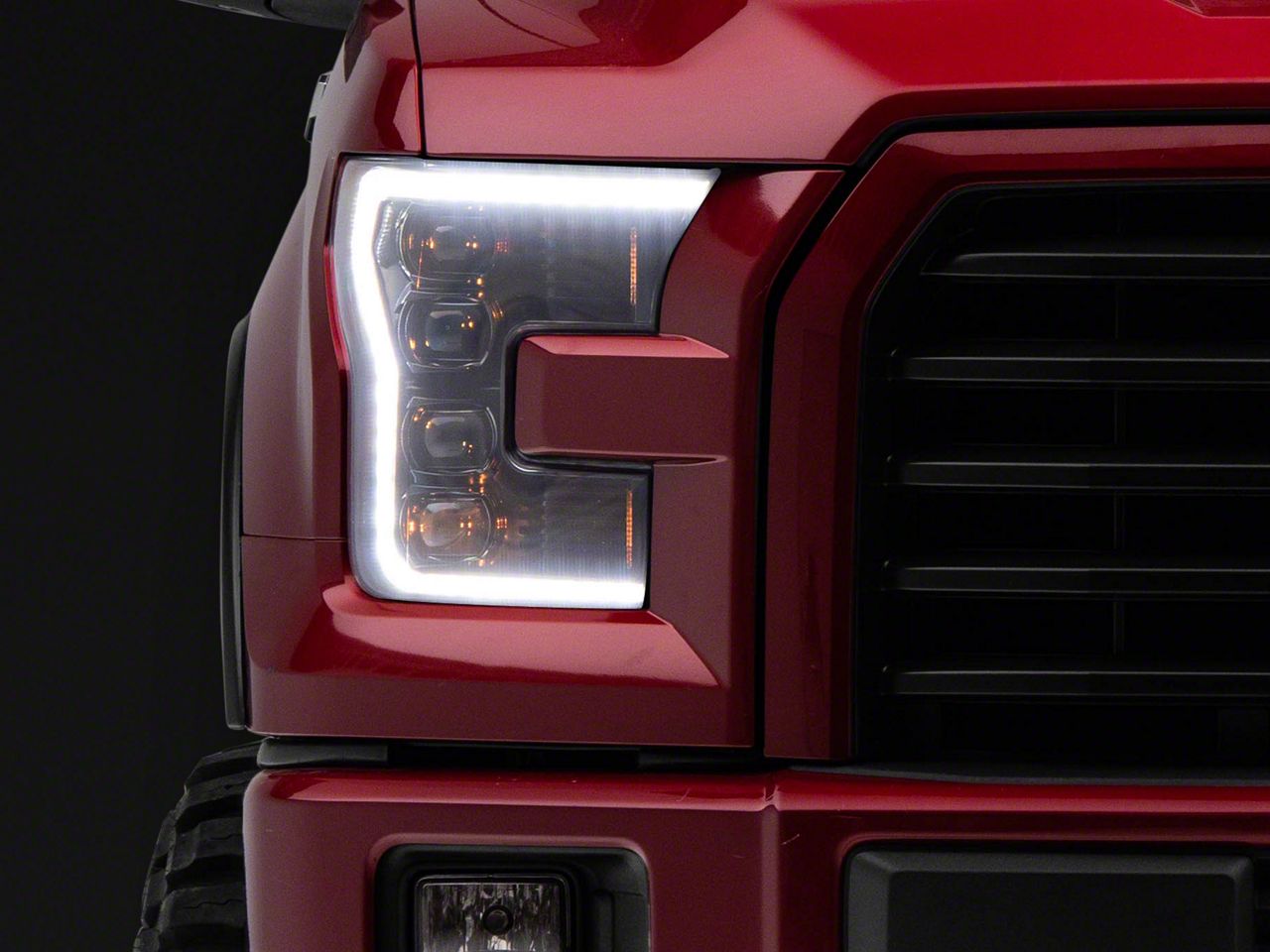

Morimoto XB Projector LED Headlights with White Daytime Running Lights; Black Housing; Clear Lens (15-17 F-150)

Item T542759
AmericanTrucks no longer carries the Morimoto XB Projector LED Headlights with White Daytime Running Lights; Black Housing; Clear Lens (15-17 F-150). Please check out 1997-2003 Ford F-150 Headlights for an updated selection.
Verify parts fit and get product recommendations.
F-150 Sales Techs: Connect Now M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00

    Product Videos

    Justin: If you're looking for one of the nicer headlight upgrades available for your 2015 through '17 F-150, then you might want to consider the Morimoto XB Projectors that we have here complete with white daytime running lights. Now these DOT approved lights will pack a whopping 2600 lumens thanks to the included LED projectors along with the diffused white LEDs all for the mid to high $1,300 price point. Installation is gonna get a pretty solid two out of three wrenches on the difficulty meter according to the site and that's mainly due to the fact that the removal process of the lights themselves is a little bit tough. But if you hang with me for a bit, we'll walk you through that job a little later in the video.All right, gang. So you are currently looking at the Rolls-Royce of aftermarket headlight upgrades for your truck and the price is certainly going to reflect that. But what do you say we talk a little bit more about what you are getting for the money here and on the surface, you're getting one of the highest quality aftermarket options currently at americantrucks.com. Now this does include the PPS plastic housing with built-in aluminum heat sinks, all topped off with that impact-proof polycarbonate lens. And that's also gonna feature a baked in UV coating to help prevent any fading or hazing on you over the years. Now all together, the housings and the lenses are sealed up well enough to achieve a waterproof rating of IP67 which is pretty much the standard in the industry for auxiliary or aftermarket lighting, headlights, light bars, and so on.But inside that housing or those lenses is where all the magic happens, right. So let's start breaking things down starting with the Quad [inaudible 00:01:37.463] optic projectors which are going to allow for equal parts illumination and very unique appearance. Now the top two here on either side are gonna function as your low beams while the bottom two are going to serve as your highs. Now the performance is gonna be night and day compared to the weak factory halogens thanks to the [inaudible 00:01:57.802] white LEDs again pumping out over 2600 lumens at that 5500 K color temperature. Now Morimoto even claimed that these bad boys are going to outperform the factory F-150 LED headlights, which is very impressive. But that standard lighting is really only a fraction of the total package here, guys, because you're also getting the diffused LED running lights going around the perimeter of the headlights themselves and those are done in a very factory-like manner thanks to that diffused LED, much like the LED F-150s, Raptors and so on. Now this particular set does feature the white LED running lights but Morimoto also offers the amber style with the running lights as well. Those are gonna be a little bit more OE in style. The whites that we have here I feel are gonna give off a little bit more of that aftermarket style or appearance but again, you can find both options right here at AmericanTrucks.Now if those daytime running lights weren't enough, Morimoto also built in a turn signal to the top portion of the DRLs here that will function either as a solid blink or a sequential pattern and that looks completely awesome and just really separates these from some of your other more affordable options in the category. Now, the site is gonna say that these are specifically for halogen-equipped F-150s. And while that is true, Morimoto states you can also use these on factory LED-equipped trucks. Maybe you busted them up in an accident, you don't want to spend the $2,000 to replace them with the OE Ford lights, you can use these on that LED-equipped truck. However, you will just need to buy a separate harness to make everything plug and play, but Morimoto states that it is possible. Last but not least, guys, these things are backed by a limited five-year warranty in case you happen to run into any issues. Now if you do have a halogen-equipped truck, these are gonna be completely plug and play, guys, as we're about to show you with our detailed walkthrough. So without further ado, here's how to install them along with a quick tool breakdown. Check it out.Male: So the tools used for this install are a 1/4-inch ratchet, 7-millimeter socket, 8-millimeter socket, 10-millimeter socket, a T25 Torx bit, a small extension, and a clip removal tool. So the first step of this install is gonna be to pop the hood and to remove the trim bezel that goes around the headlight. There's just a clip and a couple of screws that hold those in and they pop right out, so let's get started.So I'm just gonna use a small clip tool to remove the push clip at the top of the bezel and that should pop right out. Next, I'm gonna use a 7-millimeter socket to remove the two screws on the inside of the wheel liner and this bezel should come right off. Now we're gonna remove this lower plastic piece underneath the headlight that exposes the bolts that hold the headlight in. I'm gonna use a 10-millimeter bolt for the majority of these but you'll need an 8-millimeter for one of them. And this last bolt here in the front corner is actually an 8-millimeter so I'm gonna use an 8-mill socket and pop that out. And last but not least, I'm gonna use my trim tool again to remove one of the push clips that holds the lower plastic piece in, and then this lower plastic piece should come right out. All right. So there's three final bolts that hold the headlight into place. There's one hidden back here in between the headlight and the grille. I'm just gonna use a short extension an a 10-millimeter socket, and remove that. And these last two bolts up here at the top of the headlight. Now I can pull my headlight out and disconnect all of the electrical connections on the back. So there's one mounting bracket that needs to be transferred from your original headlight to your new headlight, and you're just gonna use a T25 Torx bit and remove these three screws on the bracket and transfer it all over to the new assembly. Now we're ready to throw that into the truck.So before you can actually install these headlights into the vehicle, there's an initial step that needs to be done involving tapping into one of the circuits in the fuse box. So what you actually have to do is tap into the fuse box panel, open it up and locate fuse number 113, which for those of you wondering, this 7-1/2 amp fuse here in the back of this little panel here, just pop that out, and then they provide you with a fuse tap harness that you'll add into that location. So this is the fuse tap that they give you for the kit and you'll just go ahead. It already has the two fuses installed in it and you just go ahead and plug that into the location where you remove the one fuse, and then you'll tuck the wire the way you need it and route it so that it doesn't interfere with the box at all and put your cover back on and route the harness to your passenger and driver side headlights so that you can make connections later on. So I'm just gonna bunch up some of the slack and tuck it in behind the battery. The longer of the two pieces goes over to the driver side and the shorter goes over to the passenger side headlight, and I'm just going to wrap mine down and around the washer bottle so that it comes into the back of the headlight opening. So on the back of this headlight, there are several wire harnesses and connectors. If you are working with a halogen vehicle, which we are in this case, this connector right here is not going to be used. This small connector right here is for the wire harness that we just ran from the fuse box, and this small connector right here, the two-pin, is going to be used for the turn signal bulb itself. So all the other connections as you can see down here will be the same for the connections on the harness for the vehicle, so we'll just go ahead and make these connections, plug everything in and bolt the headlight in as if it was stock.And then the last two, just make sure you match up the shapes on your connectors, plug them in until they click. I'm just gonna make sure that I tuck the rest of these connectors and this harness into the larger void next to the windshield washer bottle here on the passenger side so that nothing interferes when I put the headlight into place, and slide everything in and line up my bolt holes. So I'll just start by installing the top two bolts to make sure I have everything in place properly. Using my 10-millimeter socket once again and I'll snug those down. Careful not to strip the plastic threads. Now we're ready to throw this lower plastic piece up underneath the headlight in using the factory hardware. Now we can throw on the headlight bezel. Now we're ready to repeat this process on the other side.Now, just like I did on the passenger side, I'm going to make all the connections on the back of the headlight, and just matching up the connectors to their corresponding parts. So once again, the harness that we ran off of the fuse box across the top of the radiator support gets plugged in here, our two-pin turn signal bulb that gets plugged into the two-pin connector on the headlight, and then once again matching up our large brown connector, and there's the click. Finally the four-pin connector. And once again, just making sure to tuck all the wires into the void behind the headlight so that nothing gets interfered with. Sliding into place. And I'm just going to use a 10-millimeter socket and reinstall the factory hardware. Now I'm just going to reinstall my lower plastic piece, line up all my bolt holes. And once again using 10-millimeter and my factory bolts, reinstall.Now I'm just gonna throw in the final headlight bezel, and install it with the factory hardware. And I'm just gonna use my 7-millimeter socket on a ratchet and install these bolts here in the corner of the wheel well. And last but not least, we're gonna install the final push clip into the trim bezel and that will wrap up this install.And that's gonna wrap up this review and install of the Morimoto XB Projector LED Headlights With White Daytime Running Lights for your '15 to '17 F-150. Thanks for watching, and for all things F-150, keep it right here at americantrucks.com.

    Product Information

    Features, Description, Reviews, Q&A, Specs & Installation

    Features

    • Projector-Style Headlights
    • Top-Notch Illumination for Visibility and Safety
    • Bright White LEDs With 2,600 Raw Lumens Per Light
    • Pure White 5,500K Color Temperature
    • UV-Coated Polycarbonate Lens
    • PPS Plastic Housing With Aluminum Heatsinks
    • Equipped With White LED Daytime Running Lights
    • Meets DOT and SAE Standards
    • IP67 Waterproof Rating
    • Plug and Play Installation
    • Sold as a Pair
    • Comes With a 5-Year Warranty
    • Fits All 2015-2017 Ford F-150s and 2018-2020 F-150 Raptors

    Description

    See the Roads Better. With this pair of Morimoto XB Projector LED Headlights With White Daytime Running Lights, your F-150 will be both safer and more stylish. The bright and clear light quality ensures that you can see everything ahead of you easily and clearly, improving your safety at night. At the same time, these lights have a sleek and polished look. They feature neutral, piano-black trims and smoke gray reflectors, which are classy and rugged at the same time.

    Quality Lights, Day and Night. These headlights use Osram Ostar LEDs for the nighttime lights, with a color temperature of 5,500K and a raw lumen output of 2,600 per fixture. This light output allows you to easily see the road ahead, including all possible hazards. The daytime running lights or DRLs are also white LEDs from Osram with a 5,000K color temperature. These lights help draw more attention to your vehicle during the day, thus increasing daytime safety. There are also amber LEDs on top of the housing for the turn signals, which can be set-up as either sequential or solid, depending on your preference.

    Engineered for Longevity. The LEDs of these headlights last virtually forever. They are encased in a lightweight, yet heavy-duty PPS plastic housing, complete with die-cast aluminum heatsinks to ensure that the lights always run cool. Meanwhile, the clear lenses are made from polycarbonate which is UV-coated and impact-proof. These lights are also rated IP67 waterproof, so water and dust penetration won’t be an issue as you conquer the trails.

    Direct Bolt-On Installation. These LED headlights are direct replacements for your truck’s original halogens. The plug and play wiring harness you need for installation is already included in the kit. Installation time is about 1 hour.

    Fulfills DOT, SAE, and FMVSS108 Requirements. Morimoto ensured that these headlights meet DOT, SAE, and FMVSS108 standards. This means that these lights are street-legal and have passed various safety and quality tests.

    Comes With a 5-Year Warranty. These headlights come with a 5-year warranty from Morimoto. You can also remove these lights after installation without voiding the factory warranty. For any questions about the terms and conditions, please get in touch with customer service.

    Application. These Morimoto XB Projector LED Headlights With White Daytime Running Lights are compatible with 2015-2017 Ford F-150s and 2018-2020 F-150 Raptor models with factory halogen or LED headlights.

    Shop All Truck Parts And Accessories

    Shop All Truck Headlights

    Shop All Truck Lights And Cargo Lights

    CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

    Installation & What's in the Box

    Installation Info

    What's in the Box

    • (2) Headlights
    • (2) Wiring Harness
    • XB LED Driver Modules
