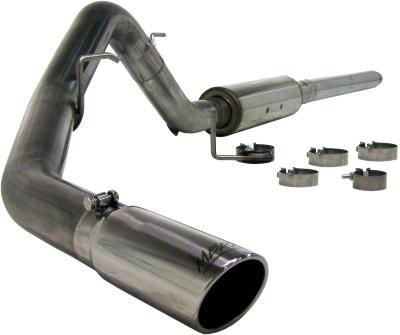

MBRP 3 in. XP Series Single Exhaust System - Side Exit (04-08 5.4L F-150)

$0.00
Market Price $515.99 You Save 12% ($61.00)
Our Price

$454.99 (each)

FREE Shipping

  • Item T13712B

Will this fit your Truck?

Change Vehicle Help?
In Stock Ships same business day.
Ship to: Ashburn - 20149
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    Features, Video & Details

    • Rich, Mellow Exhaust Note
    • Improves Exhaust Flow for More Power
    • 3 in. Mandrel-Bent 409 Stainless Steel Tubing
    • 3.5 in. Polished Stainless Steel Tip
    • Exits Behind the Rear Passenger Tire
    • Bolt-On Installation; Some Trimming May Be Required
    • Fits 2004-2008 5.4L F-150s
    • Designed for SuperCabs with a 6.5 ft. Bed & SuperCrews with a 5.5 ft. or 6.5 ft. Bed

    Review & Installation Video

    Review & Install Video

    So MBRP's 3-inch XP Series Single Exhaust System in the Factory Side Exit Configuration is currently one of the most affordable and one of the easiest to install all stainless steel exhaust systems that you can pick up for your '04 to '08 Triton powered F-150 coming in right around the $400 price point. And you should be checking this system out if you're a fan of something that's really affordable, of something that's going to wake up that motor a little bit more than most exhaust systems, but you still want something that you can live with every day, especially if you daily drive your truck. I say that because as far as volume is concerned, the XP Series crank things up to a solid four out of five on our loudness meter whereas most systems generally fall in the two to three range. Then you got some systems that are crazy five out of five like the Borla ATAK or the Flowmaster Outlaw, but those are really for the guys and gals who want to make a scene every time they're driving around. Maybe that's not you. Maybe you want to turn heads from say a quarter of a mile away, but you still want to be able to have a conversation inside the cab on a regular basis, and if that sounds like you, then the XP Series is the ticket.&nbsp;<BR style="FONT-SIZE: 12px; WHITE-SPACE: normal; WORD-SPACING: 0px; TEXT-TRANSFORM: none; FONT-WEIGHT: 400; COLOR: rgb(51,51,51); FONT-STYLE: normal; TEXT-ALIGN: justify; ORPHANS: 2; WIDOWS: 2; LETTER-SPACING: normal; BACKGROUND-COLOR: rgb(248,248,248); font-variant-ligatures: normal; font-variant-caps: normal; -webkit-text-stroke-width: 0px; text-decoration-style: initial; text-decoration-color: initial"><BR style="FONT-SIZE: 12px; WHITE-SPACE: normal; WORD-SPACING: 0px; TEXT-TRANSFORM: none; FONT-WEIGHT: 400; COLOR: rgb(51,51,51); FONT-STYLE: normal; TEXT-ALIGN: justify; ORPHANS: 2; WIDOWS: 2; LETTER-SPACING: normal; BACKGROUND-COLOR: rgb(248,248,248); font-variant-ligatures: normal; font-variant-caps: normal; -webkit-text-stroke-width: 0px; text-decoration-style: initial; text-decoration-color: initial">And even though this is one of the most affordable stainless systems you can get at around the $450 price point, because it retains that factory style configuration, it bolts up very easily. It retains all your factory hanger locations, so there's no custom modification required. Now you might have to make one cut to the provided midpipe but you can get away with doing that with a grinder or Sawzall, relatively simple hand tools. So for that reason, I'm still gonna give the install a modest two out of three wrenches on my difficulty meter. I'd say it'll probably take you about two to three hours to get this thing bolted on.&nbsp;<BR style="FONT-SIZE: 12px; WHITE-SPACE: normal; WORD-SPACING: 0px; TEXT-TRANSFORM: none; FONT-WEIGHT: 400; COLOR: rgb(51,51,51); FONT-STYLE: normal; TEXT-ALIGN: justify; ORPHANS: 2; WIDOWS: 2; LETTER-SPACING: normal; BACKGROUND-COLOR: rgb(248,248,248); font-variant-ligatures: normal; font-variant-caps: normal; -webkit-text-stroke-width: 0px; text-decoration-style: initial; text-decoration-color: initial"><BR style="FONT-SIZE: 12px; WHITE-SPACE: normal; WORD-SPACING: 0px; TEXT-TRANSFORM: none; FONT-WEIGHT: 400; COLOR: rgb(51,51,51); FONT-STYLE: normal; TEXT-ALIGN: justify; ORPHANS: 2; WIDOWS: 2; LETTER-SPACING: normal; BACKGROUND-COLOR: rgb(248,248,248); font-variant-ligatures: normal; font-variant-caps: normal; -webkit-text-stroke-width: 0px; text-decoration-style: initial; text-decoration-color: initial">Now I said that this thing is stainless steel. It's made out of factory grade 409 stainless, which I'll show you a comparison to our original exhaust system in a little bit, but 409 stainless will definitely stand up to all that mud, rain, snow or whatever else you're driving your truck through. It might develop a little bit of surface corrosion, but you should not have to worry about pinhole leaks or anything of that nature. And where it counts most, MBRP was nice enough to throw in a really cool polished 304 stainless tip. 304 is definitely the best stuff you can buy and that's safe to say that where it counts, this thing will look good for years to come.&nbsp;<BR style="FONT-SIZE: 12px; WHITE-SPACE: normal; WORD-SPACING: 0px; TEXT-TRANSFORM: none; FONT-WEIGHT: 400; COLOR: rgb(51,51,51); FONT-STYLE: normal; TEXT-ALIGN: justify; ORPHANS: 2; WIDOWS: 2; LETTER-SPACING: normal; BACKGROUND-COLOR: rgb(248,248,248); font-variant-ligatures: normal; font-variant-caps: normal; -webkit-text-stroke-width: 0px; text-decoration-style: initial; text-decoration-color: initial"><BR style="FONT-SIZE: 12px; WHITE-SPACE: normal; WORD-SPACING: 0px; TEXT-TRANSFORM: none; FONT-WEIGHT: 400; COLOR: rgb(51,51,51); FONT-STYLE: normal; TEXT-ALIGN: justify; ORPHANS: 2; WIDOWS: 2; LETTER-SPACING: normal; BACKGROUND-COLOR: rgb(248,248,248); font-variant-ligatures: normal; font-variant-caps: normal; -webkit-text-stroke-width: 0px; text-decoration-style: initial; text-decoration-color: initial">So again, if you want one of the most affordable stainless steel exhaust system for your Triton powered F-150 and you want to get a little bit more volume than other systems, then you should be checking out the XP Series. And if you decide to pull the trigger on this one, you can come back to this video because I'm gonna show you guys what tools you need to get the job done. I'm actually gonna walk you through that entire install step by step.&nbsp;<BR style="FONT-SIZE: 12px; WHITE-SPACE: normal; WORD-SPACING: 0px; TEXT-TRANSFORM: none; FONT-WEIGHT: 400; COLOR: rgb(51,51,51); FONT-STYLE: normal; TEXT-ALIGN: justify; ORPHANS: 2; WIDOWS: 2; LETTER-SPACING: normal; BACKGROUND-COLOR: rgb(248,248,248); font-variant-ligatures: normal; font-variant-caps: normal; -webkit-text-stroke-width: 0px; text-decoration-style: initial; text-decoration-color: initial"><BR style="FONT-SIZE: 12px; WHITE-SPACE: normal; WORD-SPACING: 0px; TEXT-TRANSFORM: none; FONT-WEIGHT: 400; COLOR: rgb(51,51,51); FONT-STYLE: normal; TEXT-ALIGN: justify; ORPHANS: 2; WIDOWS: 2; LETTER-SPACING: normal; BACKGROUND-COLOR: rgb(248,248,248); font-variant-ligatures: normal; font-variant-caps: normal; -webkit-text-stroke-width: 0px; text-decoration-style: initial; text-decoration-color: initial">All right, guys. To install our MBRP system, at minimum, you'll need a standard drive ratchet with a 15-millimeter deep socket and a 5/16 Allen key or Allen head socket. Again, depending on your cab and bed length, you may need a measuring implement and a cutting implement just to cut that midpipe. And optional but very helpful tools include an impact gun, some spray lubricant, a pry bar, and a dead blow mallet.&nbsp;<BR style="FONT-SIZE: 12px; WHITE-SPACE: normal; WORD-SPACING: 0px; TEXT-TRANSFORM: none; FONT-WEIGHT: 400; COLOR: rgb(51,51,51); FONT-STYLE: normal; TEXT-ALIGN: justify; ORPHANS: 2; WIDOWS: 2; LETTER-SPACING: normal; BACKGROUND-COLOR: rgb(248,248,248); font-variant-ligatures: normal; font-variant-caps: normal; -webkit-text-stroke-width: 0px; text-decoration-style: initial; text-decoration-color: initial"><BR style="FONT-SIZE: 12px; WHITE-SPACE: normal; WORD-SPACING: 0px; TEXT-TRANSFORM: none; FONT-WEIGHT: 400; COLOR: rgb(51,51,51); FONT-STYLE: normal; TEXT-ALIGN: justify; ORPHANS: 2; WIDOWS: 2; LETTER-SPACING: normal; BACKGROUND-COLOR: rgb(248,248,248); font-variant-ligatures: normal; font-variant-caps: normal; -webkit-text-stroke-width: 0px; text-decoration-style: initial; text-decoration-color: initial">All right, so once you found yourself under the truck, the first thing you have to do is loosen this barrel clamp just on the Y-pipe here that connects the factory cat-back. You'll need a 15-millimeter deep socket to loosen both of these nuts. Cool. Now that we've loosened up that barrel clamp, the next step is spraying down the three rubber isolators securing the exhaust hangers on our exhaust to the vehicle itself. Once you sprayed those down and let them soak for a little bit, I'll explain how to actually push the entire cat-back out towards the rear of the truck so you can free up those rubber isolators then you can pull the entire system out from underneath the truck. Very helpful to have a friend when you get to that point, but I'll show you in a little bit.&nbsp;<BR style="FONT-SIZE: 12px; WHITE-SPACE: normal; WORD-SPACING: 0px; TEXT-TRANSFORM: none; FONT-WEIGHT: 400; COLOR: rgb(51,51,51); FONT-STYLE: normal; TEXT-ALIGN: justify; ORPHANS: 2; WIDOWS: 2; LETTER-SPACING: normal; BACKGROUND-COLOR: rgb(248,248,248); font-variant-ligatures: normal; font-variant-caps: normal; -webkit-text-stroke-width: 0px; text-decoration-style: initial; text-decoration-color: initial"><BR style="FONT-SIZE: 12px; WHITE-SPACE: normal; WORD-SPACING: 0px; TEXT-TRANSFORM: none; FONT-WEIGHT: 400; COLOR: rgb(51,51,51); FONT-STYLE: normal; TEXT-ALIGN: justify; ORPHANS: 2; WIDOWS: 2; LETTER-SPACING: normal; BACKGROUND-COLOR: rgb(248,248,248); font-variant-ligatures: normal; font-variant-caps: normal; -webkit-text-stroke-width: 0px; text-decoration-style: initial; text-decoration-color: initial">All right, so once you've sprayed down all those exhaust hangers and let them soak for a minute, now comes the fun part and that's removing the cat-back and getting it freed up. Obviously, your truck probably has some miles on it, probably has some corrosion in there, that's why we wanted to spray those down, let them soak for a minute. So what you're gonna do, go ahead and grab a dead blow mallet or a pry bar or just use your muscles. You're gonna grab hold of the muffler, you're gonna get some leverage on it, push it back towards the rear of the truck. Continue doing so until all those exhaust hangers come free of those rubber isolators. When you do that, the entire exhaust system is gonna want to drop down. So again, it's helpful to have a friend handy if possible. If not, take your time. Keep a good hold on it with both arms. Let the over axle pipe rest on the axle itself. Continue pushing the exhaust back towards the rear of the truck. That should give you enough room to get that midpipe down. You should be able to pull the entire thing out towards the front of the truck and you can shimmy it out from underneath. Sounds a little confusing, so I'll show you how it's done.&nbsp;<BR style="FONT-SIZE: 12px; WHITE-SPACE: normal; WORD-SPACING: 0px; TEXT-TRANSFORM: none; FONT-WEIGHT: 400; COLOR: rgb(51,51,51); FONT-STYLE: normal; TEXT-ALIGN: justify; ORPHANS: 2; WIDOWS: 2; LETTER-SPACING: normal; BACKGROUND-COLOR: rgb(248,248,248); font-variant-ligatures: normal; font-variant-caps: normal; -webkit-text-stroke-width: 0px; text-decoration-style: initial; text-decoration-color: initial"><BR style="FONT-SIZE: 12px; WHITE-SPACE: normal; WORD-SPACING: 0px; TEXT-TRANSFORM: none; FONT-WEIGHT: 400; COLOR: rgb(51,51,51); FONT-STYLE: normal; TEXT-ALIGN: justify; ORPHANS: 2; WIDOWS: 2; LETTER-SPACING: normal; BACKGROUND-COLOR: rgb(248,248,248); font-variant-ligatures: normal; font-variant-caps: normal; -webkit-text-stroke-width: 0px; text-decoration-style: initial; text-decoration-color: initial">All right, so our factory system is removed, now it's time for us to throw the new one on. But before we do that, obviously it's a good idea to piece it together so you can see how supposed to fit on the truck, and clearly because this is a factory exit configuration, it's gonna install the same way our factory system came off. We're reusing all of our hanger locations so there's no custom modification necessary. And the XP Series system is also made out of factory grade 409 stainless. You can see our factory system has plenty of miles on it, but it's holding up just fine, and we're actually on the East Coast where we see tons of snow and road salt. So it's safe to say this thing will stand up to any abuse, especially if you daily drive the truck or take it off-road or anything like that. And what's more, I really liked that MBRP threw in a 304 stainless steel tip. That's the highest quality steel you can get, so you don't have to worry about that thing looking nasty anytime soon. Now you may have to make some cuts to the provided midpipe here but the instructions detail that based on your cab and bed length. We're working with a SuperCab with a six and a half foot box, so we get to throw our midpipe right on. So I'll meet you guys underneath the truck and I'll show you how to get this installed.&nbsp;<BR style="FONT-SIZE: 12px; WHITE-SPACE: normal; WORD-SPACING: 0px; TEXT-TRANSFORM: none; FONT-WEIGHT: 400; COLOR: rgb(51,51,51); FONT-STYLE: normal; TEXT-ALIGN: justify; ORPHANS: 2; WIDOWS: 2; LETTER-SPACING: normal; BACKGROUND-COLOR: rgb(248,248,248); font-variant-ligatures: normal; font-variant-caps: normal; -webkit-text-stroke-width: 0px; text-decoration-style: initial; text-decoration-color: initial"><BR style="FONT-SIZE: 12px; WHITE-SPACE: normal; WORD-SPACING: 0px; TEXT-TRANSFORM: none; FONT-WEIGHT: 400; COLOR: rgb(51,51,51); FONT-STYLE: normal; TEXT-ALIGN: justify; ORPHANS: 2; WIDOWS: 2; LETTER-SPACING: normal; BACKGROUND-COLOR: rgb(248,248,248); font-variant-ligatures: normal; font-variant-caps: normal; -webkit-text-stroke-width: 0px; text-decoration-style: initial; text-decoration-color: initial">All right, so when you go to throw your midpipe on your Y- pipe, you want to make sure you grab that small band clamp provided in the kit. That's actually gonna be securing the midpipe to the Y-pipe and you'll get to use that same 15 millimeter deep sockets for all the band clamps in the kit. All right, now we can throw our muffler in place. Before you do that, you'll need to grab two of the clamps provided in the kit and one of those clamps is gonna be the hanger combo. You'll slide the hanger combo into that factory rubber isolator that the original muffler was secured to then throw that second 3-inch clamp onto the midpipe itself and you're going to be using that one to tighten down the muffler.&nbsp;<BR style="FONT-SIZE: 12px; WHITE-SPACE: normal; WORD-SPACING: 0px; TEXT-TRANSFORM: none; FONT-WEIGHT: 400; COLOR: rgb(51,51,51); FONT-STYLE: normal; TEXT-ALIGN: justify; ORPHANS: 2; WIDOWS: 2; LETTER-SPACING: normal; BACKGROUND-COLOR: rgb(248,248,248); font-variant-ligatures: normal; font-variant-caps: normal; -webkit-text-stroke-width: 0px; text-decoration-style: initial; text-decoration-color: initial"><BR style="FONT-SIZE: 12px; WHITE-SPACE: normal; WORD-SPACING: 0px; TEXT-TRANSFORM: none; FONT-WEIGHT: 400; COLOR: rgb(51,51,51); FONT-STYLE: normal; TEXT-ALIGN: justify; ORPHANS: 2; WIDOWS: 2; LETTER-SPACING: normal; BACKGROUND-COLOR: rgb(248,248,248); font-variant-ligatures: normal; font-variant-caps: normal; -webkit-text-stroke-width: 0px; text-decoration-style: initial; text-decoration-color: initial">All right. Now that our muffler is in place, we're gonna throw on our over axle pipe as well as our tailpipe. Again, the same process as before. Spray down that rubber isolator and make it easy to get that hanger in place. Go ahead and mate all those slip fit connections together and make sure you got band clamps on everything so you can tighten them down with your 15-millimeter deep socket.&nbsp;<BR style="FONT-SIZE: 12px; WHITE-SPACE: normal; WORD-SPACING: 0px; TEXT-TRANSFORM: none; FONT-WEIGHT: 400; COLOR: rgb(51,51,51); FONT-STYLE: normal; TEXT-ALIGN: justify; ORPHANS: 2; WIDOWS: 2; LETTER-SPACING: normal; BACKGROUND-COLOR: rgb(248,248,248); font-variant-ligatures: normal; font-variant-caps: normal; -webkit-text-stroke-width: 0px; text-decoration-style: initial; text-decoration-color: initial"><BR style="FONT-SIZE: 12px; WHITE-SPACE: normal; WORD-SPACING: 0px; TEXT-TRANSFORM: none; FONT-WEIGHT: 400; COLOR: rgb(51,51,51); FONT-STYLE: normal; TEXT-ALIGN: justify; ORPHANS: 2; WIDOWS: 2; LETTER-SPACING: normal; BACKGROUND-COLOR: rgb(248,248,248); font-variant-ligatures: normal; font-variant-caps: normal; -webkit-text-stroke-width: 0px; text-decoration-style: initial; text-decoration-color: initial">All right. With your tailpipe installed, you can throw the exhaust tip in place, and in order to tighten down the exhaust tip, you'll need a 5/16 Allen key or a 5/16 Allen head socket. So once you got your exhaust tip clamped down, go ahead and double check all your connections, double check all your tubing, make sure it's not going to rattle anywhere, and that should wrap up the install. And that also wraps up my review of the MBRP 3-inch XP Series Single Exhaust System in the Factory Side Exit Configuration fitting your '04 to '08 Triton powered F150. I'm Travis, thanks for watching. And for all things F-150 keep it right here at americantrucks.com.

    Rounded Race Tone. The MBRP XP Series 3 in. Cat-Back Exhaust is the choice for 5.4L F-150 owners who want a rich sound without the volume. This exhaust system delivers a race rumble, without the amplified sound. A few decibels quieter than the average exhaust upgrade, this kit is a great middle ground for drivers who want the best of both.

    Strong and Efficient. With MBRP’s XP Series 3 in. Cat-Back Exhaust, you’ll feel the overall boost in performance. The increased airflow enhances the vehicle’s horsepower, torque, and fuel economy for a ride that goes a little easier on the environment–and your wallet.

    Reliable and Stylish. This cat-back system ensures a durable exhaust system featuring 3-inch mandrel-bent piping made with 409 stainless steel, coated in a natural finish, for durability no matter the daily mile count. A single inlet/outlet bullet-style muffler hooks up to the 3.5-inch stainless steel rear exhaust, the MBRP logo engraved into its polished tip.

    Easy-to-Install Upgrade. This upgrade for your F-150 factory exhaust should be a quick bolt-on installation. To install the XP Series Cat-Back Exhaust, basic tools and OEM hangers will do the trick, and some pipe cutting may be necessary, depending on your cab and bed dimensions.

    Application. This MBRP XP Series 3 in. Single Side Exit Cat-Back Exhaust is specifically designed to fit the 2004 to 2008 5.4L F-150s with the following Cab and Bed Sizes:SuperCab with the 6.5 ft. BedSuperCrew with the 5.5 ft. BedSuperCrew with the 6.5 ft. Bed

    Fitment: 2004 2005 2006 2007 2008 Details

    MPN# S5200409

    CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

    What's in the Box
    • (1) Extension Pipe
    • (1) Midpipe
    • (1) Muffler Assembly
    • (1) Tailpipe
    • (1) 3-1/2" Hanger Clamp
    • (1) 2-1/2" Band Clamp
    • (3) 3-1/2" Band Clamp
    • (1) Exhaust Tip
    Installation Info
    Tech Specs
    Will it fit my F-150?

      Customer Photos

        Q & A

        No questions about this product yet.

        Ask the First Question

          Customer Reviews (3) Write a Review

          Overall Rating 5

          out of 5 stars

          Installation Time:Afternoon

          • Loudness / Volume 3 3
          • Exhaust Note 4.333333 4.3
          • Fit &amp; Finish 4.666667 4.7
          • Bang For Your Buck 4.333333 4.3



          • 5/5

            Installation Time: Afternoon

            October 07, 2018

            Very satisfied!

            Sounds great, easy to install. Fast shipping, everything was great.

            BrandonG

            Year: 2008 Submodel: FX4 Engine: 5.4L V8

            Helpful (9)

          • 5/5

            November 20, 2017

            Love it! Great medium volume tone

            This kit is well planned. All parts needed are there including a couple of extras for different wheel bases. It looks good and the tip that looked to large to me is actually just right. No bad drones and is just right for the guy that needs sound but not being pulled over either. BTW per manufacturer claims 14 horse and some torque. Took 1.5 hours to install but I was slumming it so an hour is easy. Advice is to use SAWSALL to make cuts in old pipe just forward of hangers and PB BLASTER sprayed day before on all clamps and pipe connections. I used AIR CHISEL on clamp bolts as they had corroded to the point that a socket did not have a stabil surface or size to rely on. If you use SAWSALL like I did then only the front clamp needs to be messed with. Obviously I didn't care about old system as your new system will last for ever.

            SHAGGY

            Year: 2006 Engine: 5.4L V8

            Helpful (11)

          • 5/5

            Installation Time: Less than 1 Hour

            February 21, 2017

            Great sound

            If your looking for a good deep tone but dont want a loud annoying exhaust then this is the system for you. Easy to install took less than an hour. The hardest part was removing the old system

            Darkhorse

            Year: 2006 Engine: 5.4L V8

            Helpful (11)
