Hey, what's going on guys? Adam here with americanmuscle.com. Today, I'm bringing you a detailed overview of the Iron Cross front bumper equipped with a front push bar fitting all '09 to '14 F-150s. So in this video guys, I'll be touching on a couple different things like the materials that make up this top-of-the-line protective bumper, as well as the functionality and styling, and I'll even walk you through the overview of the installation, which I'll tell you upfront is gonna be a one out of three wrenches on the difficulty meter and will not require any drilling or modification to your factory front bumper. So let's jump right into it.
So the Iron Cross front bumper here equipped with a push bar is gonna be for the '09 to '14 F-150 owner out there, looking to swap out their wimpy stock factory bumper to push it up with a beefy, top-of-the-line protective bumper out here, good for off-road and on-road use against trail hazards and things of that nature. Overall, this thing is a monster of a bumper that's gonna be for the guys out there looking to go with the best of the best protection from the bumper all around.
So this bumper I have with me today is a part of the HD or heavy-duty series that Iron Cross offers. Basically, it's a line of bumpers, each of which have their own perks. Now the base model bumper in this series is obviously going to be the least expensive and doesn't come with a lot of the features that this one does here. Now this one here is the push bar series, which will be next up above the base model. Obviously, it comes with a little more protection for your top-end grill, which is great for mounting a light. Now after that, there will be the full guard, which will provide the maximum amount of protection for your top-end grill and obviously, will be the most expensive in the series.
All these options I just mentioned in the HD series will all pretty much be made of the same quality material. They'll all be made of a heavy-duty 10-gauge steel plating that were CNC laser-cut and all hand-welded right here in the USA. They're all double hand-welded inside and out, and completed in a textured powder coat black finish. Now obviously, this is for some good looks, but this will really hold up against any and all trail hazards on and off road.
Now getting to the functionality, I said I'd mention in the video. This one here is obviously good at protecting almost the entire front end of your truck, which is great for guys on and off road. But as you can see, there are two winch mounting points capable of holding up to 12,500 pounds, especially useful for the guys out there doing extreme off-roading and wheeling. If you want a little bit more flexibility with this option here, you can check out the interchangeable two-inch receiver plate that Iron Cross offers as well, which can be accepted by this bumper here, and it will take a class three hitch or a removable winch mount.
Now the list just keeps going on and on with the features from the Iron Cross HD series bumpers like I have here today. Now, in addition to all of that, you also get two beefy D-ring mounts, which is great for a set of shackles, great for recovery for the off-roading guys out there, and it's also with the aggressive looks as well. Now, in addition to all that, I do wanna say that the shackles are not included in the kit. But you can pick those up separately to work in conjunction with your bumper.
Now, to keep adding on to the functionality here, as I said, this is the push bar option, which, of course, adds a lot of protection to your upper front grill. But it's a great spot to mount some lighting, we've seen some guys do spot and fog lights up there or even an LED bar. Now in addition to that, you can see there are four-inch recess cutouts for additional lighting. You can even pick up the perfect size fog lights available on americanmuscle.com to take full advantage of all the features this bumper has to offer.
Price wise for the push bar option from Iron Cross, expect to be spending just north of a thousand dollars, which of course, is a little bit pricy for a bumper, but you wanna keep in mind, you're getting some of the best of the best protection for the front end of your truck, with the exception of the full guard, which you can check out on the website as well, if you're interested in maximizing the protection. Now, of course I will say, this will be more for the guys out there not too concerned with the price tag, but more concerned with adding a badass, bulletproof setup to the front of your rig.
Now, I do wanna point one thing out. Now, this wouldn't be a make it or break it for me, but it might be for some of you guys out there. As you can see, Iron Cross actually embedded their name and logo on the front and bottom here of the actual bumper. Now, some people might not like that, some people might not care. Me, personally, I think it actually adds to the badassery of the front bumper, so it's up to you. It's really all personal preference.
Now, I'm gonna start getting into the install portion, and I do wanna reiterate that this will not require any drilling or any modification to your factory front bumper. It will come with a quarter-inch steel brackets and all of the hardware necessary to get the job done, and I will say upfront that it might require one or two extra helping hands, just to make sure you can get this heavy thing up. It is a monster of a bumper, and a very heavy one at that. Now, I will say that you will be spending about an hour or two on the installation, and I will give this a one out of three wrenches on the difficulty meter, like I said in the beginning. And even though it's a heavy thing, you might need some helping hands with, it is a very simple install, which is why I give it that rating.
Now to kick things off, you wanna remove your factory front bumper and disconnect your fog lights before doing so. Now, there'll be a couple bolts by the splash guards, by your head lights and the lights themselves, and then a few more by the inner quarter panel, which you may need an extension for your ratchet just to get to. Next you'll remove the bolts by the plastic bumper bracket and then two more by the frame holding the bumper to it. It may be easier just to use a floor jack or some helping hands just to hold the bumper up while you do all this. Now lastly, you'll be putting the frame mount for the frame using the hardware provided, and aligning the front bumper up, and attaching it using the bolts, tightening everything down to complete the install.
So just to quickly wrap things up guys, if you're the owner of an '09 to '14 F-150 and you're looking for one of the most protective bumpers on the market to replace your wimpy stock bumper that also comes with a lot of extra features, you might wanna check out the Iron Cross front bumper with the push bar option I have here, always available right here at americanmuscle.com.
Recovery-Ready, Trail-Hardy Bumper.

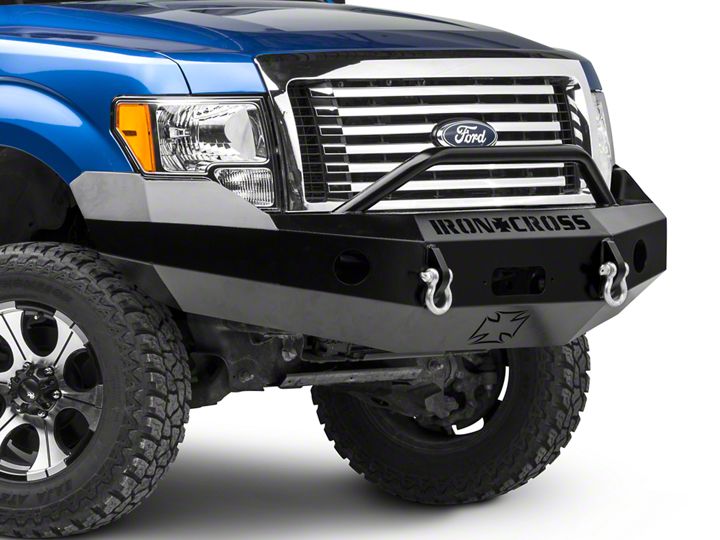

Representing the medium-duty 2009-2014 F-150 bumper from Iron Cross, the Iron Cross Push Front Bumper offers good protection to the front of your truck with 10-gauge steel plating (a bit thicker than 1/8”). Featuring a 2” diameter push bar that helps deflect objects like branches that might otherwise poke right into your truck’s grille, this bumper increases the confidence with which you can drive off-road. Suspension fatigue is prevented by weight-reducing construction features that, at the same time, don’t compromise strength. The bumper also includes a stout 1/4” steel winch plate that can manage a standard winch with up to a 12,500 lb capacity, with a central fairlead opening, so that you can haul your F-150 out of the mud or other tricky situations.
Carries a Pair of Lights.
While it won’t fit the factory fog lights, the Iron Cross Push Front Bumper is equipped to mount two 4” auxiliary lights of your choosing. These lights must be bought separately, but can be fog lights, driving lights, etc. The housings are heavy-duty and recessed to provide maximum protection to the lamps.
Constructed for Reliability.
Built in the USA with patriotic dedication, the Iron Cross Push Front Bumper features 10-gauge steel construction throughout, except for the 0.25” steel plate mounting brackets included with the kit. A textured gloss black powder-coat ensures that the bumper both pleases the eye and won’t succumb easily to rust. CNC laser-cutting ensures an excellent fit and sturdy mount.
Bolts On without a Hassle.
Like all of Iron Cross’ bumpers, the Push Front Bumper is made to fit onto your F-150 in a straightforward manner. This means a no-cut, drill-free design that bolts onto the stock mounting points with the supplied hardware. The kit includes 1/4” thick upgraded brackets for a firmer installation. Fitment is a twoperson task due to the component’s weight.
Four Month Warranty.
The Iron Cross Push Front Bumper carries a 4-month limited warranty against defects from the manufacturer.
This Iron Cross Push Front Bumper is designed to fit on all 2009-2014 Ford F-150s, excluding Raptors. Freight Notes. Freight items can only be shipped within the continental 48 states, no expedited methods. What is freight shipping? Your Answers are Right Here!.
Freight Notes. Freight items can only be shipped within the continental 48 states, no expedited methods. What is freight shipping? Your Answers are Right Here!.
- What's in the Box
- Installation Info
Installation Time: (approx) 2 Hours
Difficulty Level:Light to Moderate mechanical skill required.
- Will it fit my F-150?
- 3.5L V6 EcoBoost - 11, 12, 13, 14
- 3.7L V6 - 11, 12, 13, 14
- 4.6L V8 - 09, 10
- 5.0L V8 - 11, 12, 13, 14
- 5.4L V8 - 09, 10
- 6.2L V8 - 11, 12, 13, 14
