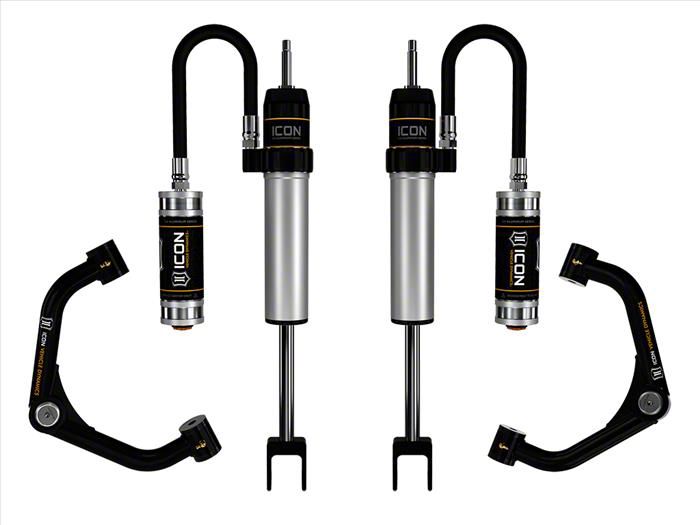

ICON Vehicle Dynamics V.S. 2.5 Series Remote Reservoir Front Shock System with Tubular Upper Control Arms for 0 to 2-Inch Lift (20-26 Sierra 2500 HD)Find parts that fit my vehicle

Item HG17456
Product Image
5 Reviews
Our Price

$2,375.95

Military, Medical & First Responders $118.80 Available in AT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Take The Performance Of Your 2020-Up GM HD Truck To New Levels With The Delta Joint Tubular Upper Control Arm Kit
        • _x000D_
      • All Tubular Upper Control Arms Are Constructed From CNC Bent 1026 DOM Steel Tubing And Powder Coated To A Semi-Gloss Black Finish For Maximum Strength And Corrosion Resistance
        • _x000D_
      • Engineered With Built-In Caster Correction For Optimal Alignment Specifications And Confidence Inspiring Handling
        • _x000D_
      • Increased Wheel Travel When Paired With 2.5 Series Shock Absorbers For Superior Performance And Ride Quality
        • _x000D_
      • Features Patented Delta Joint Heavy-Duty High Angle Ball Joint That Combines Durability And Performance Of Traditional Uniball
        • _x000D_
      • Delta Joint Features Zinc Plated Housing For Corrosion Resistance And Tough Grease Seal To Keep Out Contaminants
        • _x000D_
      • Metal On Metal Construction And Greaseable Design For Increased Longevity And Noise-Free Operation
        • _x000D_
      • No Longer Offered As Individual Components, Only Available As A Complete System With ICON Shock Absorbers
        • _x000D_
      • Includes Vehicle Specific 2.5 Aluminum Series Shocks Designed For Outstanding Off-Road Performance And Smooth Street Ride
        • _x000D_
      • Shocks Are 100 Percent Rebuildable And Revalveable With Unique 6061-Billet Aluminum Manifold Creating Internal Bump Zone For Additional Damping Force
        • _x000D_
      • Remote Reservoir Design Improves Heat Dissipation And Shock Performance During Heavy Use
        • _x000D_
      • Patent Number US 10,731,700
        • _x000D_
      • Premium Grade 5WT Shock Oil For Consistent Damping In Wide Temperature Range
        • _x000D_
      • 7/8 Inch Diameter Induction Hardened Chrome Plated Shock Shaft
        • _x000D_
      • One-Piece Impact Extruded Aluminum Cylinders For Corrosion Resistance
        • _x000D_
      • 6061 Aircraft Grade Aluminum CNC Machined Components
        • _x000D_
      • Built-In Caster Correction
        • _x000D_
      • Serviceable Dual Stage Bushings With CNC Machined Bushing Housings And Sleeves
        • _x000D_
      • Black Semi-Gloss Powder Coat Finish
        • _x000D_
      • One-Piece Digressive Piston Design With Vehicle Specific Valving For On And Off-Road Performance
        • _x000D_
      • Nitrogen Charged Monotube Design With Remote Reservoir
        • _x000D_
      • All 2.5 Series Piggyback And Remote Reservoir Shocks Can Be Upgraded To Compression Damping Control Valve (CDCV)
        • _x000D_
      • Recommended Aftermarket Wheels Include 18x9 And 20x9 ICON Alloys With 5.5 Inch Backspace / 12 Millimeter Offset
        • _x000D_
      • Recommended Aftermarket Tires Are 35 Inch By 12.50 Inch, Larger Tires May Require Fender Trimming And Modifications
        • _x000D_
      • Additional Down Travel May Cause Clearance Issues Between Sway Bar And Stock Splash Guard, Splash Guard Kit Recommended
        • _x000D_
      • Weight 50 Pounds
        • _x000D_
      • Fits 2020-2026 Sierra 2500 HD
        • _x000D_

      Description

      Advanced Suspension Upgrade. The ICON Vehicle Dynamics V.S. 2.5 Series Remote Reservoir Front Shock System with Tubular Upper Control Arms for 0 to 2-Inch Lift significantly enhances suspension performance for your 2020-Up GM HD truck by improving handling, increasing wheel travel, and delivering superior ride quality both on and off the road. This system offers strength and tunable shock performance optimized for heavy-duty applications.

      _x000D__x000D_

      Construction and Appearance. The system features tubular upper control arms made from CNC bent 1026 DOM steel tubing, finished with a semi-gloss black powder coat for corrosion resistance and durability. The shocks include CNC machined 6061 aircraft grade aluminum components with one-piece impact extruded aluminum cylinders. The patented Delta Joint features a zinc plated housing with a grease seal to ensure longevity and low maintenance. The design is robust yet refined, suitable for demanding environments.

      _x000D__x000D_

      Installation. Installation requires moderate mechanical skill but does not require drilling, making it straightforward for most experienced technicians. The components are supplied as a complete system, ensuring proper fit and performance without the need for additional modifications besides possible splash guard adjustments for increased wheel travel.

      _x000D__x000D_

      Warranty. The system includes a comprehensive warranty that protects against manufacturer defects and provides peace of mind.

      _x000D__x000D_

      Application. Specifically designed to fit the 2020 through 2026 Sierra 2500 HD, this system ensures perfect compatibility with your vehicle, providing optimum suspension performance.

      ICON Vehicle Dynamics 78734T
