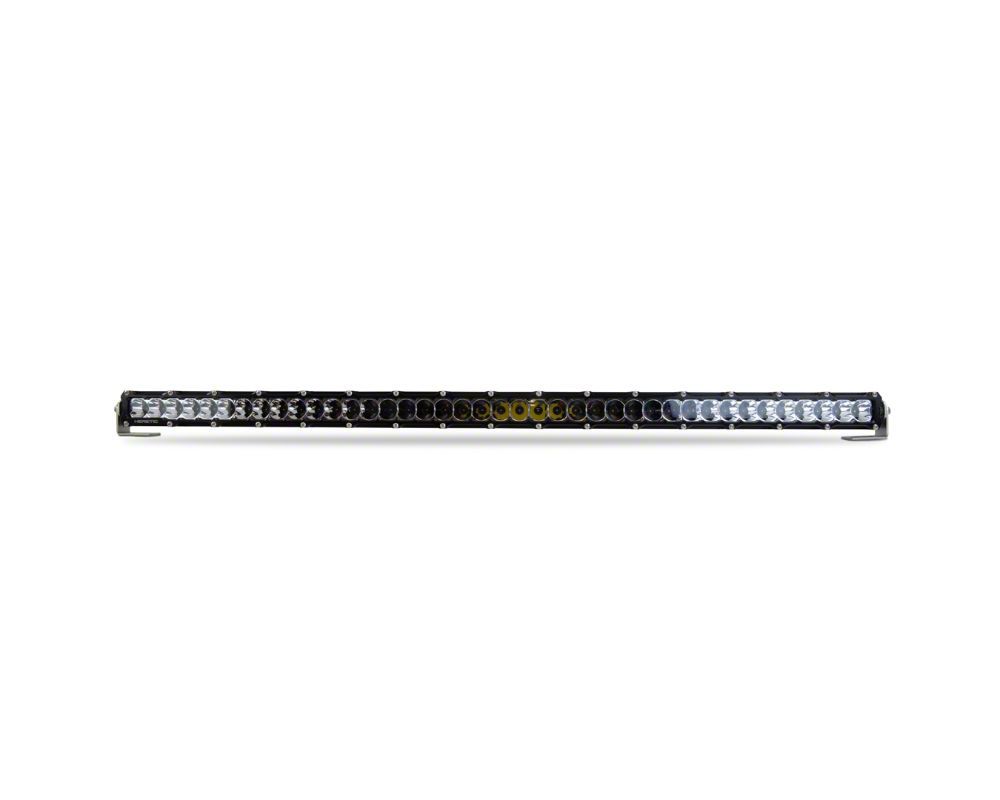

Heretic Studios 40-Inch LED Light Bar; Spot Beam (Universal; Some Adaptation May Be Required)

Item T571133
Product Image
$0.00
Want $10? Write one of the first 5 reviews 4.7 Heretic Studios Lights product ratings
Our Price

$949.99 each

Military, Medical & First Responders Earn $47.50 in AT Cash Rewards. Get Verified

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

      • LED Light Bar Spot Beam
      • CNC Machined 6061 Aircraft‑Grade Billet Aluminum Housing
      • Includes Heavy‑Duty Stainless Steel Mounting Brackets—Real Length: 42″
      • (40) 6‑Watt CREE LEDs Delivering 240 W Total Power
      • High-Performance 6‑Series Circuit Boards for Heat Control and Longevity
      • IP68 Waterproof and Dust-Tight Rating
      • Single-Block Seamless Construction to Seal Out Elements
      • Peak Output 270–30,000 Lumens
      • Selectable Beam Options: Spot, Flood or Combo
      • Clear Lens With Custom TIR Optics for Optimized Light Pattern
      • Operating Voltage 9–36 V DC, 25.4 A at 13.8 V
      • Amp Draw — 25.4 A Peak
      • Dimensions: Light‑Only 41″ × 1.5″ × 2″; With Bracket 42″ × 1.5″ × 2.4″
      • Light Distance: 1 817 m (Spot), 838 m (Flood), 1 504 m (Combo)
      • Patented, Designed & Assembled in Centerville, Utah (USA)
      • One-Hour Installation
      • Limited Lifetime Warranty
      • Universal Fitment

      Description

      Massive 40‑Inch High‑Output LED Array. The Heretic Studios 40‑Inch LED Light Bar delivers a wide, powerful beam pattern using its densely packed LED configuration. This bar provides exceptional brightness with far-reaching center beam projection and broad peripheral coverage—perfect for illuminating trails, work sites, or nighttime escapades. Whether you're driving off-road or working in low-light conditions, this light bar ensures maximum visibility and safety.

      Precision-Engineered Optics for Optimal Light Distribution. Equipped with advanced reflector and lens technology, the Heretic Studios 40‑Inch LED Light Bar ensures each LED element projects light efficiently, minimizing glare and unwanted scatter. The result is a sharp cutoff with uniform illumination across its full width, delivering consistent visibility without blinding oncoming traffic or creating distracting hot spots.

      Built to Last. Built to endure the toughest conditions, the Heretic Studios 40‑Inch LED Light Bar features a solid aluminum housing that's corrosion-resistant and structurally robust. Sealed to IP68 standards, it offers superior protection against dust and water—ideal for muddy trails, rainy weather, or power-washing routines. This bar is designed to handle abuse without compromising performance.

      Thermal Management for Sustained, Efficient Performance. Thermal performance is optimized via an integrated heat-dissipating design that draws heat away from the LEDs and housing. This effective cooling mechanism prevents thermal throttling, maintains brightness during extended use, and extends the life of the light bar—making it reliable on long nighttime drives or continuous work shifts.

      Installation. Putting this Heretic Studios 40-Inch LED Light Bar; Spot Beam on your vehicle takes 2 hours to install.

      Warranty. There is a limited lifetime warranty on this product.

      Application. The Heretic Studios 40-Inch LED Light Bar; Spot Beam offers universal fitment.

      Heretic Studios 54002

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 1 Hour

      Difficulty Level:

      Simple installation for anyone.

      Installation Guides

        No guide available for this part yet.

      What's in the Box

      • (1) Forty‑Inch LED Light Bar (Spot Beam Model)
      • (2) Stainless Steel Mounting Brackets
      • (1) Mounting Hardware Kit
      • (1) Pre‑Installed Pigtail Cable (+/– Leads)
