Fuelab In-Tank Twin Screw Brushless Fuel Pump Kit; -8AN; 1100 LPH (Universal; Some Adaptation May Be Required)

Item HG62030
Product Image
1 Reviews of Fuelab
Our Price

$1,574.00

Military, Medical & First Responders $78.70 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features

        _x000D_

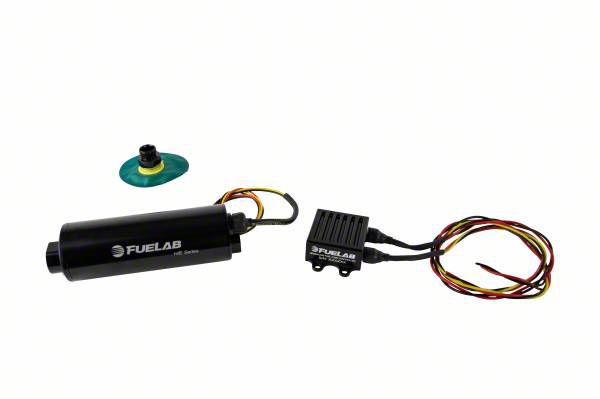

      • In-Tank Fuel Pump Kit Contains 1100LPH Twin Screw Brushless Pump, Remote Mount PWM Controller, And 65 Micron Straining Filter
        • _x000D_
      • Limited Lifetime Warranty
        • _x000D_
      • Compatible With Gasoline, Diesel, Methanol, And Ethanol
        • _x000D_
      • Twin Screw Rotor Pumping Mechanism
        • _x000D_
      • 125 PSI Max Operating Pressure
        • _x000D_
      • Supports 2800 HP Power At Continuous Speed For Naturally Aspirated Pump Gas Engines
        • _x000D_
      • Higher Efficiency Means Less Current Draw And Less Noise
        • _x000D_
      • Superior Priming Capabilities
        • _x000D_
      • Greater Resistance To Cavitation And Vapor Lock
        • _x000D_
      • Lightweight Super-Efficient DC Brushless Motor To Minimize Current Draw
        • _x000D_
      • Powerful High Flux Density Neodymium Rare Earth Magnets
        • _x000D_
      • No Motor Brushes To Wear Out Or Corrode; Low-Sulfur Diesel Compatible
        • _x000D_
      • Wet Motor Design With No Dynamic Shaft Seals That Can Wear Out
        • _x000D_
      • 12 To 16 Volt Vehicle Electrical System Compatibility
        • _x000D_
      • Model 72006 Pump Controller Included For Full Speed Or PWM Input Speed Control
        • _x000D_
      • Continuous Duty Motor Speed
        • _x000D_
      • Compact Lightweight Design, Weighing Less Than 3 lbs
        • _x000D_
      • Billet Aluminum Construction With Anodize Per MIL-A-8625 Type II
        • _x000D_
      • Long Life Multi-Fuel Compatible Fluorosilicone Static Seals
        • _x000D_
      • Accepts Standard Or Port Style -8AN Fittings
        • _x000D_
      • Compatible With Most Aftermarket ECUs With PWM Output Frequency From 100 Hz To 5000 Hz
        • _x000D_
      • Fits Universal Applications; Some Adaptation May Be Required
        • _x000D_

      Description

      High-Performance Fuel Delivery. The Fuelab In-Tank Twin Screw Brushless Fuel Pump Kit (-8AN, 1100 LPH) delivers efficient and reliable fuel supply for high horsepower applications. Designed to support up to 2800 HP at continuous speed, it is compatible with multiple fuels including gasoline, diesel, methanol, and ethanol. This pump kit ensures stable fuel flow and prevents vapor lock in demanding engine setups.

      _x000D__x000D_

      Construction and Appearance. The pump features a compact and lightweight design under 3 pounds with billet aluminum construction. The aluminum is anodized per MIL-A-8625 Type II standards for enhanced durability. It uses long-lasting fluorosilicone static seals suitable for various fuels, ensuring longevity and resistance to wear.

      _x000D__x000D_

      Installation. Installation is straightforward with the included remote mount PWM controller, requiring no complex modifications or drilling in most applications. The pump accepts standard or port-style -8AN fittings, making it adaptable to existing fuel systems.

      _x000D__x000D_

      Warranty. The product is backed by a limited lifetime warranty, providing assurance of long-term reliability.

      _x000D__x000D_

      Application. This fuel pump kit fits universal applications, with some adaptation potentially required depending on the vehicle setup.

      Fuelab 20815
