Installation Time
(approx) 2 Hours
Difficulty Level:
Light to Moderate mechanical skill required.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details

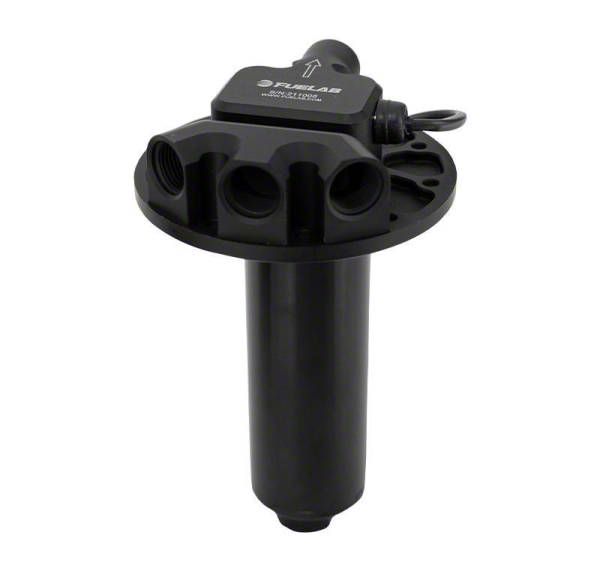

Fuelab H/E Series SAE Plate Mount Brushless Screw Pump; 850 HP; 400 LPH (Universal; Some Adaptation May Be Required)
Item HG62109
Our Price
$1,311.00 each
Military, Medical & First Responders
$65.55 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- _x000D_
- 400 LPH @ 45PSI, 125PSI MAX Operating Pressure _x000D_
- 13.5V Rated Up To 850HP _x000D_
- Compatible With Gasoline, Diesel, Methanol And Ethanol _x000D_
- Twin Screw Rotor Pumping Mechanism _x000D_
- Higher Efficiency Means Less Current Draw And Less Noise _x000D_
- Superior Priming Capabilities _x000D_
- Greater Resistance To Cavitation (Vapor Lock) _x000D_
- 12 To 16 Volt Vehicle Electrical System Compatibility _x000D_
- Variable Duty Motor Speed _x000D_
- Lightweight Super-Efficient DC Brushless Motor _x000D_
- Powerful High Flux Density Neodymium Rare Earth Magnets _x000D_
- No Motor Brushes To Wear Out Or Corrode _x000D_
- Wet Motor Design With No Dynamic Shaft Seals _x000D_
- Compact, Lightweight Design Under 2.5 lbs, 8” Length, 2” Diameter _x000D_
- Billet Aluminum Construction With Anodize Per MIL-A-8625 Type II _x000D_
- Flange Mounted SAE 10-Bolt Pattern For Easy Use With Fuel Cells Or Fabricated Reservoirs _x000D_
- Long Life Multi-Fuel Compatible Fluorosilicone Static Seals _x000D_
- Accepts Standard Or Port Style -8AN Fittings _x000D_
- Backed By A Limited Lifetime Warranty _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
Description
HIGH-PERFORMANCE FUEL DELIVERY. The Fuelab H/E Series SAE Plate Mount Brushless Screw Pump rated for up to 850 HP and 400 LPH at 45 PSI is a robust in-tank fuel pump engineered for high horsepower applications. It delivers consistent and efficient fuel flow at pressures up to 125 PSI, ideal for performance vehicles using gasoline, diesel, methanol, or ethanol. The advanced design ensures reliable operation by reducing noise and current draw while preventing vapor lock.
_x000D__x000D_CONSTRUCTION AND APPEARANCE. Made from billet aluminum with a MIL-A-8625 Type II anodized finish, this pump offers durability along with corrosion and wear resistance. Its compact and lightweight profile—under 2.5 lbs with an 8-inch length and 2-inch diameter—facilitates easy integration into fuel cells or fabricated reservoirs via a standard SAE 10-bolt flange mount.
_x000D__x000D_INSTALLATION. The pump is typically mounted to a compatible SAE 10-bolt flange, simplifying installation without requiring complex modifications or extensive drilling. The flange mount design allows for adaptable placement within various fuel system configurations.
_x000D__x000D_WARRANTY. This pump comes with a limited lifetime warranty, ensuring confidence in its build quality and long-term reliability.
_x000D__x000D_APPLICATION. Fits universal applications, although some adaptation may be necessary.
Fuelab 93902
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Screw Pump
