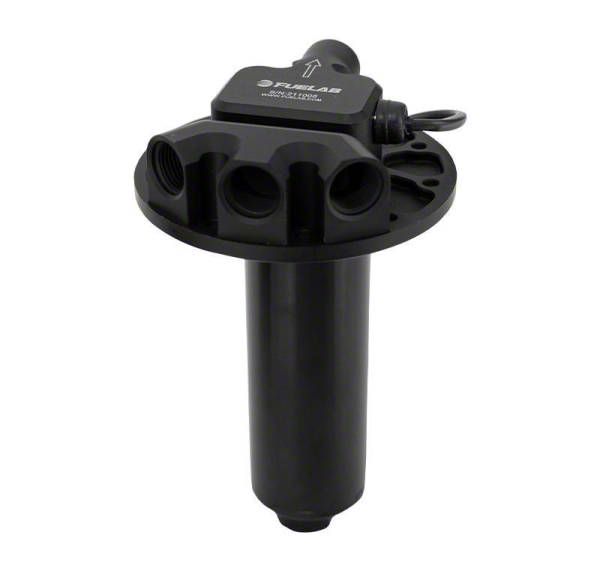

Fuelab H/E Series SAE Plate Mount Brushless Screw Pump; 850 HP; 400 LPH (Universal; Some Adaptation May Be Required)
Item T633366
Our Price
$1,311.00 each
Military, Medical & First Responders
$65.55 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- _x000D_
- 400 LPH @ 45PSI, 125PSI Max Operating Pressure _x000D_
- Rated Up To 850HP _x000D_
- Twin Screw Rotor Pumping Mechanism _x000D_
- Compatible With Gasoline, Diesel, Methanol And Ethanol _x000D_
- Higher Efficiency Means Less Current Draw And Less Noise _x000D_
- Superior Priming Capabilities _x000D_
- Greater Resistance To Cavitation And Vapor Lock _x000D_
- 12 To 16 Volt Vehicle Electrical System Compatibility _x000D_
- Variable Duty Motor Speed _x000D_
- Lightweight Super-Efficient DC Brushless Motor _x000D_
- Powerful High Flux Density Neodymium Rare Earth Magnets _x000D_
- No Motor Brushes To Wear Out Or Corrode _x000D_
- Wet Motor Design With No Dynamic Shaft Seals _x000D_
- Compact, Lightweight Design Weighing Less Than 2.5lbs _x000D_
- Overall Length 8 Inches, Pump Diameter 2 Inches _x000D_
- Billet Aluminum Construction With Anodize Per MIL-A-8625 Type II _x000D_
- Flange Mounted SAE 10-Bolt Pattern _x000D_
- Long Life Multi-Fuel Compatible Fluorosilicone Static Seals _x000D_
- Accepts Standard Or Port Style -8AN Fittings _x000D_
- Limited Lifetime Warranty _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
Description
High-Performance Fuel Pump. The Fuelab H/E Series SAE Plate Mount Brushless Screw Pump; 850 HP; 400 LPH is engineered to deliver reliable and efficient fuel supply for high-horsepower applications. This in-tank pump supports up to 850 horsepower with a flow rate of 400 liters per hour at 45 PSI, making it ideal for racing and performance vehicles. Its superior priming capabilities and resistance to vapor lock ensure a consistent fuel supply even under demanding conditions.
_x000D__x000D_Construction and Appearance. Featuring a compact and lightweight design, the pump is constructed from billet aluminum anodized to MIL-A-8625 Type II standards to provide durability and corrosion resistance. It measures 8 inches in length with a 2-inch diameter and incorporates robust Fluorosilicone static seals for compatibility with multiple fuel types. The flange-mounted SAE 10-bolt pattern allows for seamless integration with fabricated reservoirs or fuel cells.
_x000D__x000D_Installation. Installation is straightforward due to the SAE flange mount with a 10-bolt pattern, enabling easy fitting in in-tank applications. Typically, no specialized drilling or modifications are required when mounted to compatible reservoirs, simplifying the setup process for performance fuel systems.
_x000D__x000D_Warranty. This fuel pump comes with a limited lifetime warranty, reflecting confidence in its durability and long-term performance.
Application. Fits Universal; Some Adaptation May Be Required.
Fuelab 93902
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Screw Pump
