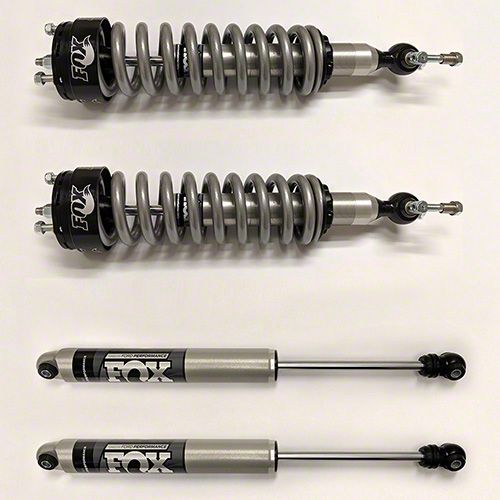

Ford Performance Off-Road 2.0 Suspension Kit (15-24 4WD F-150, Excluding Raptor)

Item T549722
Verify parts fit and get product recommendations.
F-150 Sales Techs: Connect Now M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
Our Price

$1,556.99 (set of 4)

FREE Shipping Market Price $1,821.99 You Save 15% ($265.00) Up to 10% off for Military & First Responders! See Details

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
Ship to: Ashburn - 20149
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Recommended Install Shops
How It Works
Install Shops are available near Ashburn - 20149

Add Local Shop Installation

Total cost of service $499.00
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

      Product Videos

      Justin: If you want better on- and off-road performance out of your 2015 and newer F-150, along with a nice level ride height, well, then you'll wanna check out the Ford Performance by Fox 2.0 suspension kit that we have here today. Now, this kit will feature the 2.0 coilovers up front, along with the 2 shocks here for the rear, and when installed, will make enough room for a set of 33-inch tall tires, along with that nice leveled stance. A lot to talk about here in this video, guys, so let's get into it.Let's start off with the front setup here, guys. There is a good amount to cover in that regard. This is a true 2.0 front coilover setup, which is preset for 2 inches of front-end lift right out of the box, which, by the way, according to the gang at Ford Performance, will make enough room for a set of 33-inch tall tires, along with that perfectly leveled stance. Now, these are adjustable, as you can see here by the locking rings down below, however, I should point out that Ford Performance does state that adjusting these things in any way in regards to height or preload might void your warranty. So I would avoid doing that without consulting Ford Performance first.Now, the front coilovers do incorporate a unique racing coil spring actually provided by Eibach. It is stamped right on the spring itself. And the spring and its rate is going to match the unique valving that will help deliver a nice balance of both on- and off-road performance and comfort. Now, that front-end lift, again, is more than just a leveled stance, guys. It's also going to allow for those bigger tires, which we've already said, but it's also going to improve some pretty valuable areas of your off-road performance. For instance, it's going to improve and increase things like your approach angle by up to 5 degrees, along with your break-over angle by about 2 degrees. So again, meaningful improvements here over a bone stock setup.But let's move towards the rear setup here, guys, and you'll see that the Ford Performance by Fox setup has included two smooth body nitrogen-filled 2.0 shocks. Now, smooth body, in this case, just simply means that there's no external piggyback reservoirs or anything like that. Now, instead, these shocks are going to incorporate a monotube construction with an internal floating piston design and valving, by the way, that is set up to match the front coilovers here. Now, both the front and rear options have been constructed from really nice 6061 T6 aluminum, given a hard anodized finish to prevent any corrosion, and are assembled here in the U.S.A. Now, finally, guys, if you do run into any issues right out of the box, they do have your back with a 90-day limited warranty, just in case you run into any issues.Price point for the kit here, guys, will live between the $1,600 to $1,700 range, which is gonna round out the higher end of the price spectrum for a non-reservoir setup. Now, if you're interested in sticking with a 2.0 here, Eibach's kit will come in about 500 bucks less at the end of the day, but I don't think anyone is going to doubt the capabilities and the engineering of the Fox and Ford performance components. Now, if you did wanna step up into a reservoir setup of coilovers, maybe along with something that's gonna be a little bit more beefed up for more heavy off-road use, Fox does offer their Race Series 2.5-inch coilover that will run you just north of 2 grand here on the site, but keep in mind, that does not include any rear shocks. You would have to purchase those separately. So you certainly have some options depending on your usage, of course. If you're spending most of your time on-road with some light trips off-road, it's really hard to beat a pieced-together kit such as this with all of the engineering that's gone into it, from the likes of Ford Performance and Fox, and something that is ready to bolt up right out of the box.Hey, speaking of getting everything bolted up, let's switch gears and get into our install segment, guys. And again, as I just pointed out, one of the nice things about going with a kit like this is that everything is pre-assembled for you, meaning, you're just simply going to remove your factory dampers first, swap in the new Ford Performance by Fox stuff, and you're good to go. Obviously, still a good amount of work to make this all possible, so therefore, figure a strong two out of three wrenches on the difficulty meter, at least four hours to complete from start to finish, depending on how fast you like to work. But now, we're going to throw it out to our guys in the shop here, so let's check out our detailed walkthrough and tool breakdown.Man: Tools required for this install include a couple of different sizes of impact guns, a hammer, 18- and 27-millimeter wrenches, 15- and 17-millimeter ratcheting wrenches, a marker, a couple of different sizes of swivel adapters, 15- and 19-millimeter swivel sockets, and 18- and 21-millimeter sockets, and a pry bar.What's up, guys? Today, we're installing a lift kit on our F-150, so let's get started.So, on the front, we need to remove our front struts. So the first thing we're gonna do is grab a 21-millimeter socket to disconnect our sway bar end link. So we'll grab our 21-millimeter socket to remove the nut for our sway bar end link. And then we can pull our end link out of the knuckle.Next, we can grab a 21-millimeter socket to remove the nut on our tie rod end. And then we can take a hammer and smack the side of the knuckle here to break this free.Next, we can come underneath our lower control arm and remove the two nuts that are holding our lower strut bolts into place. So we'll grab an 18-millimeter socket to pop these out.Now, next, we're gonna drop our lower control arm from our two pivot points to be able to get this as close to our alignment as possible. I'm gonna take a marker and just make a line here so that, once we put everything back together, we can line it up. Now, you're gonna have to get an alignment after the lift kit anyway, so this will just make it good enough to take it to the alignment shop.So now, with our marks made, we can grab a 27-millimeter wrench on our nut side and a 21-millimeter socket on our bolt side and remove our 2 bolts. And then we can drop our lower control arm from our strut.Next, we can come up to the top of our strut tower and remove the three 15-millimeter nuts that are holding our strut into place. So I've got a 15-millimeter ratcheting wrench to pop these out. And then, with that last one loosened, we can lift up on our strut and spin that the rest of the way off by hand. And then slide our strut out of place. Now, with our nuts removed, we can pull our strut out. And then do that same thing on the other side.Now, for the rear, we need to remove our shock. The bottom's held in by a 15-millimeter bolt and an 18-millimeter nut. The top's held in by a 15-millimeter bolt, and there's a nut with a welded tab, so we don't need to get a wrench on that. To pop this out, I've got a 15-millimeter socket and an 18-millimeter wrench.Now, we'll start at our lower shock mount with that 15-millimeter socket and 18-millimeter wrench. And then we can pull up on our shock to pop our bolt out. And now, we can go up top with our 15-millimeter socket to remove our bolt. And then we can remove our shock. So now, we can grab our new strut and raise this up into place, and then we're gonna get a washer and nut onto each of our studs.Next, we can install our two lower strut bolts with our washer. So we'll lift up on the lower control arm, get it lined up, and get these threaded into place.So now I've got the lower control arm on a couple of pole jacks, we're gonna use these to raise this back up into place, and then we can reinstall our bolts. So now, with this raised up into place, we're gonna have to push this forward a little bit to get our bolt in. So I'm just gonna take a pry bar and pry it forward. I'll get that bolt started and then slide our nut onto the other side. Then we'll do that same thing on the other side here. And then throw our nut onto that side.So now, we can go back and tighten down our two bolts. I'm gonna get our nut lined up here and then get a wrench on it. And then we'll grab the 21-millimeter socket for the bolt side and tighten this down. And then I'll do that same thing on this side. And then we can do that same thing on this side. We'll line up our nut first and then take our 21-millimeter socket to tighten it down.Next, while we're down here, we can take a 19-millimeter socket to tighten down our two lower strut bolts. Next, we can go back up top and take a 17-millimeter wrench to tighten down our nuts.Next, we can reinstall our tie rod end and then thread on our nut and tighten that down with a 21-millimeter socket. Now, at this point, you wanna repeat that whole process on the other side until you only have your sway bar left. It's easier to do these both at the same time to pop them in so that you don't have one side higher than the other. So once you're finished with that side, we can reinstall our end links.Now, we can grab our end link and pop that back through our knuckle. Reinstall our nut and take a 21-millimeter socket to tighten that down. And then you can do that same thing on the other side.So that'll wrap up this review and install of the Ford Performance off-road 2.0 suspension kit for your 2015 and newer 4-wheel drive F-150, excluding the Raptor. Thank you for watching. And for all things F-150, keep it right here at americantrucks.com.

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features

      • Off-Road 2.0 Suspension Kit
      • Improves Off-Road Performance and Truck Stance
      • Ensures Better Control Over Vehicle When Off-Road
      • Provides a Comfortable Ride Quality
      • Durable One-Piece Shock Design
      • CNC Machined 6061-T6 Clear Anodized Aluminum Shock Bodies
      • Comes with a Hard-Anodized Finish
      • Vehicle-Specific Upper Front Mounts
      • Race-Developed, High-Flow Pistons
      • Vehicle-Specific Valving
      • Straightforward Installation
      • Sold as a Set of 4
      • Fits All 2015-2024 4WD Ford F-150 Models, Excluding Raptor Variants

      Description

      Improves the Vehicle’s Off-Road Performance. If you’re planning to turn your Ford F-150 into an awesome off-roading beast, then you need to install this Ford Performance Off-Road 2.0 Suspension Kit. Unlike your stock shocks, this upgrade comes with several features that’ll help keep your off-road rides comfortable and enjoyable. The shocks’ impact extruded aluminum bodies have an increased cooling capacity, allowing them to provide you with more reliable shock absorption. The springs on the coil-overs, on the other hand, boast a top-quality racing build to deliver an optimal spring rate.

      Gives the Truck a Clean Stance. Apart from improving your truck’s off-road ride quality, this suspension kit also gives your pickup a level stance. This gives your pickup a cleaner look, as well as a more commanding presence on the trail.

      High-Quality Components. To keep up with your most demanding off-road adventures, Ford Performance crafted these shocks from sturdy and long-lasting components. The shocks boast a 2.0, one-piece, impact-extruded body made from CNC machined 6061-T6 clear anodized aluminum, and come with a hard-anodized finish. This makes them extremely durable and highly resistant to rust. They also feature a 0.625-inch shaft made from hard chrome plated heat-treated alloy steel, as well as black-anodized, CNC machined 6061-T6 billet aluminum components. You can rest assured that these shocks won’t break or fail you so easily even when the trails get tough.

      Direct, Bolt-On Installation. Installing the items in this Off-Road 2.0 Suspension Kit is pretty straightforward. The front coil-over and rear shocks bolt to your truck’s OE locations without the need for drilling or welding. However, the task calls for moderate mechanical expertise to ensure that the procedure goes smoothly. The installation will take no more than 4 hours to complete.

      Application. The Ford Performance Off-Road 2.0 Suspension Kit fits all 2015-2024 4WD Ford F-150 models, excluding Raptor variants.

      Fitment:

      Details

      Ford Performance M-18000-F15AA

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      What's in the Box

      • (2) Front Coil-Over Shocks
      • (2) Rear Shocks
      • Installation Hardware
      5.0

      Customer Reviews (2)

        Brand Image

        Reviews of Ford Performance Suspension products have an average rating of 4.9 out of 5

          Questions & Answers

          10 More Questions

          Will It Fit My F-150

          • 2.7L V6 EcoBoost - 15, 16, 17, 18, 19, 20, 21, 22, 23, 24
          • 3.0L V6 Power-Stroke - 18, 19, 20, 21, 22
          • 3.3L V6 - 18, 19, 20, 21, 22, 23
          • 3.5L V6 - 15, 16, 17
          • 3.5L V6 EcoBoost - 15, 16, 17, 18, 19, 20, 21, 22, 23, 24
          • 3.5L V6 EcoBoost Limited - 19, 20, 21, 22, 23
          • 3.5L V6 EcoBoost Raptor - 17, 18, 19, 20, 21, 22, 23
          • 3.5L V6 PowerBoost - 21, 22, 23, 24
          • 5.0L V8 - 15, 16, 17, 18, 19, 20, 21, 22, 23, 24
          • 5.2L V8 Supercharged Raptor - 23
