Installation Time
(approx) 6 Hours
Difficulty Level:
Mechanical expertise or professional installation required.
FREE 1 to 3-Day Delivery on Orders $119+ Details
Talk to a Sierra 1500 Sales Tech
1-888-706-1096
M-F 8:30A-11P, Sat-Sun 8:30A-9P
Fabtech 4-Inch Performance Suspension Lift Kit with Dirt Logic 2.5 Coil-Overs and Dirt Logic 2.25 Shocks (19-24 3.0L Duramax Sierra 1500 AT4)
Item S543721
Sierra 1500 Sales Techs:
Connect Now
M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
Our Price
$3,905.27 (kit)
FREE Shipping Market Price $4,491.06 You Save 13% ($585.79) Up to 10% off for Military & First Responders! See DetailsWill this fit your Vehicle?
Ship to: Columbus - 43215
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- Four-Inch Performance Suspension Lift Kit
- Levels the Stance of Your Truck
- Tough Steel Strut Spacers
- Highly Durable Steel Lift Blocks
- Five-Year/60,000-Mile Powertrain Warranty
- Requires the Use of 20-Inch or Larger Wheels
- Accommodates up to 35-Inch x 12.50-Inch Tires
- Extended Ductile Iron Steering Knuckles Included
- Designed for Easy Installation – Some Cutting is Required
- Increases Ground Clearance for Improved Off-Road Drivability
- Dirt Logic 2.5 with Coil-Overs Front Shocks and Dirt Logic 2.25 Rear Resi Shocks
- Engineered for all 2019-2024 3.0L Duramax Sierra 1500 AT4 Models
| Brand | Fabtech |
| Lift Height | 4.00 Inch |
| Lift Kit Type | Suspension Lift |
| Lift Kit Max Tire Size | 35 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description
Built for Competitive Off-Road Driving. The Fabtech 4-Inch Performance Suspension Lift Kit with Dirt Logic 2.5 Coil-Overs and Dirt Logic 2.25 Shocks gears up your truck for competitive off-road driving. This lift kit accommodates up to 35-inch tires and raises your truck’s clearance to make it more agile on the trails. Without a doubt, this suspension lift kit has all the components needed to help your Duramax Sierra 1500 AT4 truck traverse rugged terrain with ease, even at high speeds.
Race-Ready Front and Rear Shocks. This suspension lift kit readies your truck for the competition with 2 front Dirt Logic 2.5 shocks with cold-wound coil-over springs, NitroSteel black piston rods, and spherical ball mounting ends. Meanwhile, the rear Dirt Logic Resi 2.25 shocks included in this kit feature a more robust design with aluminum reservoirs that offer better shock damping than factory shocks.
High-Performance Steering Knuckles. The extended-length ductile iron steering knuckles included in this lift kit are designed to eliminate bump steer throughout the suspension travel. This gives you smoother handling on bumpy roads. These knuckles are made of steel to make your suspension system sturdier.
Rigid Steel Control Arm Crossmembers. This lift kit outfits your truck with lower control arm crossmembers that are made from 0.25-inch thick steel to ensure lasting strength. These crossmembers also come with an arched design that increases your truck's ground clearance for improved off-road drivability.
Tough Bump Stop Spacers and Lift Blocks. This lift kit includes fabricated bump stop spacers and lift blocks. Each is made from highly durable steel to ensure lasting strength and is designed according to your Duramax Sierra 1500 AT4's specifications to ensure a perfect fit.
Designed for Simple Installation. This suspension lift kit is designed for simple installation but setting it up requires mechanical expertise. Most parts are installed using factory mounting locations, but some cutting is required.
Worry-Free 5-Year Warranty. Fabtech covers this suspension lift kit with a 5-year 60,000-mile Powertrain warranty against manufacturing defects from the date of purchase by the original owner. Some limitations apply. Please contact customer service for details.
Application. This Fabtech 4-Inch Performance Suspension Lift Kit with Dirt Logic 2.5 Coil-Overs and Dirt Logic 2.25 Shocks fits all 2019-2024 3.0L Duramax Sierra 1500 AT4 Models.
Fitment:
- 2020 GMC Sierra 1500
- 2021 GMC Sierra 1500
- 2022 GMC Sierra 1500
- 2023 GMC Sierra 1500
- 2024 GMC Sierra 1500
Fabtech K1173DL
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

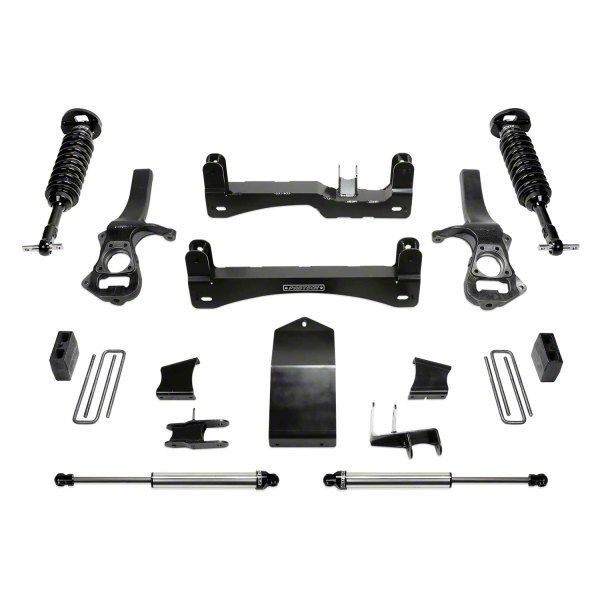

What's in the Box
- (2) Rear Dirt Logic 2.5 Shocks
- (4) Four-Inch Shock Brackets
- (2) Rear Brake Line Brackets
- (2) Rear Bump Stop Spacers
- (2) Dirt Logic 2.5 Coil-Overs
- (2) Lower Shock Brackets
- (1) Differential Skid Plate
- (2) Shock Mount to Arms
- (1) Front Crossmember
- (1) Rear Crossmember
- (2) Sway Bar Mounts
- (2) Rear Lift Blocks
- (2) Bottom Plates
- (2) Axle Spacers
- (4) U-Bolts
- (2) Tie Rod Ends
- Installation Hardware
4.6
Customer Reviews (24)
Questions & Answers
10 More Questions
Will It Fit My Sierra 1500
- 3.0L I6 Duramax - 20, 21, 22, 23, 24
