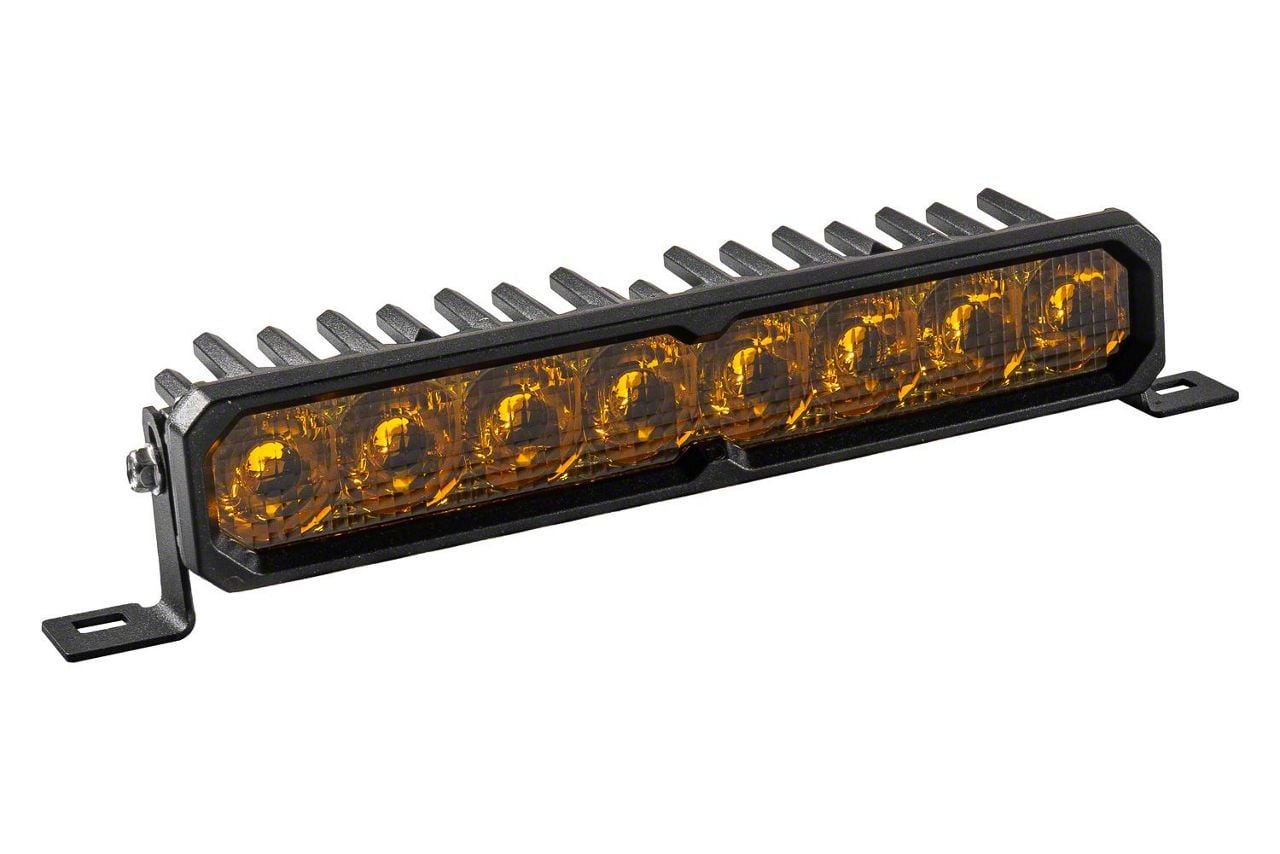

Diode Dynamics SS10 Pro Single Row LED Light Bar with Amber Backlight; Yellow Driving (Universal; Some Adaptation May Be Required)
Item T640930
Our Price
$349.95
Military, Medical & First Responders
$17.50 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features & Specs
- _x000D_
- Patented TIR Optics For Maximum Efficiency And Output _x000D_
- Upgraded Beam Patterns Engineered For Real-World Performance _x000D_
- True Amber Backlight Provides Unique Accent Lighting _x000D_
- Available In Sport, Pro, And Max Power Levels _x000D_
- Durable Aluminum Housing With ASTM-Standard Powdercoat Finish _x000D_
- Built For Extreme Conditions With IP69K Waterproof Rating _x000D_
- Limited Lifetime Warranty Included _x000D_
- Engineered And Made In USA With Globally Sourced Materials _x000D_
- Peak Beam Intensity Ranges From 62,000 To 205,500 Candela Depending On Model _x000D_
- Illuminance From 20 To 1,755 Lux At 10 Meters Based On Beam Pattern _x000D_
- Raw Light Output From 3,688 To 15,840 Lumens _x000D_
- Color Temperature Of 3000K Yellow For Improved Visibility In Inclement Weather _x000D_
- Beam Angle Options Include Combo/Driving 60°x30°, SAE Driving 20°x12°, Flood 100°x80°, Spot 8°x8° _x000D_
- Operating Voltage Between 9 To 30 Volts _x000D_
- Current Draw Varies By Model From 3.13 To 4.77 Amps At 12.8V _x000D_
- Polarity Specific Electrical Connections _x000D_
- Operating Temperature Range From -40°C To 85°C (-40°F To 185°F) _x000D_
- Includes Osram Boost HX, Osram Ostar Projection Compact, And Lumileds Automotive Grade LED Emitters _x000D_
- Deutsch DT Connector Input _x000D_
- Materials Include Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, And Stainless Steel Brackets _x000D_
- Passive Cooling With Integrated Heatsink _x000D_
- Product Dimensions Are 2.01 Inches Height By 10.24 Inches Width By 2.37 Inches Depth _x000D_
- Includes One LED Light Bar, One Wire Pigtail, And Universal Bracket Set _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Light Bar Width | 10 to 19 Inch |
Description
Advanced Illumination Performance. The Diode Dynamics SS10 Pro Single Row LED Light Bar with Amber Backlight provides superior lighting intensity with precision optics designed to deliver more usable light output. It enhances visibility in diverse driving conditions by reducing glare and improving scene illumination, making it an essential upgrade for off-road and inclement weather applications.
_x000D_Construction and Appearance. This LED light bar features a rugged aluminum housing finished with an ASTM-standard powdercoat for durability and corrosion resistance. It incorporates high-quality materials such as copper and aluminum PCBs for optimal thermal management, polycarbonate lenses for impact resistance, and stainless steel brackets for secure mounting. The amber backlight adds a distinctive visual accent enhancing vehicle presence.
_x000D_Installation. Installation requires basic tools and can be completed within 30 to 60 minutes. It utilizes a universal mounting bracket system with no drilling required in most applications, allowing for straightforward integration.
_x000D_Warranty. Backed by a limited lifetime warranty to ensure long-lasting reliability and customer satisfaction.
_x000D_Application. Designed for universal fitment, this light bar may require some adaptation depending on the mounting location and vehicle configuration.
Diode Dynamics DD8194
