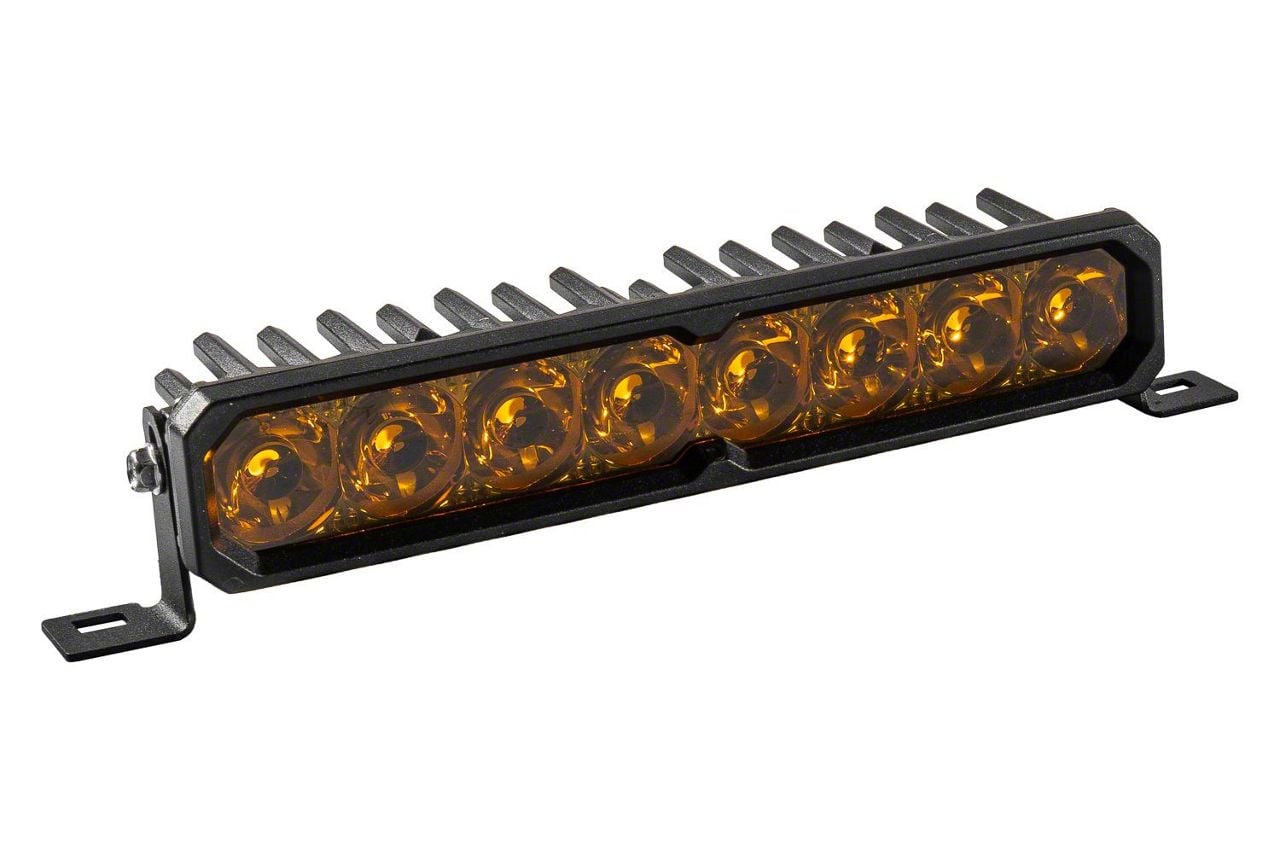

Diode Dynamics SS10 Max Single Row LED Light Bar with Amber Backlight; Yellow Spot (Universal; Some Adaptation May Be Required)
Item T640951
Our Price
$449.95
Military, Medical & First Responders
$22.50 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features & Specs
- _x000D_
- Patented TIR Optics For Maximum Efficiency and Output _x000D_
- Upgraded Beam Patterns Engineered for Real-World Performance _x000D_
- True Amber Backlight Provides Unique Accent Lighting _x000D_
- Available in Sport, Pro, and Max Power Levels _x000D_
- Durable Aluminum Housing with ASTM-Standard Powdercoat Finish _x000D_
- Built for the Extreme with IP69K Waterproof Rating _x000D_
- Limited Lifetime Warranty _x000D_
- Made in USA with Global Materials _x000D_
- Color Temperature: 3000K _x000D_
- Beam Angles Available: Combo/Driving 60°x30°, SAE Driving 20°x12°, Flood 100°x80°, Spot 8°x8° _x000D_
- Power Levels: Sport 40W, Pro 51.5W, Max 61W _x000D_
- Operating Voltage: 9-30V _x000D_
- Current Draw: Sport 3.13A, Pro 4.00A, Max 4.77A @ 12.8V _x000D_
- Osram Boost HX, Osram Ostar Projection Compact, Lumileds Automotive Grade LEDs Used _x000D_
- Deutsch DT Connector Input _x000D_
- Materials Include Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets _x000D_
- Passive Heatsink Cooling _x000D_
- Rated IP69K Waterproof with High-Pressure Resistance _x000D_
- Product Dimensions: 2.01" H x 10.24" W x 2.37" D _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Light Bar Width | 10 to 19 Inch |
Description
High-Performance Illumination. The Diode Dynamics SS10 Max Single Row LED Light Bar with Amber Backlight and Yellow Spot is engineered to deliver superior lighting with unparalleled intensity and focus. Designed for off-road and severe weather conditions, it enhances visibility by cutting through fog, rain, and snow thanks to its 3000K yellow output. This light bar is ideal for enthusiasts seeking maximum clarity and distance in their driving environment.
_x000D__x000D_Construction and Appearance. Constructed from durable aluminum with an ASTM-standard powdercoat finish, this light bar combines ruggedness with corrosion resistance. Its polycarbonate lens protects the LEDs, while the built-in passive heatsink ensures efficient thermal management. The fully encapsulated design, featuring a true amber backlight illuminating the TIR optic, offers a distinctive look not found in typical LED light bars.
_x000D__x000D_Installation. Installation is straightforward and generally requires only basic tools. Universal mounting brackets are included, enabling flexible and secure mounting options without the need for drilling in most applications.
_x000D__x000D_Warranty. This product is backed by a limited lifetime warranty, offering long-term peace of mind and reliable support.
_x000D__x000D_Application. Designed for universal fitment, this light bar may require some adaptation for optimal installation, accommodating a wide range of vehicles and setups.
