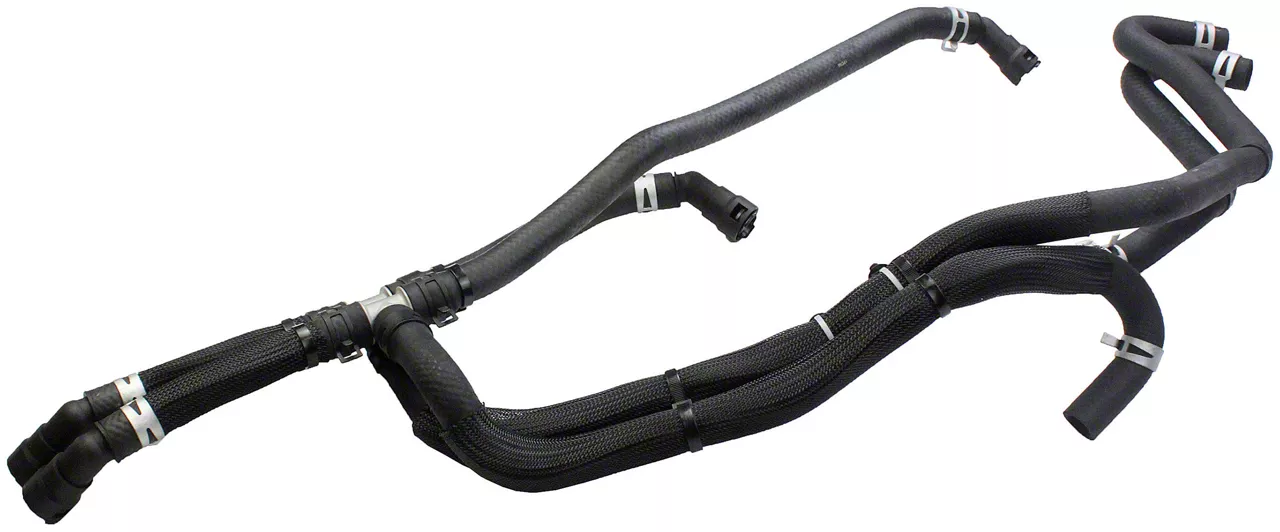

Engine Heater Hose Assembly; Inlet and Outlet
(15-17 5.0L F-150
Find parts that fit my vehicle Item T610953
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features
- Upgraded Material - This Replacement Engine Heater Hose Assembly Features Aluminum Y-Connectors For Added Durability
- Application Specific - Designed To Match The Original Fit And Function Of Heater Hoses On 2015-2017 Ford F-150 5.0L V8 Models
- Complete Replacement - Hoses Come With Necessary Clamps For Easy Installation
- Quality Engineering - Designed In The United States And Backed By Decades Of Automotive Aftermarket Experience
- Axis 1 Length: 923 Mm
- Axis 2 Length: 710 Mm
- Axis 3 Length: 562 Mm
- Axis 4 Length: 1060 Mm
- Branch Quantity: 5
- Burst Pressure: 75 PSI
- Centerline Length: 3720 Mm
- Clamps Included: Yes
- Contains Spring: No
- Coolant Hose Heat Shield Included: No
- Coolant Hose Type: Branched
- End 1 Attachment Type: Quick Connect
- End 1 Inside Diameter: 25.3 Mm
- End 1 Type: Quick Disconnect
- End 2 Attachment Type: Hose
- End 2 Inside Diameter: 18.3 Mm
- End 2 Type: Hose
- End 3 Attachment Type: Clamp
- End 3 Inside Diameter: 18.3 Mm
- End 4 Attachment Type: Quick Disconnect
- End 4 Inside Diameter: 25.3 Mm
- Grade Type: Standard Replacement
- Heat Shield Included: No
- Hose Attachment End 1: Flared Tube
- Hose Attachment End 2: Flared Tube
- Hose End (1) Outside Diameter (In): 1.19 In
- Hose End (2) Outside Diameter (In): 1.04 In
- Hose End (3) Outside Diameter (In): 1.04 In
- Hose End (4) Inside Diameter (In): 1 In
- Hose End (4) Outside Diameter (In): 1.19 In
- Hose Material: EPDM; Plastic
- Hose Outside Diameter: 26.5 Mm
- Hose Overall Length (In): 43.7 In
- Hose Quantity: 7
- Hose Shape: Molded Assembly
- Inside Diameter: 18.3 Mm
- Length: 1110 Mm
- Material: EPDM; Plastic
- Maximum Bend Angle: 90 Deg
- Maximum Working Pressure: 100 PSI
- Molded: Yes
- Mounting Bracket Included: No
- Outside Diameter: 26.5 Mm
- Package Contents: Heater Hose Assembly
- Protective Sleeve Attached: Yes
- Protective Sleeve Included: Yes
- Quick Connect Fitting Quantity: 4
- Thermostatically Controlled: No
Description
Durable Heater Assembly. The Engine Heater Hose Assembly; Inlet and Outlet is engineered to maintain efficient heating system performance by ensuring reliable coolant flow through the heater cores. It replaces original equipment assemblies prone to failure, providing a robust connection for temperature regulation inside the vehicle cabin, essential for comfort and engine longevity.
Construction and Appearance. Crafted from EPDM and plastic materials, this molded assembly incorporates upgraded aluminum Y-connectors that resist cracking and deterioration. Featuring a black finish with a protective sleeve attached, its design ensures durability and protection against heat and wear during operation.
Installation. This heater hose assembly is designed for straightforward replacement without the need for drilling. The assembly includes four quick connect fittings and necessary clamps, simplifying installation and ensuring a secure fit.
Application. Specifically designed to fit the 2015-2017 Ford F-150 with a 5.0L V8 engine, providing an exact match for inlet and outlet heater hose configurations without modifications.
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Install Details & What's in the Box
Installation Info
What's in the Box
- (1) Engine Heater Hose Assembly
4.2
Customer Reviews (9)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My F-150
- 5.0L V8 - 15, 16, 17
