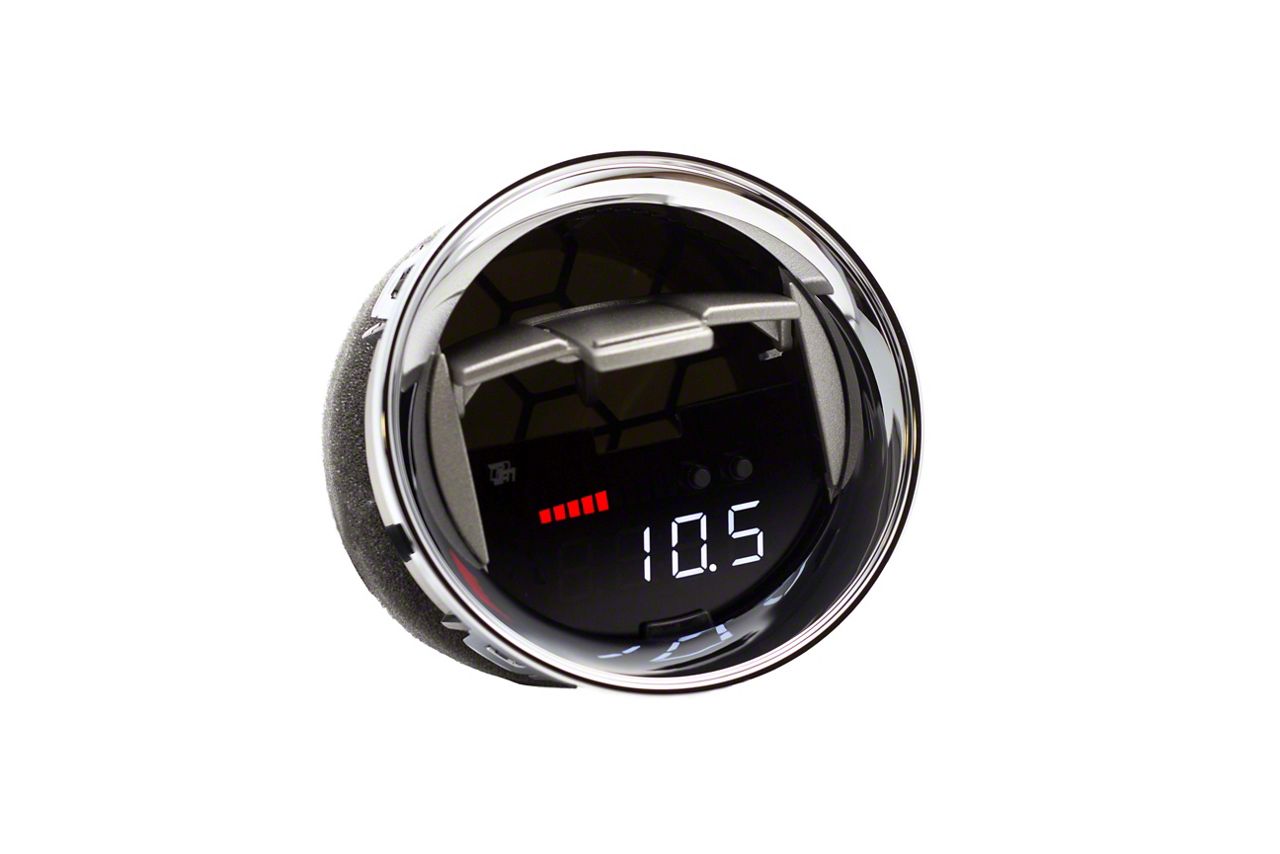

Analog Gauge with Silver Trim Vent Housing; Red Bars/White Digits (09-14 F-150)Find parts that fit my vehicle

Item T598129
AmericanTrucks no longer carries the Analog Gauge with Silver Trim Vent Housing; Red Bars/White Digits (09-14 F-150). Please check out 1997-2003 Ford F-150 Interior for an updated selection.
3 Reviews of similar
Shop Owners Save More! Sign up for our dealer program
Join For FREE

    Product Information

    Description, Q&A, Specs & Installation

    Description


    P3 Digital gauges provide the highest level of OEM integration and color match offering more features than any other gauges in their segment. Starting at a price competitive to single feature old-school needle gauges, they offer unmatched feature to price ratio.

    4 Available Analog Readouts:

    Analog boost (yellow/purple/Black - dedicated plug for analog boost sensor) boost tap not included
    Analog input 1 (Brown wire - can read any 0-5 volt linear output sensor)
    Analog input 2 (blue wire - can read any 0-5 volt linear output sensor)
    Battery voltage (red wire | Black wire - read through power and ground wires)
    Optional auto-dim feature (green wire - connect to any circuit that gets power only when the headlamps are on and enable feature in the configuration menu for the display to auto-dim when the headlamps are on)
    Analog gauge base kit includes:
    Integrated display
    Analog Box control unit
    Main harness
    Hard-wire harness
    Analog boost sensor boost tap not included
    Approximately 5' of 5/32" O.D. boost tubing with 5/32" I.D. hose at each end
    3 zip ties
    2 scotchlok wire taps
    Fitment:
    Ford F-150 2009-2014
    Optional Add-Ons:
    OBD2 power/ground tap harness allows you to connect to power and ground through your OBD2 port without any wire splicing (does not add OBD2 functionality)
    P3 ESVA (ethanol sensor voltage adaptor) allows your gauge to read ethanol content and fuel temp directly from any Continental/GM Ethanol sensor Ethanol sensor not included
    LC-2 Wideband o2 Sensor Kit allows your gauge to read your vehicle's Air/Fuel Ratio. Includes everything you need to add a wideband sensor to your exhaust.
    Any Other 0-5 Volt Linear Output Sensor Can Be Read oil pressure, oil temp, coolant temp, air ride pressure, egt, etc...
    Note:
    This gauge IS NOT plug and play. Boost/vacuum hose to the engine is required and wiring needs to be completed for power, ground, and optional analog inputs.
