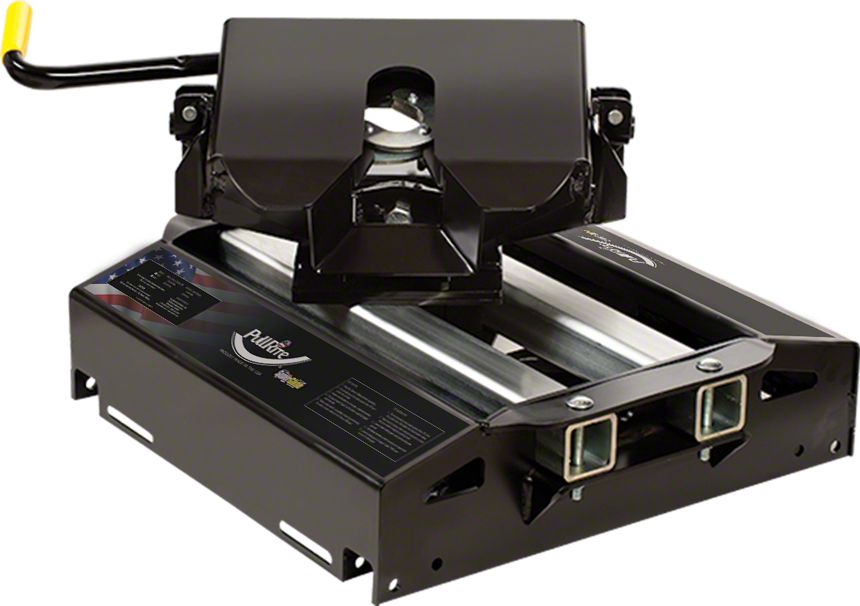

Traditional Series 20K SuperGlide 5th Wheel Hitch (97-14 F-150 w/ 6-1/2-Foot Bed)Find parts that fit my vehicle
Item T545529
Our Price
$2,594.99
Military, Medical & First Responders
$129.75 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Item Options
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- SuperGlide Is The Only True Solution To Safe Fifth Wheel Towing With Short Bed Trucks Protecting Passengers, Trucks, & Trailers
- Automatically Moves The Trailer Away From The Cab While Making Turns Allowing Up To 90° Turning Without Stopping Or Slowing Down
- Automatically Returns The Hitch And Trailer To The Safe Towing Position Over The Truck Axle After The Turn
- Features Fully Articulating Dual Pivot Head And Unique Rotary Latch That Locks Automatically When Hooking Up To The Trailer
- Gear Driven Latch Minimizes Bump While Towing By Allowing Only .030 Inch Clearance Between King Pin And Latch
- Moves Up To 14 Inches While Making A Turn—50% Farther Than Manually Adjusted Slider Designs
- Capture Plate Is A Required Component That Is Attached To Trailer’s Skid Plate Isolating King Pin Rotation And Enabling The Automatic Cam Action Of The Hitch
- Self-Locking Handle With No Secondary Locking Devices Required
- Dual-Articulating Hitch Head Moves Side-To-Side And Front-To-Back Allowing Smoother Ride And Coupling On Uneven Ground
- Removal And Installation Of The Hitch Plate Requires No Tools And Reduces The Weight Needed To Maneuver To 43 Pounds
- Available With Fixed Base Rails Or Totally Removable SuperRails Featuring Clean Bed Technology
- SAE J2638 Tested And Accurately Weight Rated
- Made In The USA
- Capacity Max Trailer Weight 20,000 lbs
- Pin Weight Capacity Max Vertical Weight 5,000 lbs
- Overall Dimensions 24 Inch Width, 24 Inch Length, 15.5 Inch Height
- Fits 97-14 F-150 w/ 6-1/2-Foot Bed
Description
Advanced Tow Safety. The Traditional Series 20K SuperGlide 5th Wheel Hitch provides a reliable and innovative towing solution designed specifically for short bed trucks. This hitch automatically adjusts the trailer’s position during turns, protecting the vehicle and passengers while allowing up to a 90-degree turning radius without manual intervention. It enhances towing ease and safety, making it essential for short bed truck owners requiring fifth wheel capabilities.
Construction and Appearance. Constructed with high-quality materials, the hitch features a powder-coated black finish for durability and corrosion resistance. The dual pivot head and rotary latch system ensure secure trailer connections, while the robust design supports heavy loads up to 20,000 pounds trailer weight and 5,000 pounds pin weight capacity.
Installation. Installation is straightforward, requiring no special tools for hitch plate removal and installation. The process is user-friendly, with a quick-connect capture plate that isolates king pin rotation to enable the hitch’s automatic cam action, ensuring easy setup and compatibility with various trailers.
Warranty. The product is backed by a five-year limited warranty, underscoring its quality and reliability.
Application. Specifically designed to fit 1997-2014 Ford F-150 trucks equipped with a 6.5-foot bed, this hitch ensures optimal compatibility and performance for this popular short bed truck configuration.
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
5.0
Reviews of similar Exterior Products (1)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My F-150
- 3.5L V6 EcoBoost - 11, 12, 13, 14
- 3.7L V6 - 11, 12, 13, 14
- 4.2L V6 - 97, 98, 99, 00, 01, 02, 03, 05, 06, 07, 08
- 4.6L V8 - 97, 98, 99, 00, 01, 02, 03, 04, 05, 06, 07, 08, 09, 10
- 5.0L V8 - 11, 12, 13, 14
- 5.4L V8 - 97, 98, 99, 00, 01, 02, 03, 04, 05, 06, 07, 08, 09, 10
- 5.4L V8 Supercharged - 99, 00, 01, 02, 03
- 6.2L V8 - 11, 12, 13, 14
