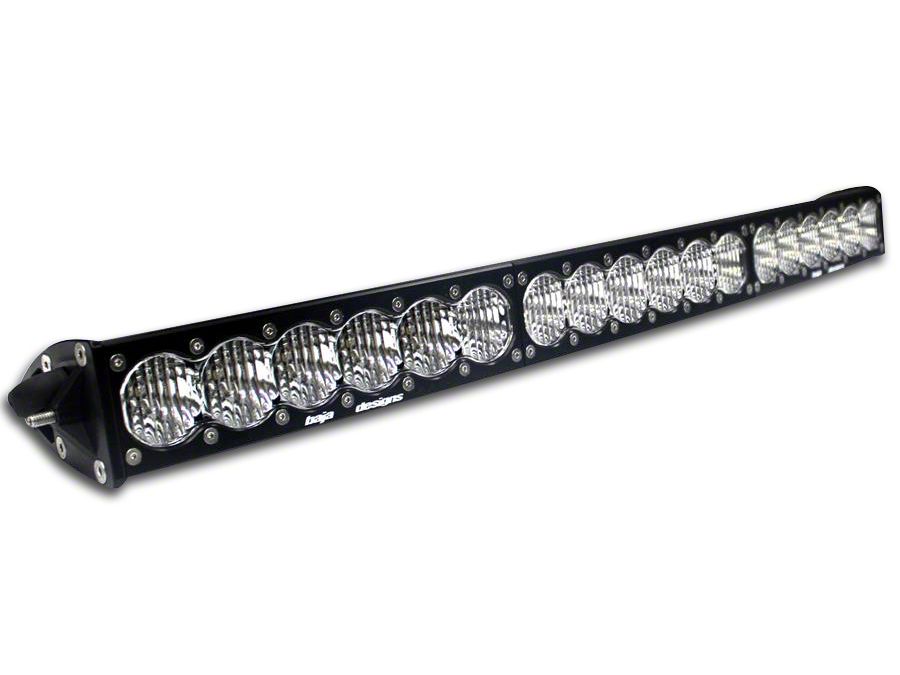

Baja Designs 30-Inch OnX6 Arc LED Light Bar; Wide Driving Beam (Universal; Some Adaptation May Be Required)

Item T535506
Product Image
161 Reviews of Baja Designs
Our Price

$1,338.95 each

Military, Medical & First Responders $66.95 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Depth 4.29 Inches
        • _x000D_
      • Height 2.69 Inches
        • _x000D_
      • Length 30 Inches
        • _x000D_
      • Weight 11.45 Pounds
        • _x000D_
      • Amperage Rating 21.7 Amps High 17.1 Amps Low
        • _x000D_
      • Average Rated Life 49,930 Hours
        • _x000D_
      • Beam Pattern Wide Cornering
        • _x000D_
      • Bezel Material Billet Machined Aluminum
        • _x000D_
      • Brightness 32,070 Lumens High 25,610 Lumens Low
        • _x000D_
      • Description Arc Wide Cornering Clear
        • _x000D_
      • Housing Color Black
        • _x000D_
      • Housing Material Aircraft Grade Aluminum With Mil-Spec Hard Anodize
        • _x000D_
      • Lens Color Clear
        • _x000D_
      • Lens Material Hardcoated Polycarbonate
        • _x000D_
      • Light Quantity 1
        • _x000D_
      • Lighting Modes High Beam Low Beam
        • _x000D_
      • Lighting Quantity 18
        • _x000D_
      • Lighting Technology LED
        • _x000D_
      • Lighting Type Forward Projecting
        • _x000D_
      • Mounting Hardware Description Mounting Brackets
        • _x000D_
      • Mounting Hardware Included Yes
        • _x000D_
      • Mounting Hardware Material Stainless Steel
        • _x000D_
      • Overvoltage Protection Built-In
        • _x000D_
      • Product Type OnX6+ 30 Inch Arc LED Light Bar
        • _x000D_
      • Wattage 278 Watts High 222 Watts Low
        • _x000D_
      • Wiring Harness Description Hi-Low Dongle
        • _x000D_
      • Wiring Harness Included No
        • _x000D_
      • Standards Compliance Exceeds MIL-STD810G IK10 IP69K
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required
        • _x000D_

      Description

      High-Performance LED Light Bar. The Baja Designs 30-Inch OnX6 Arc LED Light Bar; Wide Driving Beam is a powerful lighting solution designed to enhance visibility in low-light and off-road conditions. It delivers a wide cornering beam pattern ideal for illuminating your driving path and surroundings, increasing safety and trail recognition during night driving or adverse weather.

      _x000D__x000D_

      Durable Construction and Design. Crafted from aircraft-grade aluminum with a Mil-Spec hard anodize finish, this light bar features a billet machined aluminum bezel and a hardcoated polycarbonate lens. The black housing offers a sleek appearance while ensuring excellent resistance to impact, water, and environmental elements with IP69K rating and IK10 compliance.

      _x000D__x000D_

      Installation. Installation is straightforward with mounting brackets included and no special tools or vehicle modifications required. There is generally no need for drilling, allowing for a secure and hassle-free fitment.

      _x000D__x000D_

      Warranty. The product is backed by a limited lifetime warranty for purchase protection.

      _x000D__x000D_

      Application. Fits Universal; Some Adaptation May Be Required.

      Baja Designs 523004

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 1 Hour

      Difficulty Level:

      Simple installation for anyone.

      Installation Guides

      What's in the Box

      • (1) Light Bar
      • (1) Wiring Harness
      • (1) Switch
      • Mounting Hardware
      • (1) Installation Manual
