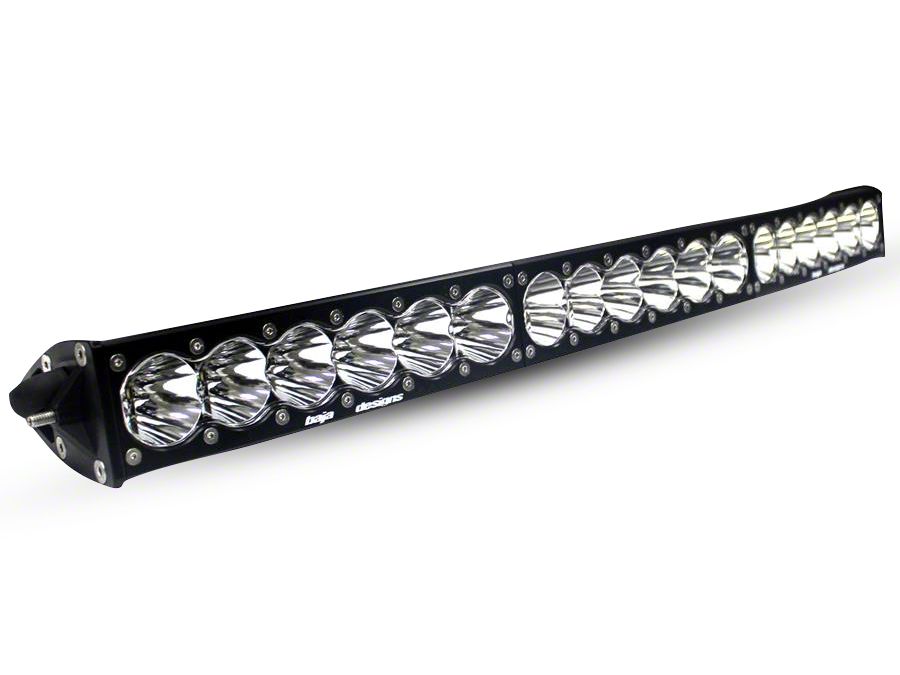

Baja Designs 30-Inch OnX6 Arc LED Light Bar; High Speed Spot Beam (Universal; Some Adaptation May Be Required)

Item T535503
Product Image
161 Reviews of Baja Designs
Our Price

$1,338.95 each

Military, Medical & First Responders $66.95 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Depth 4.29 Inches
        • _x000D_
      • Height 2.69 Inches
        • _x000D_
      • Length 30 Inches
        • _x000D_
      • Weight 11.45 Pounds
        • _x000D_
      • Amperage Rating 21.7 Amps High 17.1 Amps Low
        • _x000D_
      • Average Rated Life 49930 Hours
        • _x000D_
      • Beam Pattern Spot
        • _x000D_
      • Bezel Material Billet Machined Aluminum
        • _x000D_
      • Brightness 32070 Lumens High 25610 Lumens Low
        • _x000D_
      • Description Arc Spot Clear
        • _x000D_
      • Housing Color Black
        • _x000D_
      • Housing Material Aircraft Grade Aluminum With Mil-Spec Hard Anodize
        • _x000D_
      • Lens Color Clear
        • _x000D_
      • Lens Material Hardcoated Polycarbonate
        • _x000D_
      • Light Quantity 1
        • _x000D_
      • Lighting Modes High Beam Low Beam
        • _x000D_
      • Lighting Quantity 18
        • _x000D_
      • Lighting Technology LED
        • _x000D_
      • Lighting Type Forward Projecting
        • _x000D_
      • Mounting Hardware Description Mounting Brackets
        • _x000D_
      • Mounting Hardware Included Yes
        • _x000D_
      • Mounting Hardware Material Stainless Steel
        • _x000D_
      • Overvoltage Protection Built-In
        • _x000D_
      • Product Type OnX6 Plus 30 Inch Arc LED Light Bar
        • _x000D_
      • Wattage 278 Watts High 222 Watts Low
        • _x000D_
      • Wiring Harness Included No
        • _x000D_
      • Standards Exceeds MIL-STD810G Mil-Spec Testing
        • _x000D_
      • Impact Resistance IK10 Compliant Mechanical Impact Testing
        • _x000D_
      • Water Resistance IP69K Waterproof Up To 9 Feet And Pressure Washable
        • _x000D_
      • Fits Universal Some Adaptation May Be Required
        • _x000D_

      Description

      High-Performance LED Light Bar. The Baja Designs 30-Inch OnX6 Arc LED Light Bar with a High Speed Spot Beam is engineered to deliver superior illumination for off-road and trail driving. This light bar projects a powerful and focused spot beam that enhances visibility and trail recognition during night driving, significantly improving safety and driver confidence.

      _x000D__x000D_

      Construction and Appearance. Crafted from aircraft-grade aluminum with a military-spec hard anodized finish, this light bar is designed for durability and corrosion resistance. It features a billet machined aluminum bezel and a hardcoated polycarbonate clear lens, all finished in sleek black to complement any vehicle with a rugged, high-quality look.

      _x000D__x000D_

      Installation. The light bar includes stainless steel mounting brackets for easy and secure mounting. Installation is straightforward and typically requires no drilling, simplifying the upgrade process for most applications.

      _x000D__x000D_

      Warranty. This product comes with a limited lifetime warranty, ensuring long-term reliability and customer protection.

      _x000D__x000D_

      Application. Fits universal vehicles with some adaptation potentially required, suitable for a wide range of automotive and off-road uses.

      Baja Designs 523001

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 1 Hour

      Difficulty Level:

      Light to Moderate mechanical skill required.

      Installation Guides

      What's in the Box

      • (1) LED Light Bar
      • (1) Instruction Manual
      • (1) Mounting Hardware
