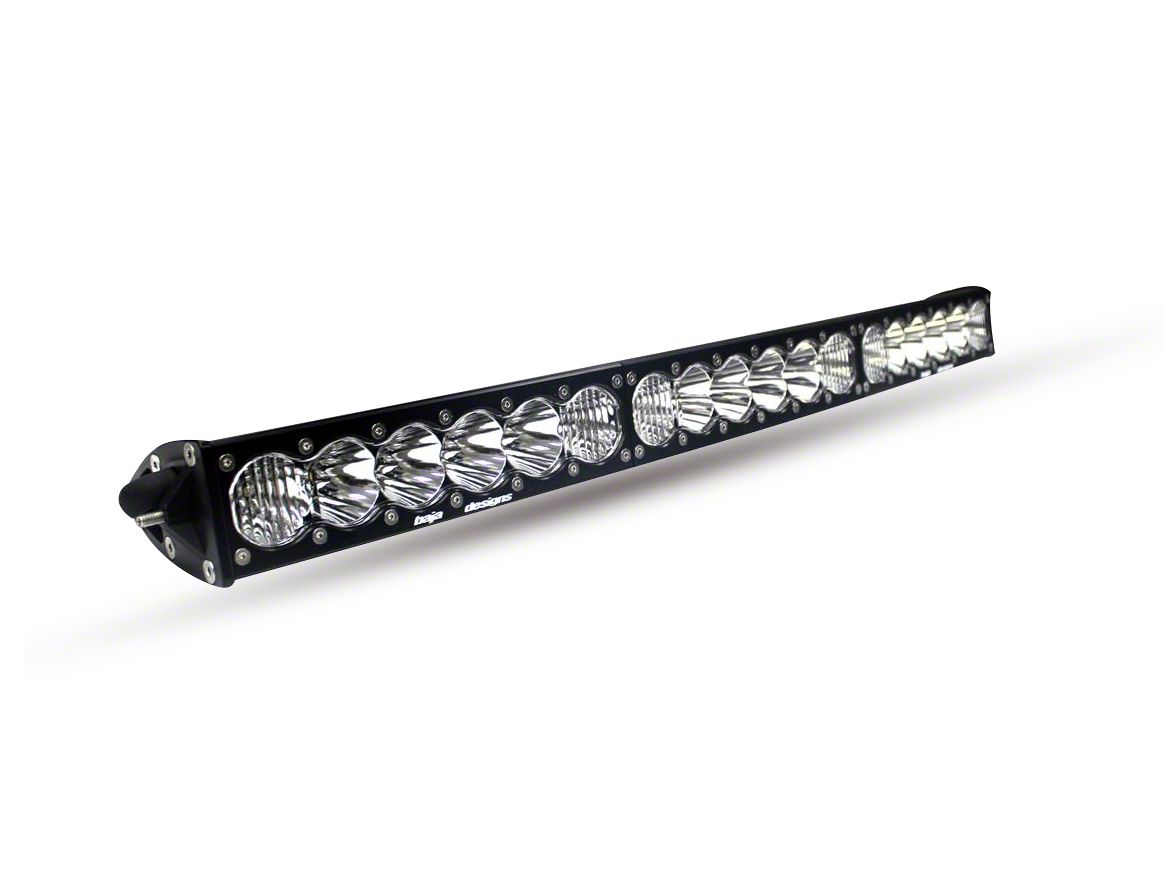

Baja Designs 30-Inch OnX6 Arc LED Light Bar; Driving/Combo Beam (Universal; Some Adaptation May Be Required)
Item T535504
Our Price
$1,338.95 each
Military, Medical & First Responders
$66.95 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Depth 4.29 Inches _x000D_
- Height 2.69 Inches _x000D_
- Length 30 Inches _x000D_
- Weight 11.45 Pounds _x000D_
- Amperage Rating 21.7 Amps High, 17.1 Amps Low _x000D_
- Average Rated Life 49,930 Hours _x000D_
- Beam Pattern Driving Combo _x000D_
- Bezel Material Billet Machined Aluminum _x000D_
- Brightness 32,070 Lumens High, 25,610 Lumens Low _x000D_
- Description Arc Driving Combo Clear _x000D_
- Housing Color Black _x000D_
- Housing Material Aircraft Grade Aluminum with Mil-Spec Hard Anodize _x000D_
- Lens Color Clear _x000D_
- Lens Material Hardcoated Polycarbonate _x000D_
- Light Quantity 1 _x000D_
- Lighting Modes High Beam, Low Beam _x000D_
- Lighting Quantity 18 _x000D_
- Lighting Technology LED _x000D_
- Lighting Type Forward Projecting _x000D_
- Mounting Hardware Description Mounting Brackets _x000D_
- Mounting Hardware Included Yes _x000D_
- Mounting Hardware Material Stainless Steel _x000D_
- Overvoltage Protection Built-In _x000D_
- Product Type OnX6+ 30 Inch Arc LED Light Bar _x000D_
- Wattage 278 Watts High, 222 Watts Low _x000D_
- Wiring Harness Description Hi-Low Dongle _x000D_
- Wiring Harness Included No _x000D_
- Standards Compliance Durability Exceeds MIL-STD810G Mil-Spec Testing _x000D_
- Standards Compliance Impact Resistance IK10 Compliant Mechanical Impact Testing _x000D_
- Standards Compliance Water Resistance IP69K Waterproof Up To 9 Feet and Pressure Washable _x000D_
- Fits Universal - Some Adaptation May Be Required _x000D_
| Brand | Baja Designs |
| Light Bar Width | 30 to 39 Inch |
Description
High-Performance LED Light Bar. The Baja Designs 30-Inch OnX6 Arc LED Light Bar with Driving/Combo Beam provides exceptional illumination for off-road and utility vehicles. Its combined driving and combo beam pattern enhances trail visibility, improving safety and navigation during nighttime driving or in adverse weather conditions.
_x000D_Construction and Appearance. Constructed from aircraft-grade aluminum with a mil-spec hard anodize finish, this light bar is designed for durability and long-lasting performance. It features a black housing with a billet machined aluminum bezel and a clear, hardcoated polycarbonate lens, blending ruggedness with a sleek look.
_x000D_Installation. Installation is simple and convenient, utilizing included stainless steel mounting brackets. No drilling is required, making the process easier for most users.
_x000D_Warranty. This product is backed by a limited lifetime warranty for added peace of mind.
_x000D_Application. Designed to fit universal applications; some adaptation may be necessary.
Baja Designs 523003
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) 30" LED Light Bar
- (1) Mounting Hardware
