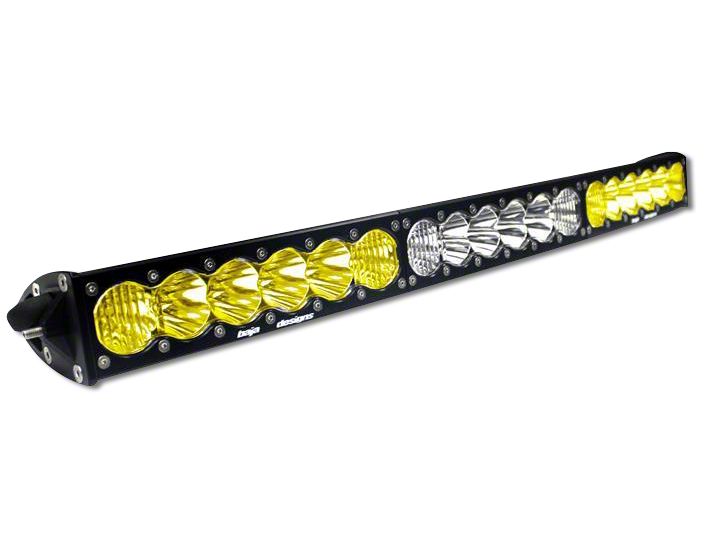

Baja Designs 30-Inch OnX6 Arc Amber/White LED Light Bar; Dual Control (Universal; Some Adaptation May Be Required)

Item T535505
Product Image
162 Reviews of Baja Designs
Our Price

$1,390.95 each

Military, Medical & First Responders $69.55 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Depth 4.29 Inches
        • _x000D_
      • Height 2.69 Inches
        • _x000D_
      • Length 30 Inches
        • _x000D_
      • Weight 11.45 Pounds
        • _x000D_
      • Average Rated Life 49,930 Hours
        • _x000D_
      • Beam Pattern Driving/Combo
        • _x000D_
      • Bezel Material Billet Machined Aluminum
        • _x000D_
      • Brightness 28,938 Lumens High, 23,150 Lumens Low
        • _x000D_
      • Description Arc, Driving/Combo, Amber/Clear
        • _x000D_
      • Housing Color Black
        • _x000D_
      • Housing Material Aircraft Grade Aluminum With Mil-Spec Hard Anodize
        • _x000D_
      • Lens Color Amber/Clear
        • _x000D_
      • Lens Material Hardcoated Polycarbonate
        • _x000D_
      • Light Quantity 1
        • _x000D_
      • Lighting Modes High Beam/Low Beam
        • _x000D_
      • Lighting Quantity 18
        • _x000D_
      • Lighting Technology LED
        • _x000D_
      • Lighting Type Forward Projecting
        • _x000D_
      • Mounting Hardware Description Mounting Brackets
        • _x000D_
      • Mounting Hardware Included Yes
        • _x000D_
      • Mounting Hardware Material Stainless Steel
        • _x000D_
      • Overvoltage Protection Built-In
        • _x000D_
      • Product Type OnX6+ 30 Inch Arc Dual Control LED Light Bar
        • _x000D_
      • Wiring Harness Description Hi-Low Dongle
        • _x000D_
      • Wiring Harness Included No
        • _x000D_
      • Standards And Compliance Exceeds MIL-STD810G, IK10 Compliant, IP69K Rated
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required
        • _x000D_

      Description

      Dual Control LED Light Bar. The Baja Designs 30-Inch OnX6 Arc Amber/White LED Light Bar provides advanced lighting performance with the capability to independently control the inner and outer sections. This design allows flexible use of both amber and white light in one versatile package, perfect for enhancing visibility in various driving or off-road conditions.

      _x000D__x000D_

      Construction and Appearance. Crafted from aircraft grade aluminum with a mil-spec hard anodize finish, the light bar is durable and stylish with a black housing and billet machined aluminum bezel. The hardcoated polycarbonate lens resists damage and maintains clarity, delivering a sleek yet rugged look.

      _x000D__x000D_

      Installation. Installation requires basic wiring knowledge and uses included stainless steel mounting brackets. No drilling is necessary, ensuring straightforward installation for most users familiar with automotive electrical systems.

      _x000D__x000D_

      Warranty. This product comes with a limited lifetime warranty, providing long-term purchase protection.

      _x000D__x000D_

      Application. Fits universal applications; some adaptation may be required.

      Baja Designs 523003DC

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 1 Hour

      Difficulty Level:

      Light to Moderate mechanical skill required.

      Installation Guides

      What's in the Box

      • (1) LED Light Bar
      • (1) Installation Hardware
