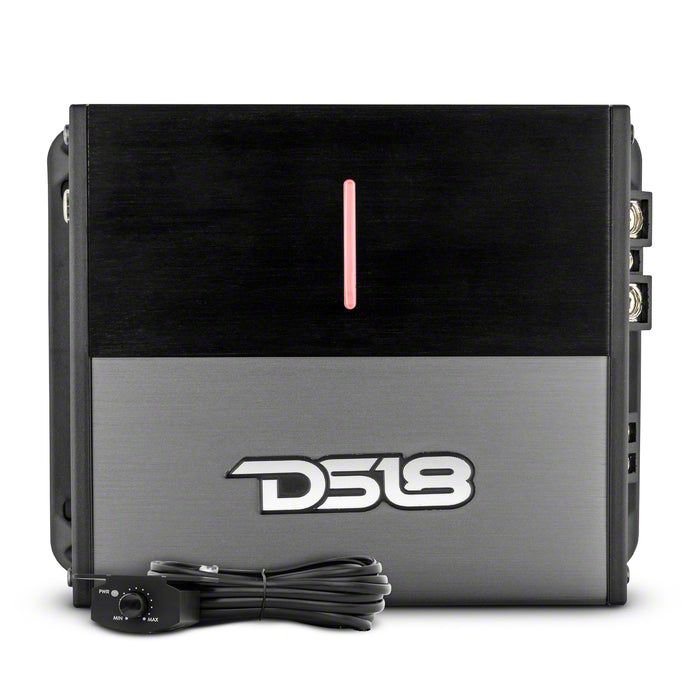

DS18 ION Compact Full Range 1-Channel Amplifier; 600 Watts (Universal; Some Adaptation May Be Required)
Item S197556
Our Price
$203.95
Military, Medical & First Responders
$10.20 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- _x000D_
- 1 Channel Full Range _x000D_
- Class D _x000D_
- 1 - 4 Ohm Stable _x000D_
- 600 Watts RMS @ 1 Ohm _x000D_
- Power / Clip / Protection Indicator _x000D_
- Compact Design _x000D_
- Frequency Response 10Hz-20KHz _x000D_
- Signal To Noise Ratio >95dB _x000D_
- Efficiency @ 4 Ohm 88% _x000D_
- Damping Factor 210 _x000D_
- Input Impedance 27K Ohms _x000D_
- Total Harmonic Distortion (THD) 0.01% _x000D_
- Low Level Input Range 0.2-6V _x000D_
- High Level Input Yes _x000D_
- Selectable X-Over Band-Pass _x000D_
- X-Over Filter Range HP: 15Hz-1KHz / LP: 40Hz-20KHz _x000D_
- Bass Boost Range 0~12dB _x000D_
- Bass Boost Frequency 45Hz _x000D_
- Amplifier Class Digital _x000D_
- Amplifier Type Full-Range Monoblock _x000D_
- Number Of Channels 1 _x000D_
- Minimum Impedance 1 Ohm _x000D_
- LED Indicator Power / Protect / Clipping _x000D_
- Power Input Terminal Size 4 AWG _x000D_
- Fuse Size 80A (External) _x000D_
- Remote Level Control Yes _x000D_
- Cooling Fan No _x000D_
- Thermal Protection Yes _x000D_
- Overload Protection Yes _x000D_
- DC Output Protection Yes _x000D_
- Short Circuit Output Protection Yes _x000D_
- Voltage Input Protection Yes _x000D_
- Clipping Protection Yes _x000D_
- Body Color / Finish Aluminum Black / Silver _x000D_
- Hi-Level Speaker Connector Yes _x000D_
- Tiffany RCA Terminal Yes _x000D_
- LED Clip Indicator Yes _x000D_
- High Efficiency Micro Digital Design Yes _x000D_
- Overall Length 6.14" / 156mm _x000D_
- Overall Width 4.72" / 120mm _x000D_
- Overall Height 2" / 52mm _x000D_
- Heatsink Length 4.84" / 123mm _x000D_
- Gross Single Unit Weight 0.7 Kg _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
Description
Full-Range 1-Channel Amplifier. The DS18 ION Compact Full Range 1-Channel Amplifier delivers powerful, clear audio amplification with up to 600 watts RMS at 1 ohm. This amplifier is designed for enhancing sound systems, providing a compact and efficient solution for driving subwoofers or full-range speakers with high fidelity and reliability.
_x000D__x000D_Construction and Appearance. Built with a durable aluminum black and silver finish, the amplifier features a robust PCB with protective coating against moisture corrosion and bonded components for vibration resistance. Its compact design includes thermal and overload protections with LED indicators for power, clipping, and protection status.
_x000D__x000D_Installation. Installation is straightforward with no need for drilling, thanks to its compact form factor and standard 4 AWG power terminals. The amplifier integrates easily into existing audio systems with both high and low-level inputs and includes a remote level control for enhanced usability.
_x000D__x000D_Warranty. This amplifier comes with a 2-year warranty, ensuring quality and reliability for the user.
_x000D__x000D_Application. Fits universally; some adaptation may be required.
DS18 ION600.1D
