Installation Time
(approx) 1 Hour
Difficulty Level:
Simple installation for anyone.
FREE 1 to 3-Day Delivery on Orders $149+ Details

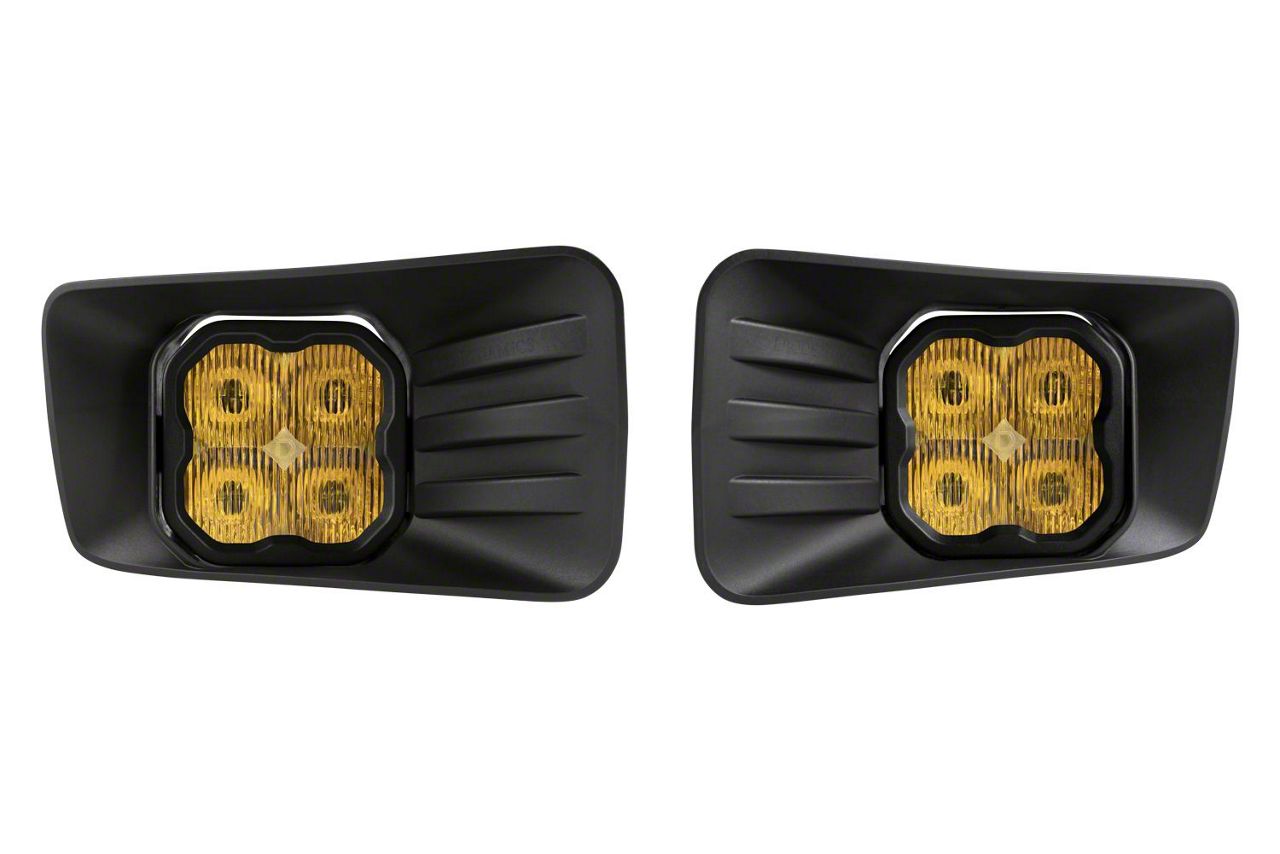

Diode Dynamics SS3 Pro Type CH LED Fog Light Kit; Yellow SAE Fog (07-15 Silverado 1500)Find parts that fit my vehicle
Item S160702
Our Price
$519.95 kit
Military, Medical & First Responders
$26.00 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Item Options
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Advanced TIR Optics Provide High Efficiency And Focus _x000D_
- SAE-Compliant Road-Legal Output _x000D_
- Includes One-Piece Molded Bezel, For Factory-Style Appearance _x000D_
- Plug And Play, No Modification Needed _x000D_
- Durable Powdercoated Aluminum Housing _x000D_
- Engineered And Assembled In USA _x000D_
- Peak Beam Intensity Of 11,900 Candela _x000D_
- Illuminance Of 119 Lux At 10 Meters _x000D_
- Measured Output Of 3,000 Lumens _x000D_
- Raw Output Of 5,796 Lumens _x000D_
- Main Beam Power Consumption Of 36 Watts _x000D_
- Main Beam Current Draw 2.7 Amps At 12.8 Volts _x000D_
- Backlight Power Consumption 0.4 Watts _x000D_
- Backlight Current Draw 0.03 Amps At 12.8 Volts _x000D_
- Operating Voltage 9-30 Volts _x000D_
- Beam Angle Fog, 80°x8° _x000D_
- Polarity Specific _x000D_
- Operating Temperature Range -40C To 85C (-40F To 185F) _x000D_
- Uses Luxeon Z ES And Cree XP-L HI LED Emitters _x000D_
- Polycarbonate Lens And Aluminum Casting With Rubber Gasket _x000D_
- Passive Cooling With Pin-Fin Heatsink _x000D_
- IP69K Waterproof Rating _x000D_
- Meets SAE J575 Durability And SAE J583 Foglamp Beam Pattern Standards _x000D_
- Deutsch DT Connector Input _x000D_
- Weight Approximately 2.075 Pounds Per Pod _x000D_
- Includes Two Pods, Two Type CH Brackets, Wiring Adapters, Backlight Tap Wire Kits, T-Taps, Zip Ties, And Mounting Hardware _x000D_
- Fits 07-15 Silverado 1500 _x000D_
| Brand | Diode Dynamics |
| Fog Light Output Type | LED |
Description
High-Performance Lighting. The Diode Dynamics SS3 Pro Type CH LED Fog Light Kit; Yellow SAE Fog enhances vehicle visibility by delivering powerful, focused fog light output. Designed for both function and style, it replaces factory fog lights with highly efficient LED pods that produce bright yellow light, ideal for cutting through fog and severe weather.
_x000D__x000D_Construction and Appearance. Constructed with durable powder-coated aluminum housing and a polycarbonate lens, this fog light kit features advanced TIR (Total Internal Reflection) optics for superior beam focus. Its one-piece molded bezel ensures a factory-style look, while the robust design offers passive cooling and an IP69K waterproof rating for long-lasting performance.
_x000D__x000D_Installation. Installation is straightforward and requires no modifications; it is a direct bolt-in replacement using included mounting brackets and wiring adapters. The process can typically be completed within an hour without the need for drilling.
_x000D__x000D_Warranty. This product is backed by a limited lifetime warranty, ensuring reliable, long-term use.
_x000D__x000D_Application. Specifically designed to fit 07-15 Silverado 1500 models, providing a seamless upgrade to the original factory fog lights.
Diode Dynamics DD7306
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (2) SS3 3-Inch Standard LED Pods
- (2) Type CH Brackets
- Hardware
- Installation Guide
