Installation Time
(approx) 45 Minutes
Difficulty Level:
Simple installation for anyone.
FREE 1 to 3-Day Delivery on Orders $149+ Details

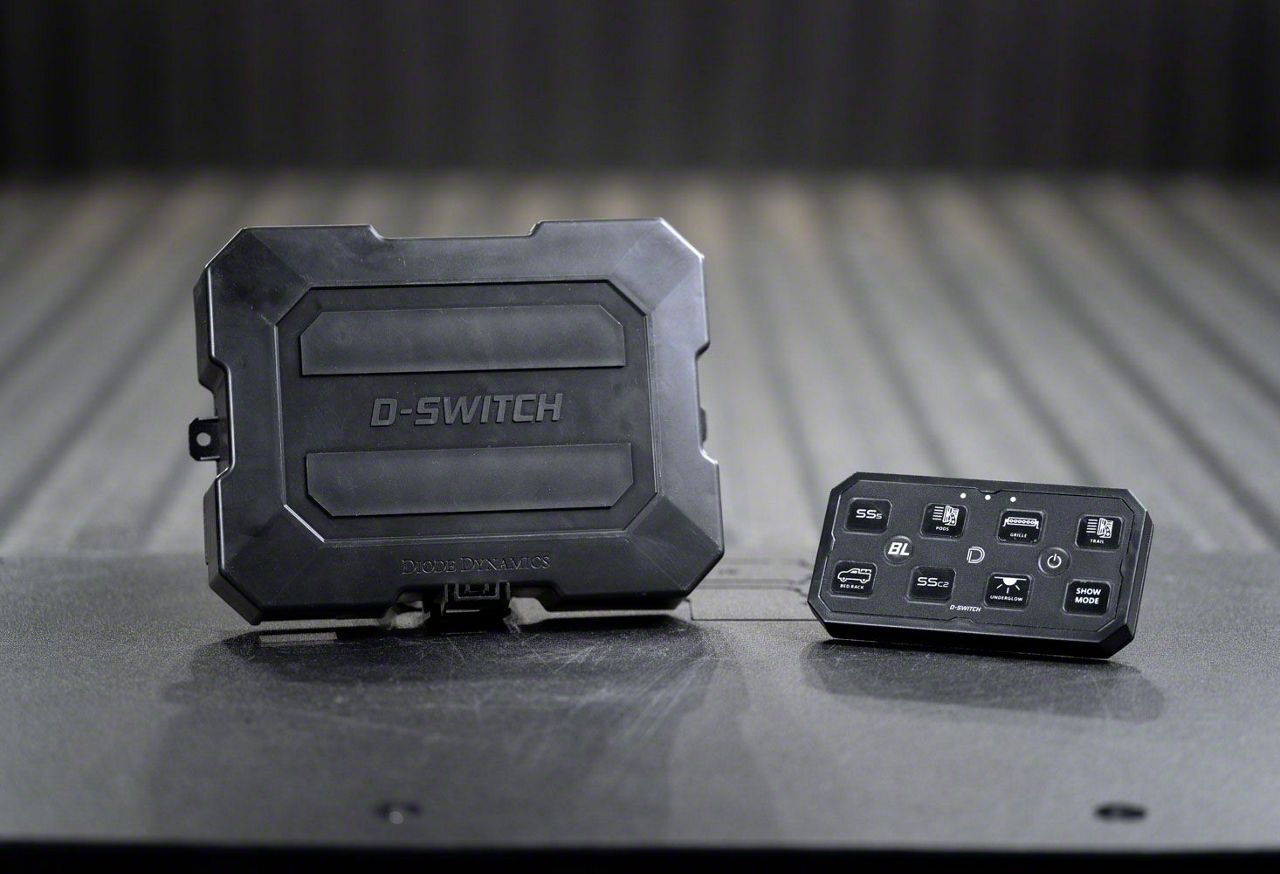

Diode Dynamics D-Switch 8-Channel Switch Panel (Universal; Some Adaptation May Be Required)
Item S205066
Our Price
$599.95 each
Military, Medical & First Responders
$30.00 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- _x000D_
- Group and control multiple outputs with a single button. _x000D_
- Dedicated backlight channel to independently control your accent lighting. _x000D_
- Fast, responsive Bluetooth app with no lagging or loading screens. _x000D_
- Solid-state, fully encapsulated design for extreme durability. _x000D_
- Three trigger wires for OEM-like control through vehicle signals. _x000D_
- Engineered and assembled in the USA. _x000D_
- Channels 1 - 4: 15A each, Channels 5 - 8: 30A each, Backlight: 15A total. _x000D_
- Maximum current capacity of 125A. _x000D_
- Operating voltage range of 9 to 16 volts DC. _x000D_
- Wire sizes: 4AWG for battery, 22AWG for sensors, 26AWG for controller. _x000D_
- Operating temperature range from -40°C to 120°C (-40°F to 250°F). _x000D_
- Materials include FR4 PCB, aluminum casting, and ASA plastic. _x000D_
- Passive cooling system with pin-fin heatsink. _x000D_
- IP67 weatherproof rating for electronics. _x000D_
- Controller dimensions: 5.06" x 2.66" x 0.45"; Hub dimensions: 8.33" x 6.26" x 1.79". _x000D_
- Includes dedicated ignition wire and night mode wire for automatic control. _x000D_
- Fast, modular mounting options allow for easy installation. _x000D_
- 3-year limited warranty included. _x000D_
- Universal fit; some adaptation may be required based on vehicle setup. _x000D_
Description
Advanced Switch Control. The Diode Dynamics D-Switch 8-Channel Switch Panel offers full, customizable control over your vehicle’s 12V accessories, especially lighting setups. It enables grouping multiple outputs under a single button, customizing functions, and managing backlighting independently, enhancing both convenience and functionality in vehicle accessory management.
_x000D__x000D_Construction and Appearance. Featuring a solid-state, fully encapsulated design, this switch panel uses durable materials including FR4 PCB, aluminum casting, and ASA plastic. It incorporates a passive cooling system with a pin-fin heatsink and holds an IP67 weatherproof rating for reliable performance and protection against environmental factors. The compact controller and hub showcase precise machining and a rugged texture well-suited for automotive use.
_x000D__x000D_Installation. Installation generally takes 30 to 60 minutes and requires only basic tools. The modular mounting design eliminates the need for drilling, simplifying integration into most vehicle setups.
_x000D__x000D_Warranty. This product comes with a 3-year limited warranty, providing peace of mind and protection against defects.
_x000D__x000D_Application. Designed for universal use, the D-Switch may require some adaptation depending on your vehicle’s configuration and accessory setups.
Diode Dynamics DD8373
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Switch Panel
