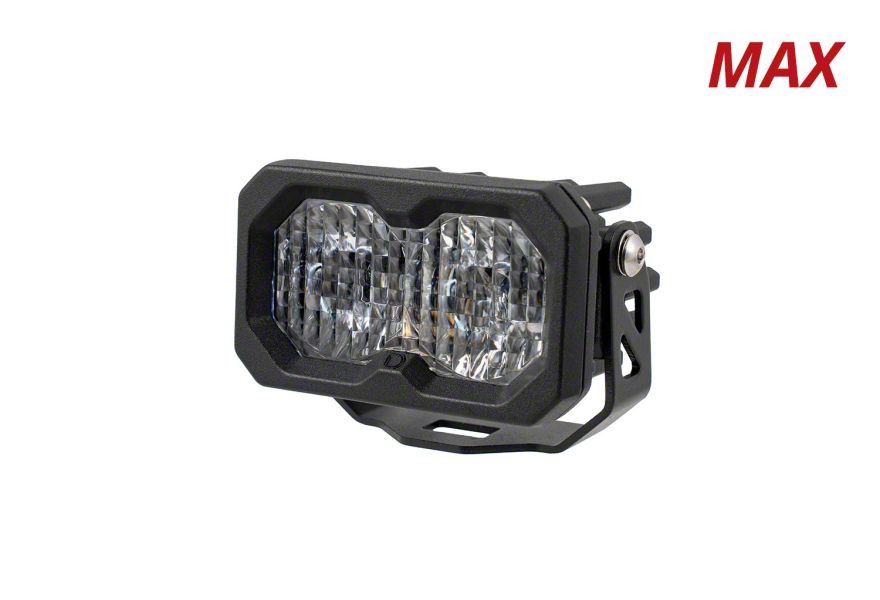

Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight; White Spot (Universal; Some Adaptation May Be Required)
Item S216650
Our Price
$239.95
Military, Medical & First Responders
$12.00 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact Design For Tight Mounting Spots _x000D_
- Patented TIR Optics For Maximum Light Output _x000D_
- Up To 95% More Power Than C2 1.0 _x000D_
- Available In Sport, Pro, And 3900-Lumen Max Power Levels _x000D_
- Customizable Modular Mounting For Height And Angle Adjustment _x000D_
- Link Multiple Pods With CrossLink Technology _x000D_
- Limited Lifetime Warranty _x000D_
- Made In USA With Global Materials _x000D_
- Backlight Feature Available In Red Or Amber _x000D_
- Swappable Optics And Colors Using The Same Cool White LED Chips For White And Yellow Pods _x000D_
- Passive Cooling With Pin-Fin Heatsink _x000D_
- Operating Voltage Range: 9-30V _x000D_
- Operating Temperature Range: -40°C To 85°C (-40°F To 185°F) _x000D_
- IP69K Waterproof Rating With High Pressure Resistance _x000D_
- Complies With SAE J575 Durability Standards _x000D_
- Compact Dimensions: 2 X 3.3 X 2.4 Inches _x000D_
- Weight Approximately 0.55 Pounds Per Unit _x000D_
- Connector: Deutsch DT Input _x000D_
- Driver Type: Constant Current _x000D_
- Power Consumption: Main Beam 30W, Backlight 0.38W _x000D_
- Color Temperature: 6000K White Light _x000D_
- Raw Lumens Up To 3960 For Max Models _x000D_
- Beacon-Like Backlight Illuminates The TIR Optic For A Modern Look _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Rectangle |
| Light Size | 3 to 3.75 Inch |
Description
Powerful LED Lighting. The Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight and White Spot delivers compact yet intense illumination ideal for tight mounting spots on vehicles. Designed for automotive enthusiasts and professionals, this pod produces excellent beam patterns with high lumen output, enhancing visibility and safety across various driving conditions.
_x000D__x000D_Construction and Appearance. Built with a powder-coated aluminum housing and a passive pin-fin heatsink for efficient heat dissipation and durability, this LED pod features a polycarbonate lens sealed with a rubber gasket to ensure waterproof protection. The amber backlight highlights the patented TIR optic, offering a distinctive modern appearance.
_x000D__x000D_Installation. Installation typically takes 30 to 60 minutes using basic tools. The modular mounting system allows adjustment of angle and height with multiple points of customization, generally requiring no drilling or extensive modifications.
_x000D__x000D_Warranty. This product includes a limited lifetime warranty for long-term reliability and performance.
_x000D__x000D_Application. Universal fitment; some adaptation may be necessary.
Diode Dynamics DD8118S
