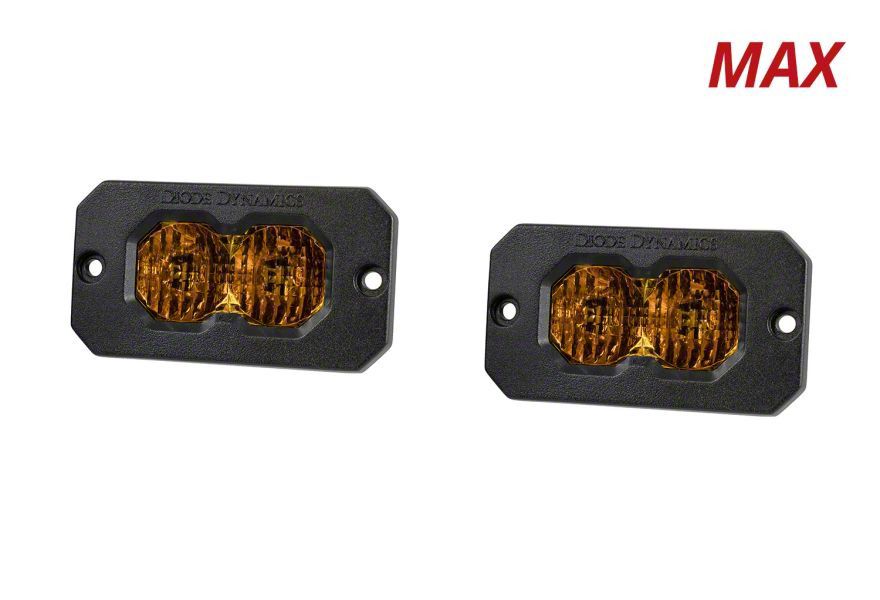

Diode Dynamics Stage Series C2 2.0 Max Flush Mount LED Pod Lights with Amber Backlight; Yellow Flood (Universal; Some Adaptation May Be Required)
Item S216671
Our Price
$479.95
Military, Medical & First Responders
$24.00 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact Design For Tight Mounting Spots _x000D_
- Patented TIR Optics For Maximum Output _x000D_
- Up To 95% More Power Than C2 1.0 _x000D_
- Available In Sport, Pro, And New 3900-Lumen Max Power Levels _x000D_
- Limited Lifetime Warranty _x000D_
- Made In USA With Global Materials _x000D_
- Two Stage Series C2 2.0 LED Pods Included _x000D_
- Two Deutsch-Style Wire Pigtails Included _x000D_
- Two Mounting Brackets And Hardware Included _x000D_
- Raw Lumens: 3,960 Lm _x000D_
- Color Temp (CCT): 3000K _x000D_
- Power (Watts): Main Beam 30, Backlight 0.38 _x000D_
- Operating Voltage: 9-30V _x000D_
- Current (Amps @ 13.2V): Main Beam 2.3, Backlight 0.03 _x000D_
- Polarity Specific _x000D_
- Operating Temperature: -40°C To 85°C (-40°F To 185°F) _x000D_
- LED Emitter: Osram Boost HX _x000D_
- Deutsch DT Input Connector _x000D_
- Constant Current Driver _x000D_
- Polycarbonate Lens, Aluminum Casting, Rubber Gasket Materials _x000D_
- Passive Pin-Fin Heatsink Cooling _x000D_
- SAE J575 Durability Test Compliance _x000D_
- IP69K Waterproof High Pressure Intrusion Rating _x000D_
- Product Dimensions (In): 2.5 X 4.5 X 2.4 _x000D_
- Unit Weight: 0.55 Lb _x000D_
- Product Weight: 1.4 Lb _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Rectangle |
| Light Size | 4 to 4.75 Inch |
Description
High-Performance LED Pods. The Diode Dynamics Stage Series C2 2.0 Max Flush Mount LED Pod Lights with Amber Backlight and Yellow Flood deliver exceptionally powerful lighting in a compact and versatile form factor. Designed to fit tight mounting spaces, these pods enhance visibility for off-road, utility, or auxiliary applications, providing precise and efficient illumination where you need it most.
_x000D__x000D_Construction and Appearance. These LED pods feature a powder-coated aluminum housing for robust durability and excellent heat dissipation. The polycarbonate lens offers clarity and impact resistance, while the rubber gasket ensures a secure waterproof seal. Finished with amber backlight functionality and optically designed TIR lenses, the pods combine modern aesthetics with functional performance.
_x000D__x000D_Installation. The flush mount design simplifies installation on any flat surface and typically requires only basic tools with no complex modifications. Mounting hardware and Deutsch-style wire pigtails are included for a straightforward setup.
_x000D__x000D_Warranty. This product includes a limited lifetime warranty, underscoring its quality and reliability.
_x000D__x000D_Application. Fits universal mounting locations; some adaptation may be required to ensure proper installation and fitment in various vehicle or equipment configurations.
