Find Light Bars & Off-Road Lighting for your Silverado 1500

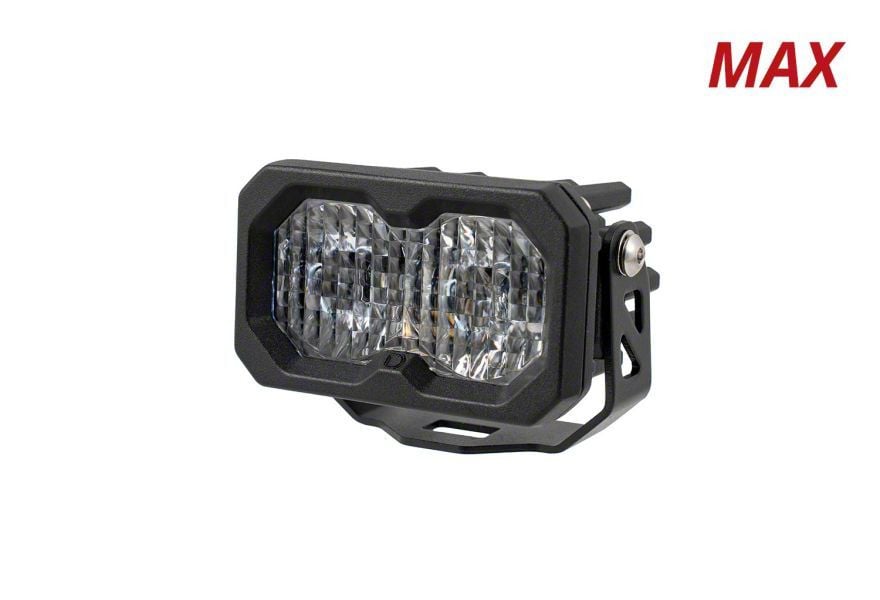

Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight; White SAE Fog/Wide (Universal; Some Adaptation May Be Required)
Item S216678
Our Price
$239.95
Military, Medical & First Responders
$12.00 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact Design For Tight Mounting Spots _x000D_
- Patented TIR Optics For Maximum Light Output And Efficiency _x000D_
- Up To 95% More Power Than C2 1.0 _x000D_
- Available In Sport (1,190 Lumens), Pro (3,140 Lumens), And Max (3,960 Lumens) Power Levels _x000D_
- Customizable Mounting With Adjustable Bracket To Dial In Your Setup _x000D_
- Link Multiple Pods With CrossLink Technology For Custom Lightbars _x000D_
- Limited Lifetime Warranty _x000D_
- Made In USA With Global Materials _x000D_
- Raw Lumens: 3,960 Lm _x000D_
- Color Temp (CCT): 6000K _x000D_
- Power (Watts): Main Beam 30, Backlight 0.38 _x000D_
- Operating Voltage: 9-30V _x000D_
- Current (Amps @ 12.8V): Main Beam 2.3, Backlight 0.03 _x000D_
- Polarity Specific _x000D_
- Operating Temperature: -40C To 85C (-40F To 185F) _x000D_
- LED Emitter: Osram Boost HX _x000D_
- Connector: Deutsch DT Input _x000D_
- Driver Features: Constant Current _x000D_
- Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket _x000D_
- Cooling: Passive, Pin-Fin Heatsink _x000D_
- Compliance Ratings: SAE J575 Durability Test _x000D_
- Intrusion Ratings: IP69K Waterproof, High Pressure Wash _x000D_
- Product Dimensions (In): 2 X 3.3 X 2.4 _x000D_
- Unit Weight (Lb): 0.55 _x000D_
- Product Weight (Lb): 1.4 _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Rectangle |
| Light Size | 3 to 3.75 Inch |
Description
High-Performance Lighting. The Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight and White SAE Fog/Wide beam delivers exceptional illumination to enhance visibility in a variety of automotive lighting applications. Engineered for tight mounting spots, this compact pod light provides focused and powerful light output ideal for fog or wide-area illumination.
_x000D__x000D_Construction and Appearance. Built with a durable aluminum casting and polycarbonate lens, this LED pod features a powdercoated finish designed to efficiently dissipate heat. A rubber gasket ensures water and dust resistance, while a pin-fin heatsink offers passive cooling for reliable operation under harsh environmental conditions.
_x000D__x000D_Installation. Installation requires basic tools and typically takes between 30 to 60 minutes. The modular mounting bracket allows for adjustable angles and heights to tailor fitment, often without the need for extensive modifications or drilling.
_x000D__x000D_Warranty. This product is backed by a limited lifetime warranty, providing long-term reliability and customer confidence.
_x000D__x000D_Application. Designed for universal fitment; some adaptation may be necessary depending on mounting surfaces and vehicle configurations.
