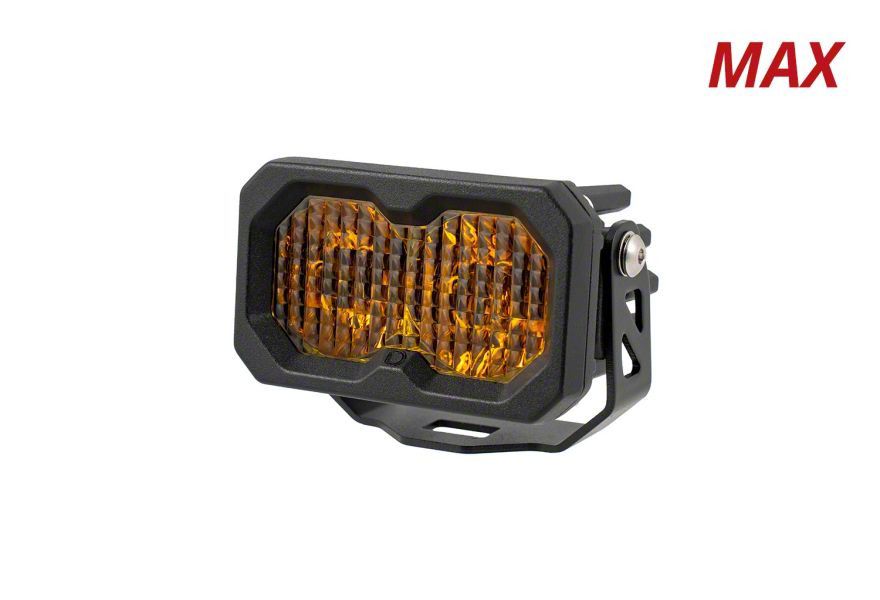

Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight; Yellow Driving (Universal; Some Adaptation May Be Required)
Item HG66013
Our Price
$239.95
Military, Medical & First Responders
$12.00 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact Design For Tight Mounting Spots _x000D_
- Patented TIR Optics For Maximum Output _x000D_
- Up To 95% More Power Than C2 1.0 _x000D_
- Available In Sport, Pro, And New 3900-Lumen Max Power Levels _x000D_
- Customizable Mounting To Dial In Your Setup _x000D_
- Link Multiple Pods With CrossLink Technology _x000D_
- Limited Lifetime Warranty _x000D_
- Made In USA With Global Materials _x000D_
- Raw Lumens: 3,960 Lm _x000D_
- Color Temp: 3000K Yellow _x000D_
- Power: Main Beam 30 Watts; Backlight 0.38 Watts _x000D_
- Operating Voltage: 9-30V _x000D_
- Current: Main Beam 2.3 Amps @ 12.8V; Backlight 0.03 Amps _x000D_
- Polarity Specific _x000D_
- Operating Temperature Range -40C To 85C (-40F To 185F) _x000D_
- LED Emitter: Osram Boost HX _x000D_
- Connector: Deutsch DT Input _x000D_
- Driver Features: Constant Current _x000D_
- Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket _x000D_
- Cooling: Passive, Pin-Fin Heatsink _x000D_
- Compliance: SAE J575 Durability Test _x000D_
- Waterproof Rating: IP69K High Pressure _x000D_
- Product Dimensions: 2 X 3.3 X 2.4 Inches _x000D_
- Unit Weight: 0.55 Lb _x000D_
- Product Weight: 1.4 Lb _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Rectangle |
| Light Size | 3 to 3.75 Inch |
Description
High-Performance LED Lighting. The Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight and Yellow Driving offers powerful, compact illumination engineered for a variety of automotive applications. Designed to deliver 3,960 raw lumens using advanced patented TIR optics, this LED pod provides enhanced visibility in tight mounting locations such as roof racks, bumpers, and A-pillars.
_x000D__x000D_Construction and Appearance. The LED pod features a durable polycarbonate lens combined with a powder-coated aluminum housing that effectively dissipates heat through a passive pin-fin heatsink. The rugged design is sealed with a rubber gasket for moisture protection, and the amber backlight complements the TIR optic for a distinct and modern look.
_x000D__x000D_Installation. Installation is straightforward, requiring only basic tools with minimal time needed and often no drilling. Customizable mounting hardware allows precise adjustment of the pod’s angle and height to suit different vehicle setups.
_x000D__x000D_Warranty. This product includes a limited lifetime warranty, ensuring long-term reliability and customer satisfaction.
_x000D__x000D_Application. Designed for universal fitment; some adaptation may be necessary depending on the specific vehicle or mounting location.
