Find Light Bars & Off-Road Lighting for your Sierra 2500

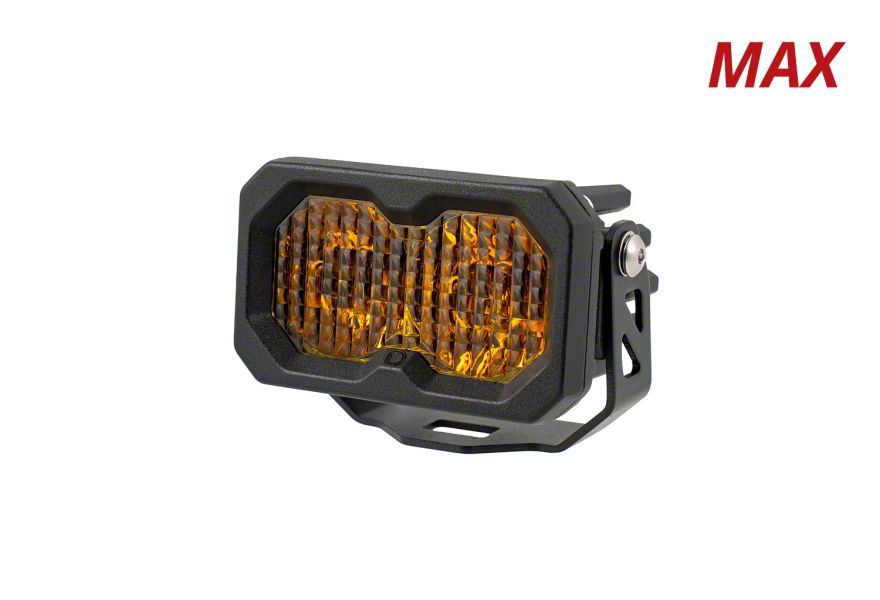

Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight; Yellow SAE Fog/Wide (Universal; Some Adaptation May Be Required)
Item HG66009
Our Price
$239.95
Military, Medical & First Responders
$12.00 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact Design For Tight Mounting Spots _x000D_
- Patented TIR Optics For Maximum Output, Improved Efficiency, And Reduced Glare _x000D_
- Up To 95% More Power Than C2 1.0 _x000D_
- Available In Sport, Pro, And 3900-Lumen Max Power Levels _x000D_
- Customizable Mounting To Dial In Your Setup _x000D_
- Link Multiple Pods With CrossLink Technology _x000D_
- Limited Lifetime Warranty _x000D_
- Made In USA With Global Materials _x000D_
- Raw Lumens: 3,960 lm _x000D_
- Color Temp (CCT): 3000K _x000D_
- Power (Watts): Main Beam 30, Backlight 0.38 _x000D_
- Operating Voltage: 9-30V _x000D_
- Current (Amps @ 12.8V): Main Beam 2.3, Backlight 0.03 _x000D_
- Polarity Specific _x000D_
- Operating Temperature -40°C To 85°C (-40°F To 185°F) _x000D_
- LED Emitter: Osram Boost HX _x000D_
- Connector(s): Deutsch DT Input _x000D_
- Driver Features: Constant Current _x000D_
- Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket _x000D_
- Cooling: Passive, Pin-Fin Heatsink _x000D_
- Compliance Ratings: SAE J575 Durability Test _x000D_
- Intrusion Ratings: IP69K Waterproof, High Pressure _x000D_
- Product Dimensions (In): 2 X 3.3 X 2.4 _x000D_
- Unit Weight (Lb): 0.55 _x000D_
- Product Weight (Lb): 1.4 _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Rectangle |
| Light Size | 3 to 3.75 Inch |
Description
High-Performance Lighting. The Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight; Yellow SAE Fog/Wide delivers intense, focused illumination optimized for fog and wide-area lighting. Designed for versatility and precision, this pod enhances visibility in adverse conditions, making it a valuable addition for both on-road and off-road use.
_x000D__x000D_Construction and Appearance. Manufactured with a durable aluminum casting housing and polycarbonate lens, this LED pod features a powder-coated finish for enhanced corrosion resistance. The lens is complemented by a rubber gasket to ensure weatherproofing, while the amber backlight provides a distinctive accent. The passive pin-fin heatsink design allows effective thermal management for sustained performance.
_x000D__x000D_Installation. Installation typically requires 30 to 60 minutes using a basic toolset. The pod includes a mounting bracket with three adjustable points and a Deutsch-style connector for straightforward wiring. In most applications, no drilling is necessary.
_x000D__x000D_Warranty. This product features a limited lifetime warranty guaranteeing material and workmanship integrity.
_x000D__x000D_Application. Fits universal applications; some adaptation may be required depending on mounting location and vehicle configuration.
Diode Dynamics DD8241S
