Find Light Bars & Off-Road Lighting for your F-150

Diode Dynamics SS5 Pro CrossLink Grille Light Bar Kit; Yellow Combo (21-23 F-150, Excluding Raptor)Find parts that fit my vehicle

Item T573665
Product Image
32 Reviews of Diode Dynamics
Our Price

$2,049.95

Military, Medical & First Responders $102.50 Available in AT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle

Item Options

Diode Dynamics SS5 CrossLink Security Hardware Kit
Diode Dynamics SS5 CrossLink Security Hardware Kit
+ $59.95
Yes No
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

      • Bolt-On Fitment On 2021+ Ford F-150
      • Ultra-High Intensity, With Custom-Engineered TIR Optics
      • Selectable Backlight Color, With Eight Color Options
      • Torture-Tested, Heavy-Duty Construction
      • Control Through Factory Aux Switch Bank Using The Included Harness
      • Assembled In USA
      • Single-Piece CNC Aluminum CrossLink For Extreme Rigidity
      • CAD-Designed Application-Specific Brackets Bolt Into Factory Mounting Points
      • Five Linked SS5 LED Pods In Curved Lightbar Configuration
      • Selectable Backlight Controlled By Alternating Power On And Off, No External Controller Needed
      • Combo Beam Pattern Combining Driving And Flood Optics For All-Around Illumination
      • Available In Cool White (6000K) Or Selective Yellow (3000K) Colors
      • Interchangeable Lens Options For Color Or Optic Changes
      • Sport Model Uses Nine High-Intensity LEDs (40W), Pro Model Uses Double Power (90W)
      • Snap-On Covers Available For Dirt And Dust Protection
      • Tested For Operation From -40 To 185 Degrees F, Moisture, Vibration, And Corrosion To SAE Standards
      • Control Using OEM Aux Switch Or Included Toggle Switch Adapter

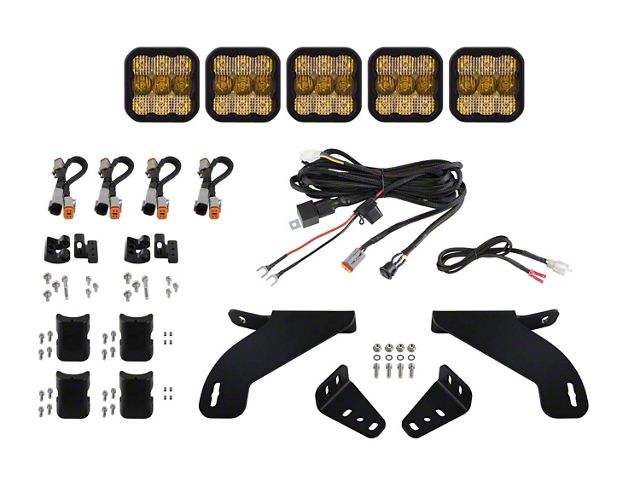

      • Includes Heavy-Duty Steel Brackets, CrossLinks, Pod Harness, Single-Output Harness, And Installation Guide
      • Polarity Specific With Deutsch DT Input Connector
      • IP69K Waterproof Rating With Passive Pin-Fin Heatsink Cooling
      • Fits 21-23 F-150, Excluding Raptor. May Interfere With Part Of Viewing Window On 360 Degree Camera Package, But Camera Still Usable

      Description

      High-Performance Lighting. The Diode Dynamics SS5 Pro CrossLink Grille Light Bar Kit; Yellow Combo provides powerful auxiliary lighting designed for 2021 to 2023 Ford F-150 trucks. This kit includes five linked LED pods mounted in front of the factory grille to improve visibility and road presence with selectable backlight colors and a unique combo beam pattern featuring both driving and flood optics. It's ideal for enhancing night driving and off-road visibility with ease of operation through factory or toggle switches.

      Construction and Appearance. Crafted from heavy-duty steel brackets and CNC-machined aluminum CrossLinks, this kit features durable polycarbonate lenses with aluminum casing and robust rubber gaskets for weatherproof sealing. Its black powder-coated finish resists corrosion and abrasion, while the passive pin-fin heatsink ensures efficient thermal management during extended operation.

      Installation. Installation is straightforward with application-specific CAD-designed brackets that bolt onto factory mounting points without cutting or drilling. Basic tools and the included harness allow a 1-2 hour installation time suitable for do-it-yourselfers or professionals alike.

      Warranty. This light bar kit comes with a limited lifetime warranty covering manufacturing defects and performance issues.

      Application. Specifically designed to fit 2021 to 2023 Ford F-150 trucks, excluding Raptor models, this kit may slightly impede part of the viewing area in trucks equipped with the 360 Degree Camera Package but does not disable camera functionality.

      Diode Dynamics DD7322

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      4.6

      Reviews of Diode Dynamics Lights Products (32)

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My F-150

      • 2.7L V6 EcoBoost - 21, 22, 23
      • 3.0L V6 Power-Stroke - 21
      • 3.3L V6 - 21, 22, 23
      • 3.5L V6 EcoBoost - 21, 22, 23
      • 3.5L V6 EcoBoost Limited - 21, 22, 23
      • 3.5L V6 PowerBoost - 21, 22, 23
      • 5.0L V8 - 21, 22, 23
