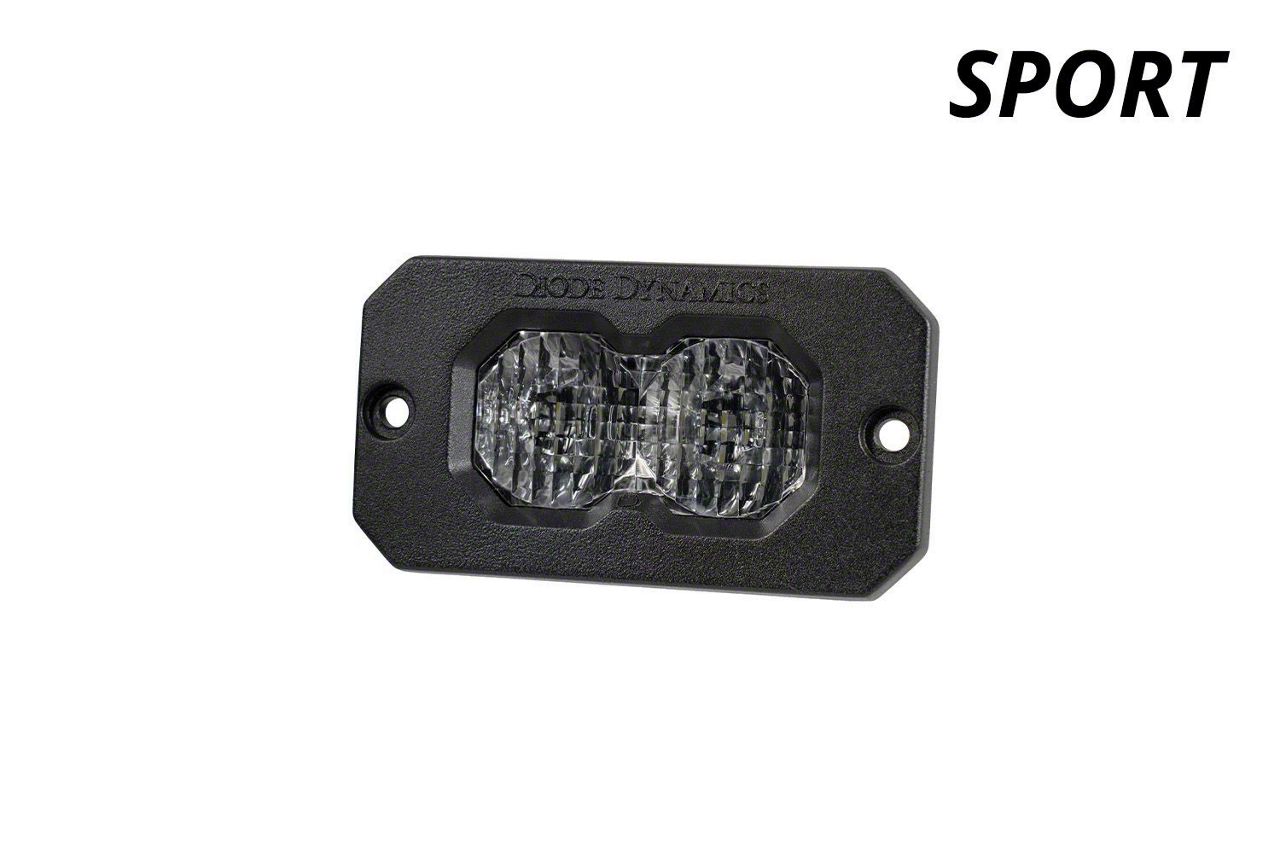

Diode Dynamics Stage Series C2 2.0 Sport Flush Mount LED Pod Light with Red Backlight; White Flood (Universal; Some Adaptation May Be Required)

Item T637105
Our Price

$109.95

Military, Medical & First Responders $5.50 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Ultra-Compact Design For Tight Mounting Spots
      • _x000D_
      • Patented TIR Optics For Maximum Output
      • _x000D_
      • Up To 95% More Power Than C2 1.0
      • _x000D_
      • Available In Sport, Pro, And New 3900-Lumen Max Power Levels
      • _x000D_
      • Limited Lifetime Warranty
      • _x000D_
      • Made In USA With Global Materials
      • _x000D_
      • Red Backlight Provides Low-Power Accent Lighting
      • _x000D_
      • Includes One Stage Series C2 2.0 LED Pod, Deutsch-Style Wire Pigtail, Mounting Bracket And Hardware
      • _x000D_
      • Operating Voltage Range Of 9-30V With Constant Current Driver
      • _x000D_
      • Operating Temperature Range From -40C To 85C (-40F To 185F)
      • _x000D_
      • Waterproof IP69K Rating And SAE J575 Durability Certified
      • _x000D_
      • Passive Pin-Fin Heatsink Cooling System
      • _x000D_
      • Lens Made Of Polycarbonate And Housing Made Of Aluminum Casting With Rubber Gasket
      • _x000D_
      • Peak Beam Intensity Ranges From 750 Cd To 23,000 Cd Depending On Optic And Power Level
      • _x000D_
      • Raw Output Lumens Range From 1,190 Lm To 3,960 Lm
      • _x000D_
      • Color Temperature At 6000K (Cool White)
      • _x000D_
      • Connects Via Deutsch DT Input
      • _x000D_
      • Current Draw At 1.17 Amps At 12.8V For Main Beam And 0.03 Amps For Backlight
      • _x000D_
      • Product Dimensions: 2.5 X 4.5 X 2.4 Inches
      • _x000D_
      • Unit Weight: 0.55 Lb
      • _x000D_
      • Fits Universal; Some Adaptation May Be Required
      • _x000D_

      Description

      HIGH-PERFORMANCE LED LIGHT POD. The Diode Dynamics Stage Series C2 2.0 Sport Flush Mount LED Pod Light with Red Backlight and White Flood delivers concentrated, powerful illumination ideal for enhancing visibility in tight or low-profile spaces. Designed for use on vehicles such as bumpers, roof racks, and trailers, this compact pod provides durable and efficient lighting performance, critical for safe operation in demanding driving or work environments.

      _x000D__x000D_

      CONSTRUCTION AND APPEARANCE. Constructed with a robust aluminum casting housing and finished with a durable powder-coated texture, this pod features a polycarbonate lens sealed by a rubber gasket to ensure waterproof integrity up to IP69K standards. Inside, premium automotive-grade Lumileds LEDs are mounted on a copper-core circuit board for superior thermal management, housed within precision-engineered TIR optics for clean, glare-reduced light output.

      _x000D__x000D_

      INSTALLATION. Installation requires basic tools and typically takes between 30 to 60 minutes. The included flush mount kit facilitates low-profile, secure mounting on flat surfaces without extensive modification, although some adaptation may be necessary depending on the vehicle's mounting configuration.

      _x000D__x000D_

      WARRANTY. This product is backed by a limited lifetime warranty, ensuring long-term reliability and peace of mind for automotive enthusiasts and professionals.

      _x000D__x000D_

      APPLICATION. Designed for universal fitment, this LED pod can be adapted to a wide variety of vehicles and mounting scenarios, making it a versatile lighting solution for both on- and off-road use.

      Diode Dynamics DD8120S
