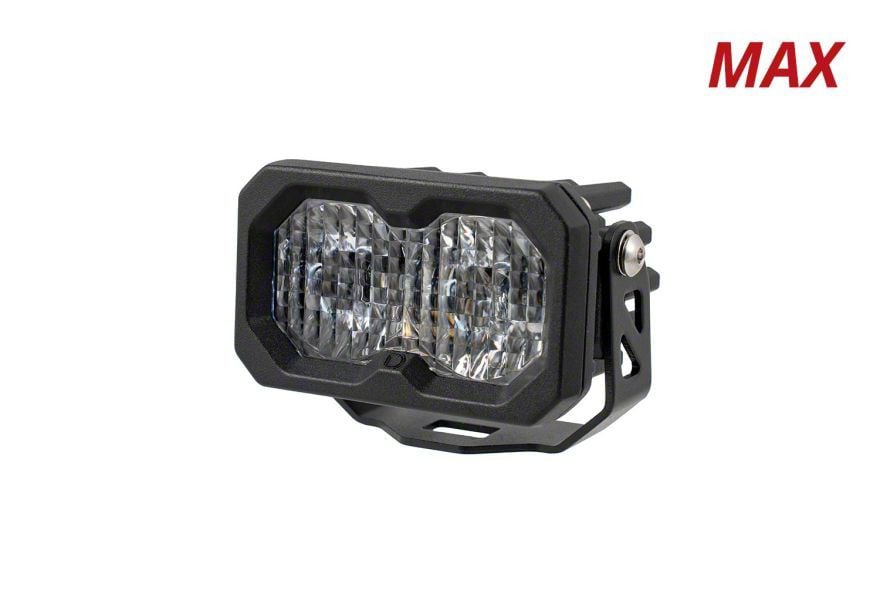

Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Red Backlight; White Flood (Universal; Some Adaptation May Be Required)
Item T637097
Our Price
$239.95
Military, Medical & First Responders
$12.00 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact Design For Tight Mounting Spots _x000D_
- Patented TIR Optics For Maximum Output _x000D_
- Up To 95% More Power Than C2 1.0 _x000D_
- Available In Sport, Pro, And New 3900-Lumen Max Power Levels _x000D_
- Customizable Mounting To Dial In Your Setup _x000D_
- Link Multiple Pods With CrossLink Technology _x000D_
- Limited Lifetime Warranty _x000D_
- Made In USA With Global Materials _x000D_
- Blend Of Width And Distance With Combo/Driving Beam Pattern _x000D_
- Backlight Feature Available In Red Or Amber _x000D_
- Copper-Core Circuit Board Bonded Directly To LED Chips For Improved Thermal Efficiency _x000D_
- Powdercoated Aluminum Housing Redesigned For Enhanced Heat Dissipation _x000D_
- Swappable Optics And Colors With High-Output Cool White LED Chips _x000D_
- Snap-On Covers Available In Multiple Colors Including Amber _x000D_
- Passive Pin-Fin Heatsink Cooling _x000D_
- Constant Current Driver _x000D_
- Polycarbonate Lens With Aluminum Casting And Rubber Gasket _x000D_
- IP69K Waterproof Rating With High-Pressure Intrusion Resistance _x000D_
- Operating Voltage Between 9-30V _x000D_
- Operating Temperature Range From -40C To 85C (-40F To 185F) _x000D_
- Deutsch DT Input Connector _x000D_
- Includes One LED Pod, One Deutsch-Style Wire Pigtail, Mounting Bracket And Hardware _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Rectangle |
| Light Size | 3 to 3.75 Inch |
Description
ADVANCED LED LIGHTING. The Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Red Backlight; White Flood delivers exceptional brightness and precision illumination in a compact 2-inch housing. Ideal for tight mounting locations such as roof racks, bumpers, and roll bars, this pod uses patented TIR optics and powerful Osram HX Boost LEDs to provide a blend of wide and focused light output for enhanced visibility and safer driving in low-light conditions.
_x000D__x000D_CONSTRUCTION AND APPEARANCE. Constructed with a powdercoated aluminum housing, the LED pod ensures robust durability and efficient heat dissipation through a passive pin-fin heatsink design. The lens is made from tough polycarbonate, sealed with a rubber gasket to achieve an IP69K waterproof rating, protecting against water intrusion and harsh environments. Finished with a sleek, modern look, the included red backlight fully illuminates the TIR optic for a distinct and functional accent.
_x000D__x000D_INSTALLATION. Installation is straightforward and typically takes between 30-60 minutes using basic tools. The pod features customizable mounting brackets for precise angling and positioning. The Deutsch-style connector simplifies wiring integration.
_x000D__x000D_WARRANTY. This product comes with a limited lifetime warranty, ensuring long-term reliability and customer satisfaction.
_x000D__x000D_APPLICATION. Designed to fit universally, some adaptation may be necessary to accommodate specific mounting requirements or vehicle configurations.
